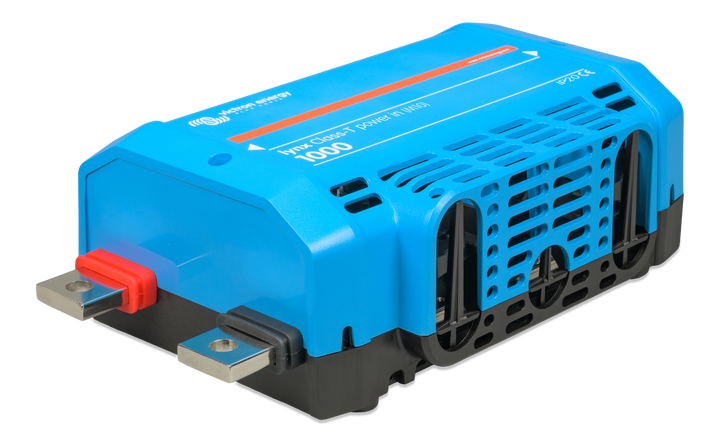

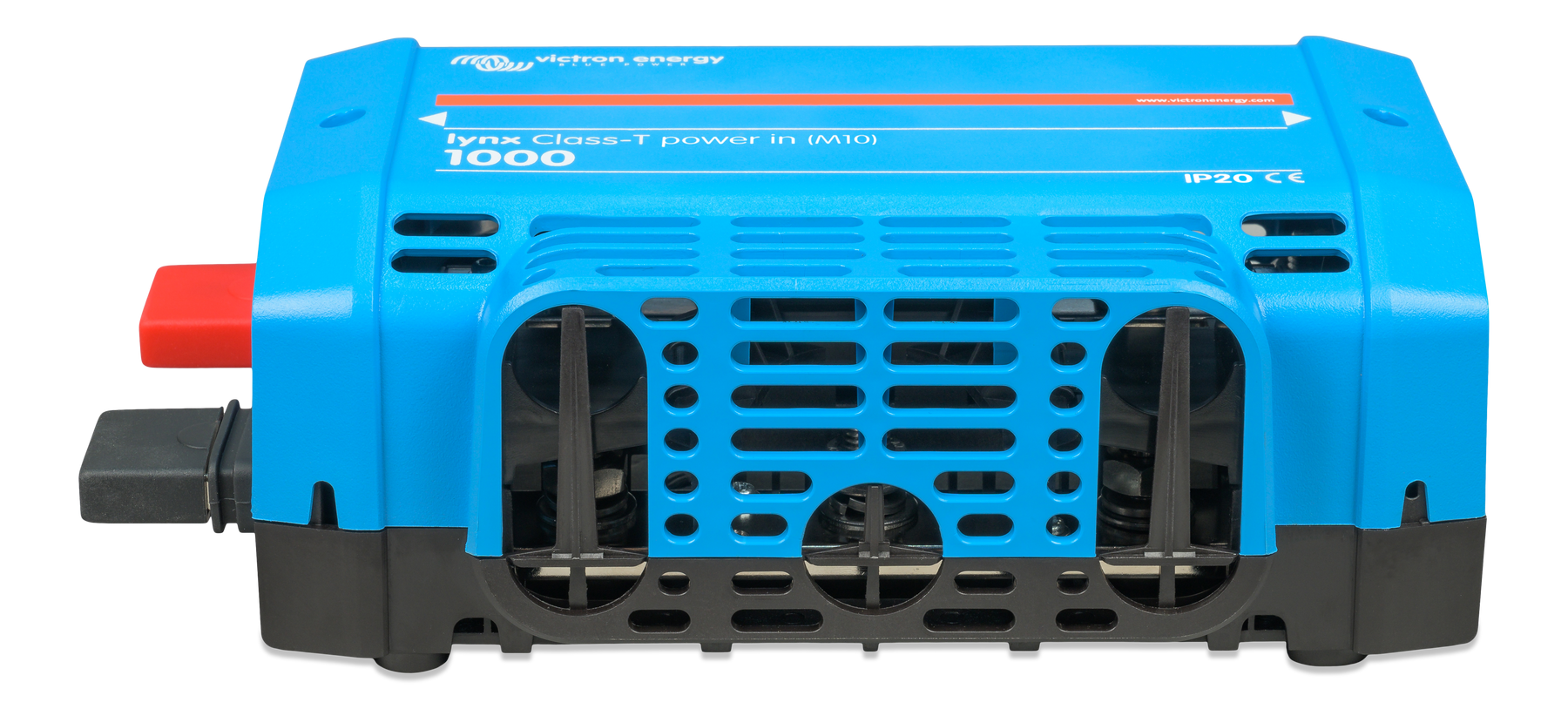

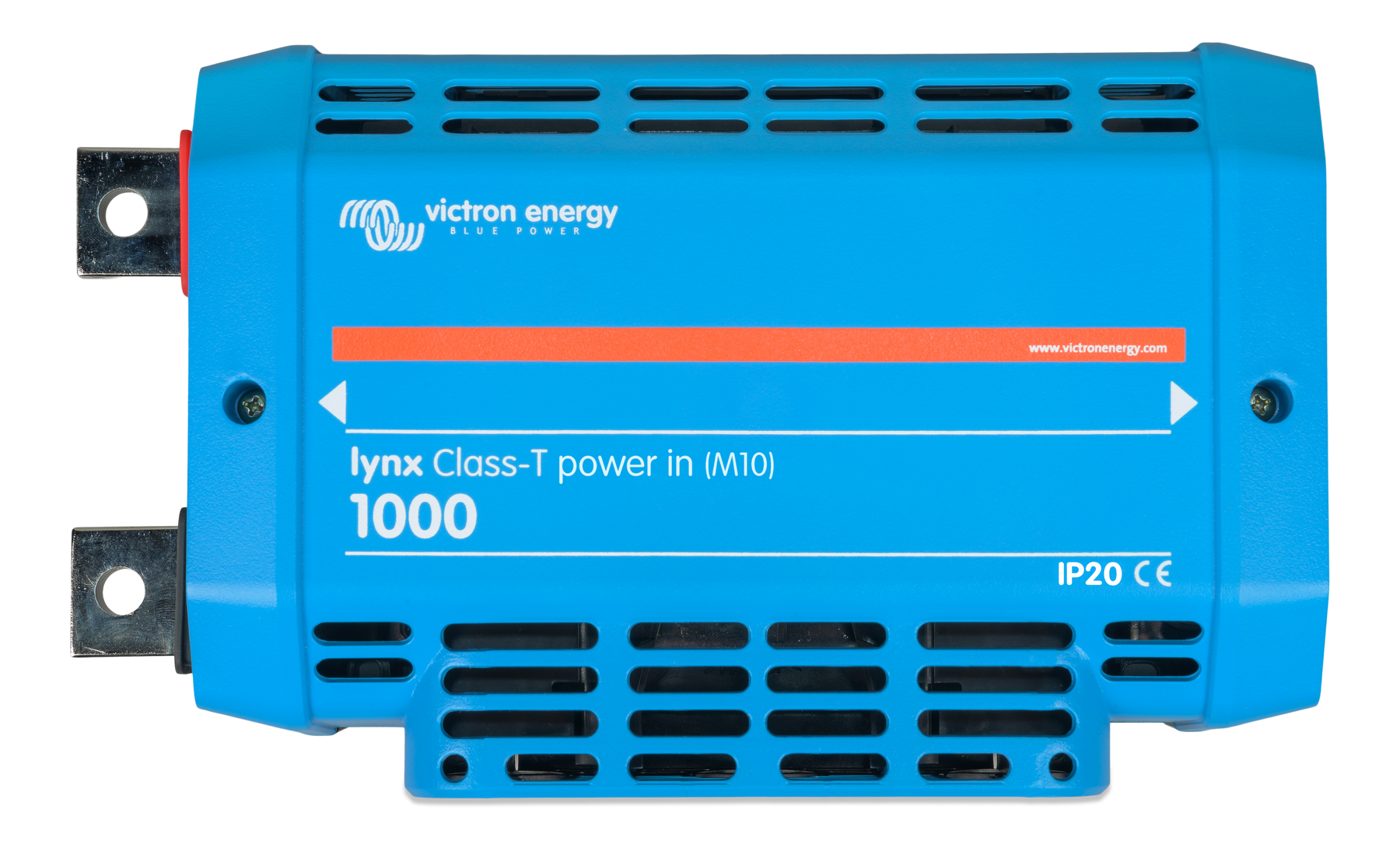

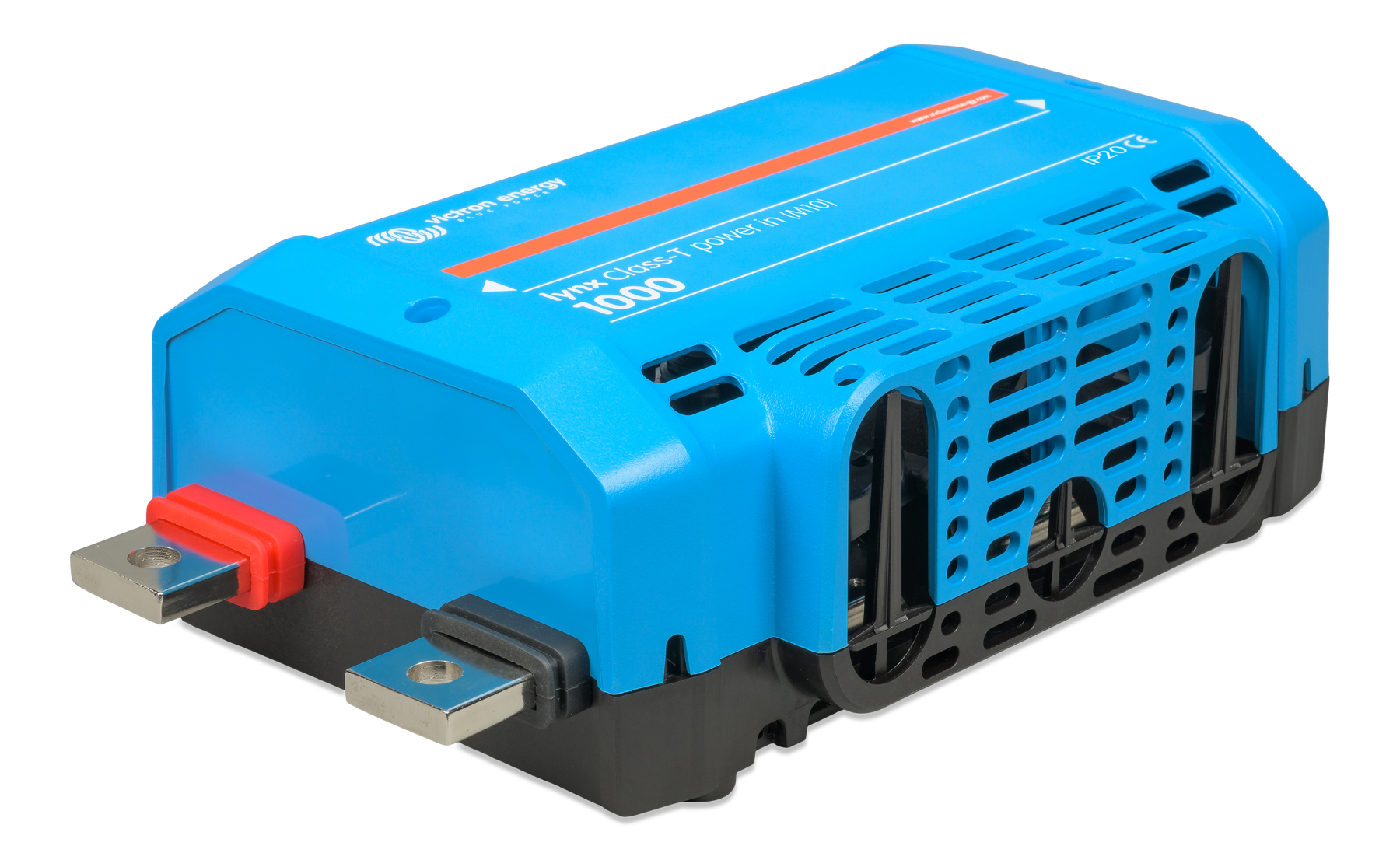

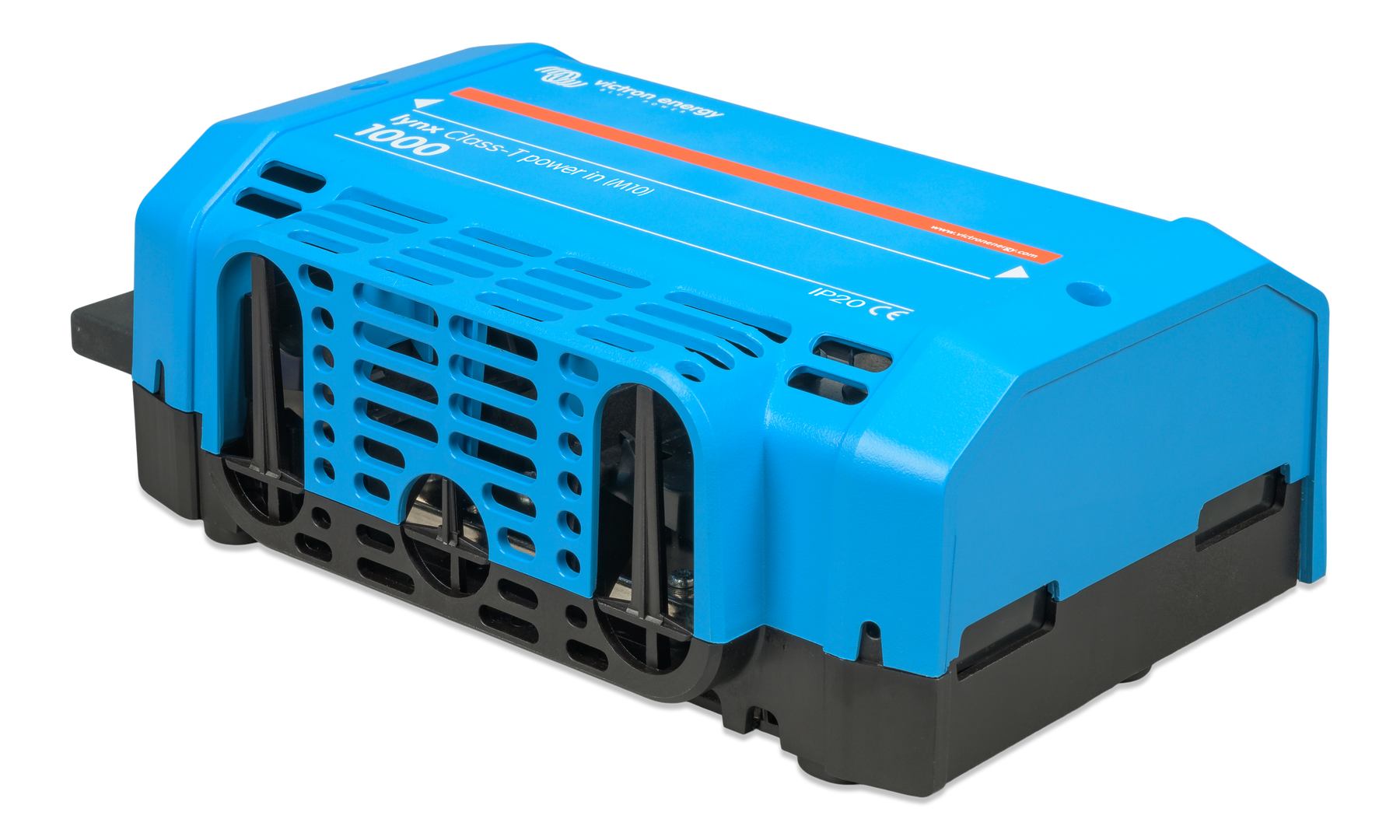

Victron Lynx Class-T Power In (M10)

Introducing the Victron Energy Lynx Class-T Power In (M10)

The Victron Energy Lynx Class-T Power In (M10) combines high-current DC distribution with Class-T fuse protection for up to two lithium battery strings. It incorporates positive and negative busbars, two Class-T fuse positions, and a dedicated system ground connection in a compact module designed to integrate directly into the Victron Lynx Distribution System.

Designed for DC systems operating from 9V to 60V DC, the Lynx Class-T Power In carries up to 1000A continuously through its tinned-copper busbars. It accepts Class-T fuses in 225A, 250A, 350A, and 400A ratings, allowing each connected battery string to receive appropriately sized high-interrupt-current protection. Class-T fuses are purchased separately.

High-Current Battery Distribution with Class-T Protection

The Lynx Class-T Power In is designed as an entry point for lithium battery banks that require Class-T fuse protection before power enters the rest of the Lynx system. Two battery or DC equipment connections are provided, along with positive and negative bus bars and two dedicated fuse positions. For systems using three or more lithium battery strings, additional Lynx Class-T Power In modules can be added. The M10 busbar connections also allow direct integration with other M10 Victron Lynx components for a clean, modular DC distribution system.

Core Functions

• Dual Class-T Fuse Positions: Provides fused connections for up to two lithium battery strings using compatible Class-T fuses.
• 1000A Continuous Busbar: Supports high-current DC distribution with a continuous current rating of up to 1000A.
• 9–60V DC Operation: Suitable for properly designed 12V, 24V, and 48V nominal battery systems within its operating range.
• M10 Lynx Integration: Connects directly with compatible M10 components throughout the Victron Lynx Distribution System.

Best For

• Lithium battery banks requiring Class-T fuse protection
• RV and camper van electrical systems
• Marine lithium battery installations
• Overland and expedition vehicle power systems
