This industrial POE switch is designed for mobile applications and is unique in that it can except 12-48v input and output 48V PoE output allowing you to utilize PoE without needing a 110v Inverter or PoE injector. This can be especially helpful if you are looking to add secondary access points or security cameras to you setup.
NOTE: This switch does not come with a DC power adapter as it typically is directly wired into 12-48v power via a fused DC power source. You may elect to purchase our 10' fused dc power connector above if you require a fused cable for your installation.
Features

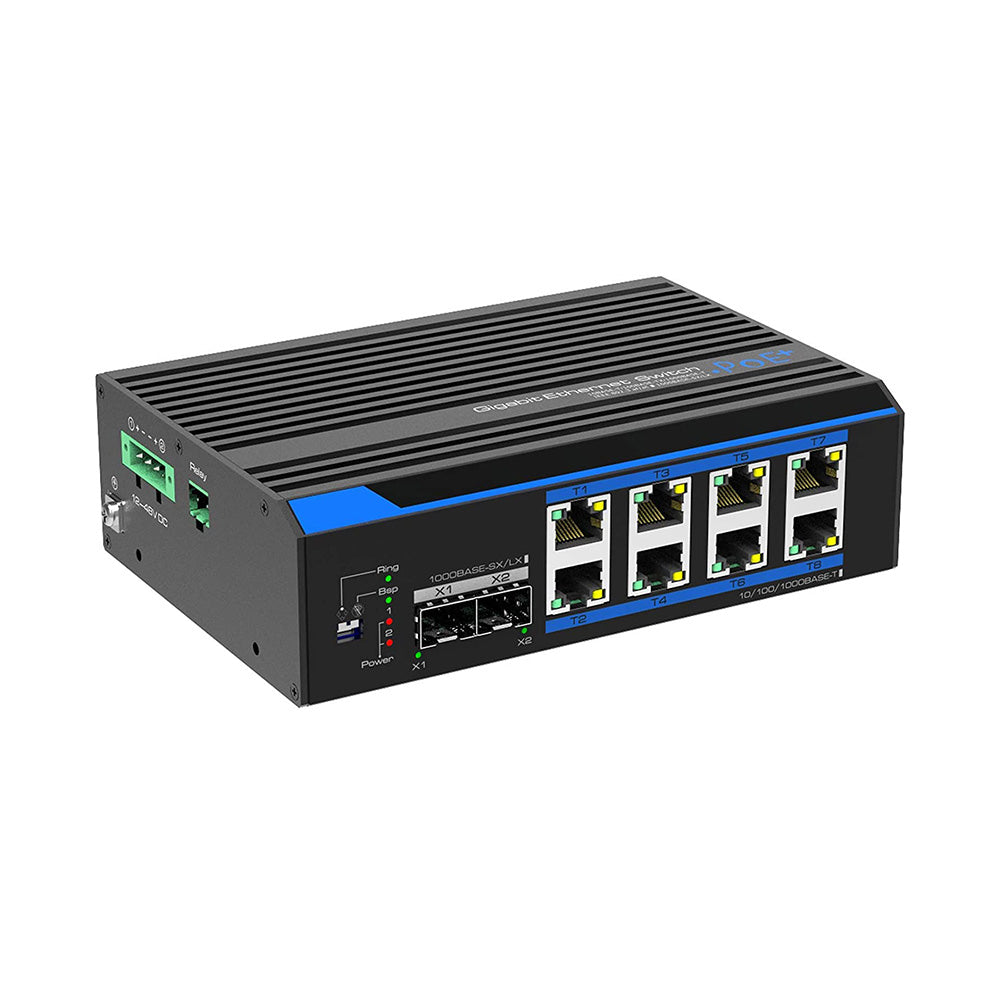

• Providing 8x10/100/1000Base-T Ethernet PoE ports and 2x1000Base-X SFP slots.
• Support one-key fast ring, with self-healing time in 20ms.

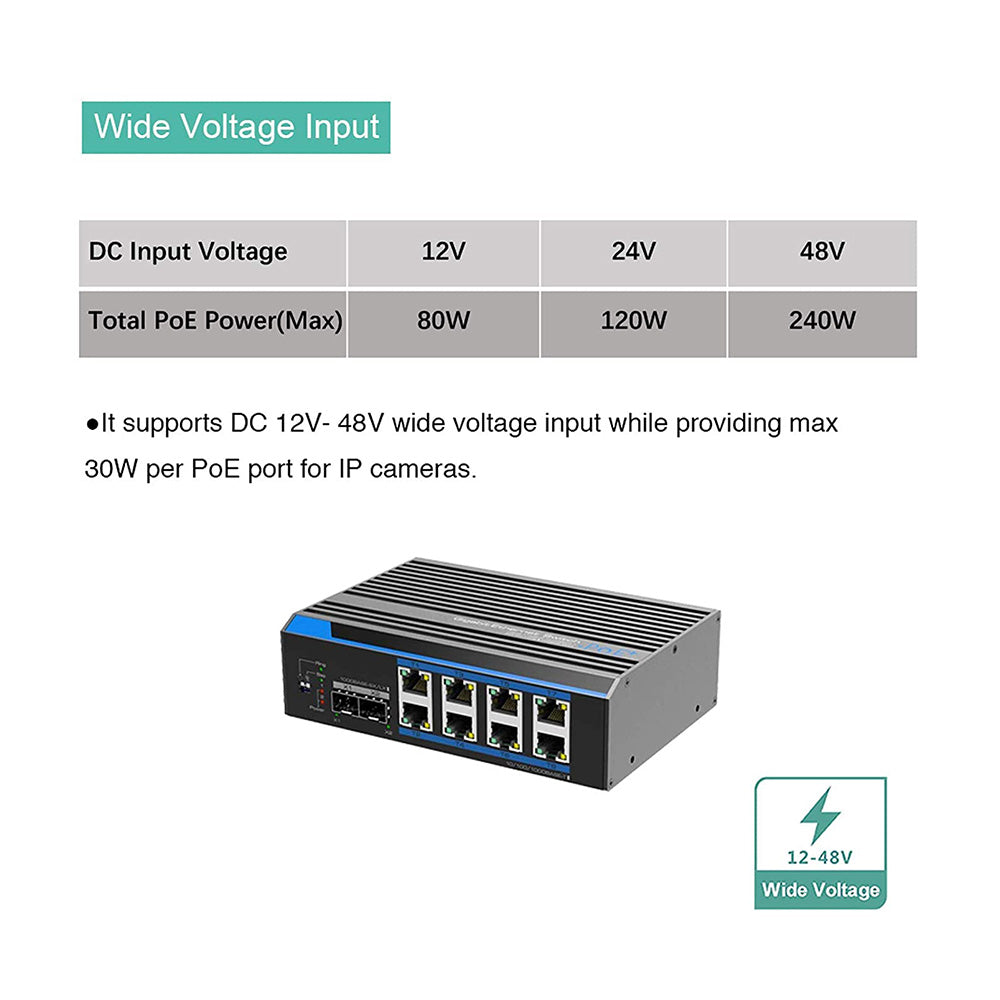

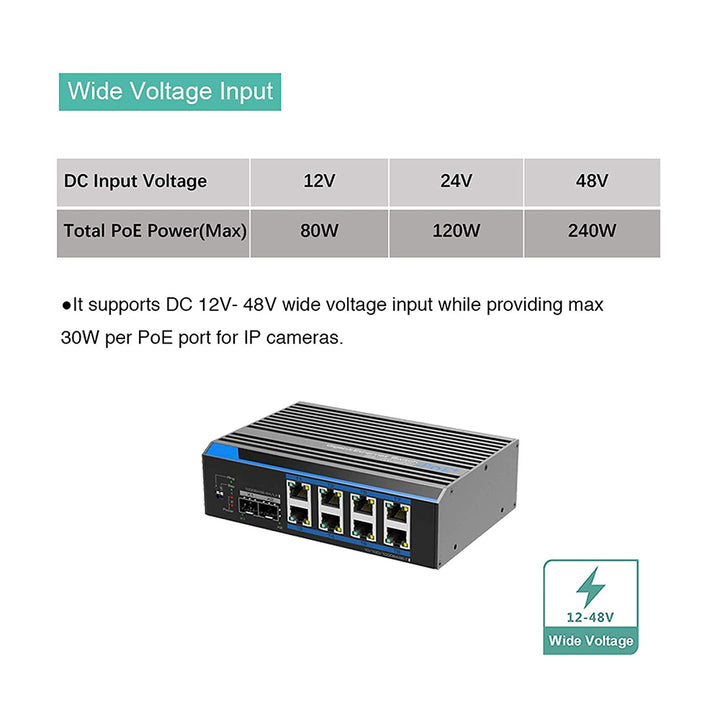

• Support wide voltage input range from DC 12V to DC 48V, output PoE power is 80W(12V), 120W(24V), 240W(48V).
• Support IEEE802.3af/at, max PoE power output for single port is up to 30W
• Support one-key broadcast storm prevention (BSP), preventing crash of the switches.
• Support PoE watchdog, auto reboot the connected failure PD devices.
• Support one channel relay alarm output.
• Fan-less, wave metal shell, low power consumption design.
• Support installation of DIN rail and wall-mounted, adapting to a variety of environments.
Consultations
Talk with an Expert
Our team of mobile experts are available to help you pick the right solution. Click below to schedule a phone consultation.
Membership
Join & Save 10%
Access discount pricing not available to the public and save on your first purchase. Exclusive educational content and forum access. Earn 2x reward points on all purchases good towards future items. Membership can pay for itself with your first purchase.
Price Match Guarantee
Never pay more at MobileMustHave; we will match any advertised, authorized, in-stock, price or give you a $50.00 store credit. Terms and Conditions apply.
Education
Want to know even more?
We have partnered with the Mobile Internet Resource Center to help education and answer all your questions about mobile internet. MobileMustHave Members gain exclusive access to content and special discounts. Click below to learn more.
Why Choose Us
Pick the Mobile Internet Experts
The MobileMustHave Team has 50+ years of combined expertise in networking and Information Technology. We are RVers too, and we put each product we sell through rigorous testing in our own RV.
In Case you missed it!
Mobile Internet Bundles
Take the guess work out of selecting components by hand. Our bundles combine everything you need into a single package at a discounted bundle price.
- Doug B.Verified BuyerReviewing8-Port Gigabit POE Network Switch for Mobile Installations (DC12V-48V Input)I recommend this productRated 4 out of 5 stars6 months agoPurchase of 8-Port Gigabit POE Network Switch
Delivery was prompt. All good.
- James G.Verified BuyerReviewing8-Port Gigabit POE Network Switch for Mobile Installations (DC12V-48V Input)I recommend this productRated 5 out of 5 stars8 months agoPOE network
Woked well to add all POE connections, security cameras etc...
- Ivan R.Verified BuyerReviewing8-Port Gigabit POE Network Switch for Mobile Installations (DC12V-48V Input)I recommend this productRated 5 out of 5 stars1 year agoPerfect
This was perfect for my set up and works great for POE
- Brent L.Verified BuyerReviewing8-Port Gigabit POE Network Switch for Mobile Installations (DC12V-48V Input)I recommend this productRated 5 out of 5 stars1 year agoPOE expansion
Device is a great option for 12vdc shore power while also providing POE. Well packaged switch with metal body heat sink.
