Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)

4.8
Rated 4.8 out of 5 stars
5 Reviews
Regular price $109.00 Sale price$89.00 Save 18%
/
Shipping calculated at checkout.

Part Number: POE-Switch02UPS

Availability:

Shipping:  Free Shipping on orders over $199

Description:  PoE Injector with 12v DC and 120v AC Input for Mobile Installations


Low stock - 33 items left

Need Help?

Reach out to our Nomadic Specialists

  • Free shipping +$199
  • Members save 10%
  • Guaranteed Low Price
  • Satisfaction Guarantee

JOIN NOW & SAVE!

Get Free 2-Day Shipping and 10% off Products and $10 a month of Data Plans

Already a Member? Discounts show in Cart
  • Description
  • Videos

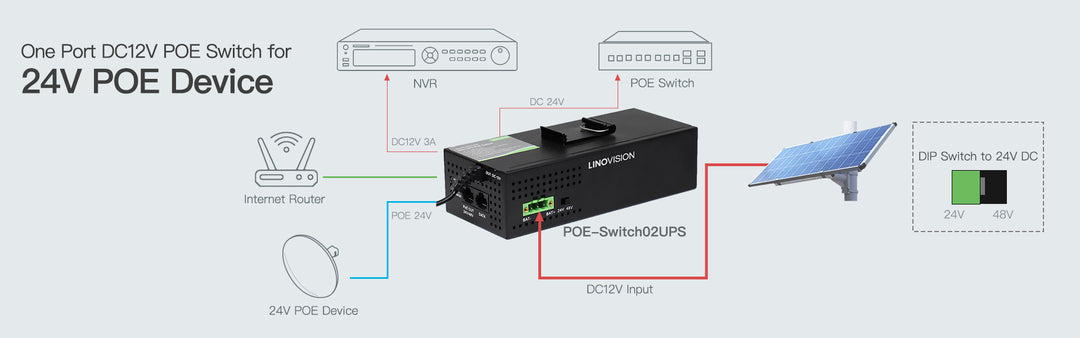

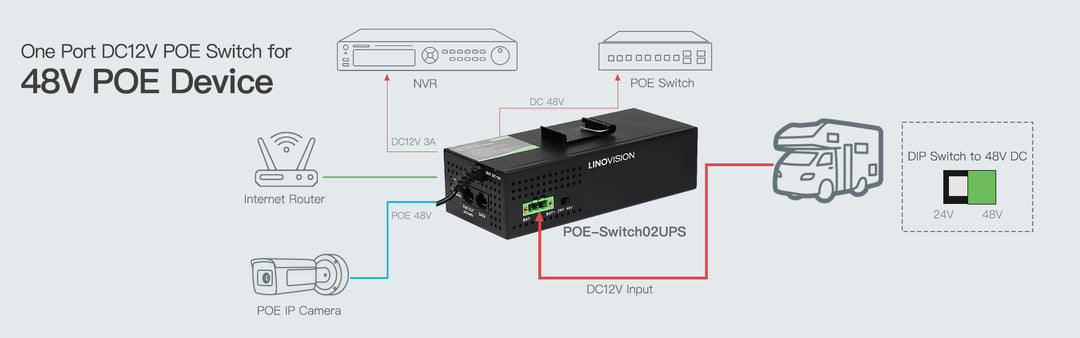

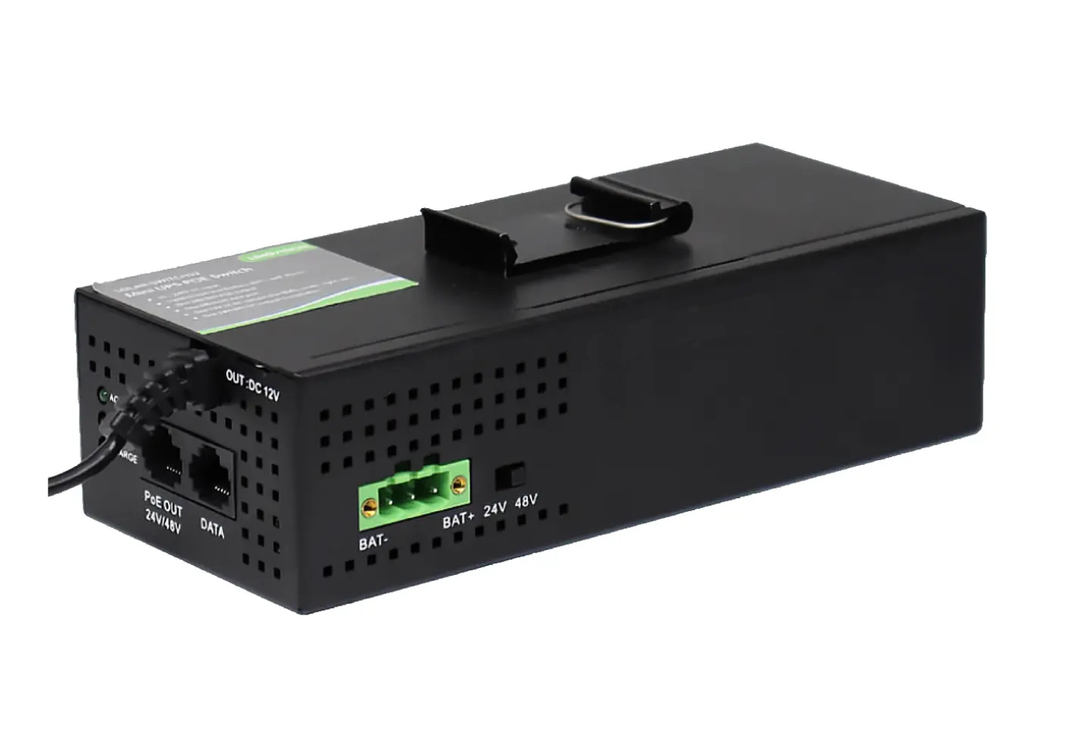

12V Powered Power over Ethernet (PoE) injector can power PoE compatible devices such as Peplink Pepwave Access Points. Unlike traditional PoE injectors, this injector is designed to run on 12V DC power while providing 48V (standard) or 24V (Unifi) PoE. This will allow a single ethernet cable to provide data and power to an external access point. PoE Injector has an additional 12v output DC connector to power Pepwave router simplifying your installation. Additional information in video tab.

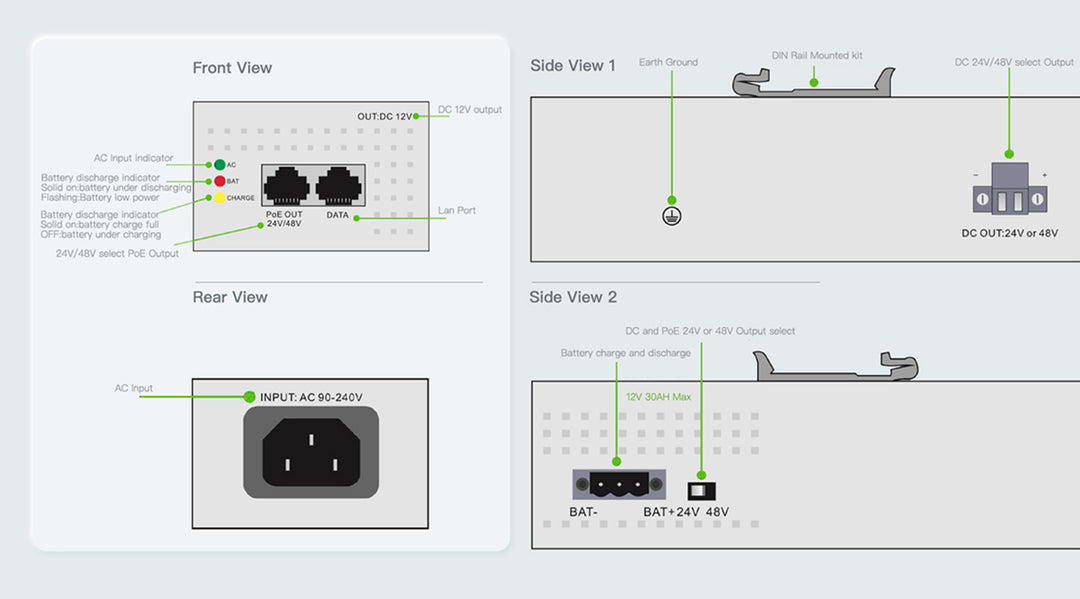

  • Support DC12V input from power adapter, vehicle battery or solar power
  • One ethernet data port 10/100/1000Mbps for LAN/WAN connection
  • Provide one IEEE802.3af/at Standard 48V POE output, or switchable to POE 24V,, max power output is 25W
  • Provide one 12V 3A DC output (For NVRs, router, light, etc.)
  • Provide one 24V/48V DC output (Switchable)
  • Compact dimension, DIN mount
  • Dimension 17cm (L) x 7.5cm (W) x 4.7cm (H) or 6.69 inch x 2.95 inch x 1.85 inch
  • Working temperature -10 ℃ to 60 ℃ or 14 ℉ to 140 ℉
couple in their rv looking at a laptop

Consultations

Talk with an Expert

Our team of mobile experts are available to help you pick the right solution. Click below to schedule a phone consultation.

Schedule a Consultation

Membership

Join & Save 10%

Membership Options
Couple using digital tablet near campfire stock photo

Price Match Guarantee

Never pay more at MobileMustHave; we will match any advertised, authorized, in-stock, price or give you a $50.00 store credit. Terms and Conditions apply.

Education

Want to know even more?

Learn more

Why Choose Us

Pick the Mobile Internet Experts

The MobileMustHave Team has 50+ years of combined expertise in networking and Information Technology. We are RVers too, and we put each product we sell through rigorous testing in our own RV.

Learn More

In Case you missed it!

Mobile Internet Bundles

Take me to them
4.8
Rated 4.8 out of 5 stars
Based on 5 reviews
Total 5 star reviews: 4 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Customer-uploaded media carousel. Press left and right arrows to navigate. Press space or enter to open more details.
Slide 1 selected
5 reviews
  • adstewart91
    Verified Buyer
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    Reviewing
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    I recommend this product
    Rated 5 out of 5 stars
    14 seconds ago
    Great DC Power solution for Router + Mini Access Point

    Combined with a "Bare Wire to 12v 2.1mm DC Female Connector" + "DC Wire to 4-pin molex connector," the 12V pig-tail output powers my Peplink MAX BR1 Pro 5G Mobile Router while the 48v POE injector powers my mini-Access Point. While running off 12V DC is my normal "unplugged" mode of operation, have the option to plug in the AC cord and run off of AC when my rig is plugged-in is an added bonus.

  • skipbaccus ..
    Flag of United States
    Verified Buyer
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    Reviewing
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    I recommend this product
    Rated 4 out of 5 stars
    8 months ago
    Meets the need

    pros - runs the max transit and the poe APO-AC-MINI. easy to hook up. passive cooling aka fanless. case is easy to open and reroute the front 12v output to the rear (or side).

    cons - there are input/outputs on four sides (instead of one or two) making a clean install very difficult. the battery input was not clearly labeled on the box as "12v input" but was instead labeled "Bat- Bat+" causing doubt when wiring for an RV install.

    M Profile picture for MobileMustHave.com
    MobileMustHave.com
    8 months ago
    Thanks Skip, note the unit has the ability to not only provide POE via the 12v inputs but also provide trickle charge to a 12v battery and run the POE via 120v input port (providing a battery backup to the POE out if the 120v power is lost). This added feature results in the input/output labels being confusing for sure. We will review the video we did on this product to verify this is properly explained.
  • BRIAN B.
    Flag of United States
    Verified Buyer
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    Reviewing
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    better than plugging in ac power

    it was a very easy setup and this is much nicer than having to plug into ac power with an additional cord

  • Jeff C.
    Flag of United States
    Verified Buyer
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    Reviewing
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    Worked well

    Everything was as expected

  • Mark Q.
    Flag of United States
    Verified Buyer
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    Reviewing
    Gigabit PoE Injector for Mobile Installations (120v AC / DC12V Input)
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    1-Port Gigabit PoE Injector Mobile Installations (DC12V Input)

    Love this device. Powers my Pepwave duo router and my Pepwave Mini AP over POE exactly as advertised.
