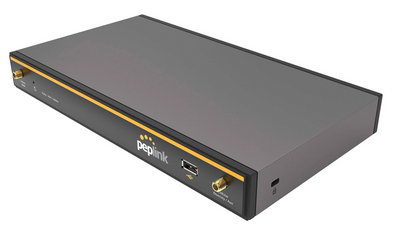

The Peplink Balance 20x CAT7 offers advanced features and rock-solid reliability at the heart of your mobile or rural home internet/connectivity solution. This modem is capable of supporting up to 3 cellular WAN connections with optional accessories making it a true powerhouse at an attractive price point that includes Speedfusion licensing with the bundled Primecare Licensing. This 2022 upgraded hardware version of the Balance 20x has a cat7 modem built in and an expansion slot module that can be used to insert a second modem. The USB Port can support a 3rd cellular modem.
Expansion modules known as FlexModules are available in LTE cat-6, cat-12, cat-18 and now a cat-20/5G variants. USB Max Adapters are available available in Cat 6, 12 or 5G variants which can function in addition to the flex module offering a 3 modem solution at an exceptional price point.
In addition to 802.11ac/a/n and 802.11b/g/n 2x2 MIMO WiFi (2ghz and 5ghz WiFi Supported), this router has 4 wired ethernet ports for wiring up non WiFi devices as well as a WAN port for wiring up an additional WAN source such as Starlink, DSL or a cable modem. This router does support WiFi-as-WAN as of the newest firmware update (8.3).
The Balance 20x supports Verizon, AT&T, T-Mobile & Sprint as well as many other carriers. Thanks to automatic failover switching and multiple SIM slots with multi-carrier support, you will always be connected using a single, easy to use device without needing a hotspot or tethering of any kind.
The units highly customizable web interface supports a variety of advanced routing features and will satisfy the needs of power users while being extremely easy to use for the nontechnical as well. The unit accepts 12v inputs ranging from 10-30 volts or you can use the included AC adapter for 120v installation.
|All Peplink devices purchased from MMH include:||Optional Upgrade: $49 Device Configuration|
This mobile router is equipped with two embedded cellular modems. This will allow you to utilize two cellular connections at the same time, providing advanced traffic routing and load balancing capabilities as well as near-instant failover from one provider to another. Internet traffic can be routed in a variety of ways using Peplink's proprietary Outbound Policy Management Algorithms. Dual modem devices may be capable of utilizing SpeedFusion technology, also known as "WAN bonding", which may require separate licensing. See SpeedFusion section below.
This mobile router is equipped with a single cellular modem. This device may have multiple SIM card slots but can connect to one cellular provider at a time. Single modem devices may include a USB port or expansion slot to add additional modems. Switching between SIM card slots can be done via the management console, typically in 30-60 seconds allowing time for the modem to reboot utilizing the auxiliary SIM slot(s). Higher-end single modem devices often have faster maximum download/upload speeds then other devices but lack the redundancy found in a multi-modem device. Our multi-modem collection of devices can be found here.
Internet traffic can be routed in a variety of ways using Peplink's proprietary Outbound Policy Management Algorithms. Single modem devices may be capable of utilizing SpeedFusion technology, also known as "WAN bonding", which may require separate licensing. Single modem devices can bond the single cellular connection with the devices WAN port or WIFI-as-WAN sources if the device supports these functions. See SpeedFusion section on this page for additional information.
This mobile router is equipped with one or more category 7 LTE Advanced cellular modems with a maximum download speed of 300Mbps and a maximum upload speed of 150Mbps (typical speeds range from 10-75mbps depending on cellular network conditions and coverage). The category of the modem impacts the maximum upload and download speed of the device and what cellular bands or "channels" the device can connect to. Cellular bands act similarly to "channels" on television, each cellular provider broadcasts on specific bands. Category 7 modems support connecting to the primary bands of all major carriers such as Verizon, T-Mobile, Sprint and AT&T and include additional LTE secondary bands for increased speed and coverage in many areas. This includes access to Band 14, AT&T's FirstNET band and Band 71 for TMobile's rural band. For a complete list of bands supported, click the documentation tab for detailed specifications.
Category 7 modems are extremely popular as they blend strong performance and maximum data plan compatibility and value. Category 7 modems are very popular for mobile workers and for those who consider the internet "mission-critical" as they come in many dual modem mobile routers capable of bonding. Category 7 modems are capable of video calling, VOIP, streaming, general internet use, and, when paired with a dual modem capable device, support bonding of multiple cellular connections. See SpeedFusion section for more information.
This device is licensed for SpeedFusion access. SpeedFusion is Peplink's proprietary WAN bonding solution that can bond multiple internet connections together into a single, more resilient connection for added connection reliability. SpeedFusion-capable devices create a VPN tunnel that allows multiple internet connections to act as a single connection. SpeedFusion supports WAN-Smoothing, a technology that helps to prevent packet loss which is typically the cause for unstable internet connections. In order to utilize SpeedFusion you must either host your own SpeedFusion instance at a secondary location/datacenter or use Peplink's SpeedFusion Cloud service which is available for an additional monthly subscription fee. This device includes data allotment for SpeedFusion cloud transfer at up to 100Mbps per second (amount of data will change based on the hardware). For more information on SpeedFusion and SpeedFusion Cloud, please reach out to us below.
This mobile router comes with indoor antennas that provide 3db of cellular gain. Upgrading to an optional roof antenna can provide significant signal improvement by moving the cellular antenna outside, at higher elevation and provide you the benefit of an antenna with higher gain specifications. Roof antennas can be added now with a bundle discount by checking out our Internet Bundle Section, or at a later date based on your needs.
MobileMustHave is proud to announce we now have high-speed, high GB data plans available exclusively to our customers. Traditional cellular plans available directly from the carriers have data caps that are not suitable for active travelers. We have negotiated the ability to provide high gigabyte cellular data plans that operate on the top national networks. Take the guesswork out of activating other plans that don't work or are not authorized to work on our cellular routers with data plans from MobileMustHave. Our plans are ready to activate when your ready to travel and have no contracts so keep as long as you need and cancel anytime.
This device supports Band 71. Band 71 is T-Mobile's rural cellular band that operates on 600mhz which provides significant increases in coverage on the T-Mobile network for customers traveling outside of urban areas. 5G ready devices that support Band 71 typically also support Band 71n which is the 5G band for T-Mobile. Note that not all devices are 5G devices so check the listing above but with or without 5G you will still achieve increased coverage on the T-Mobile network with any device that supports Band 71. For more information about Band 71, check out the Band 71 Guide from our friends at the Mobile Internet Resource Center.
This is a PrimeCare device. PrimeCare includes a factory replacement warranty, centralized cloud management, and SpeedFusion licenses for WAN Bonding functionality. PrimeCare devices include 1 Year of PrimeCare with your purchase. Update to PrimeCare+ to upgrade from business hour support with the manufacturer to 24/7 email based support with the manufacturer. PrimeCare+ customers are eligible for Advanced Hardware Replacement from the manufacturer. Once your RMA is approved a new device will be sent to you before the defective device is returned ensuring customers are not left without a device during the warranty replacement. PrimeCare+ is provided by the manufacturer, not by MobileMustHave. For additional information our partners at the Mobile Internet Resource Center have put together a detailed guide.
Licensing PrimeCare and Primecare+ beyond year one can be purchased at the time of purchase or after the fact. Basic functionality will remain if PrimeCare expires. Factory Warranty, InControl Cloud Management and SpeedFusion will stop functioning until the PrimeCare license is renewed. Warranty and license purchases are non-refundable due to manufacturer policies.
Looking for the full specifications on this product? Not to worry, they are located above under the "Documentation" Tab just above by the product description.
