Peplink Mobility 02 2x2 MIMO Wi-Fi Antenna

$96.85
/
Shipping calculated at checkout.

Part Number: ANT-MB-02-R-W-6

Availability:

Shipping:  Free Shipping on orders over $199

Description:  2x2 MIMO dual-band Wi-Fi antenna for rugged mobile installations.

Stainless Steel Deck Mount Components

Self Leveling Roof Sealant

Cable Entry Systems

Low stock - 1 item left

Peplink Mobility 02 2x2 MIMO Wi-Fi Antenna

  • Description
  • Documentation

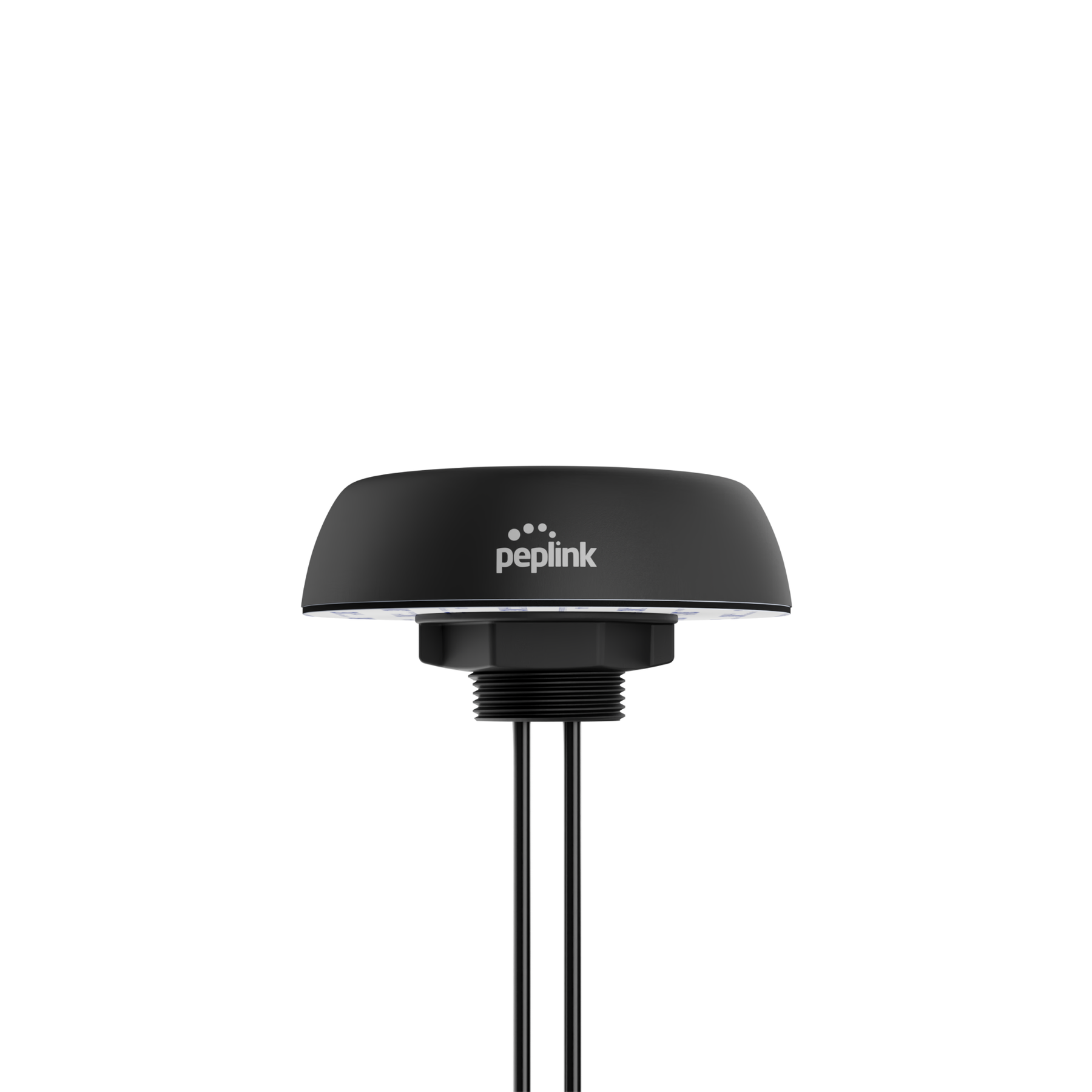

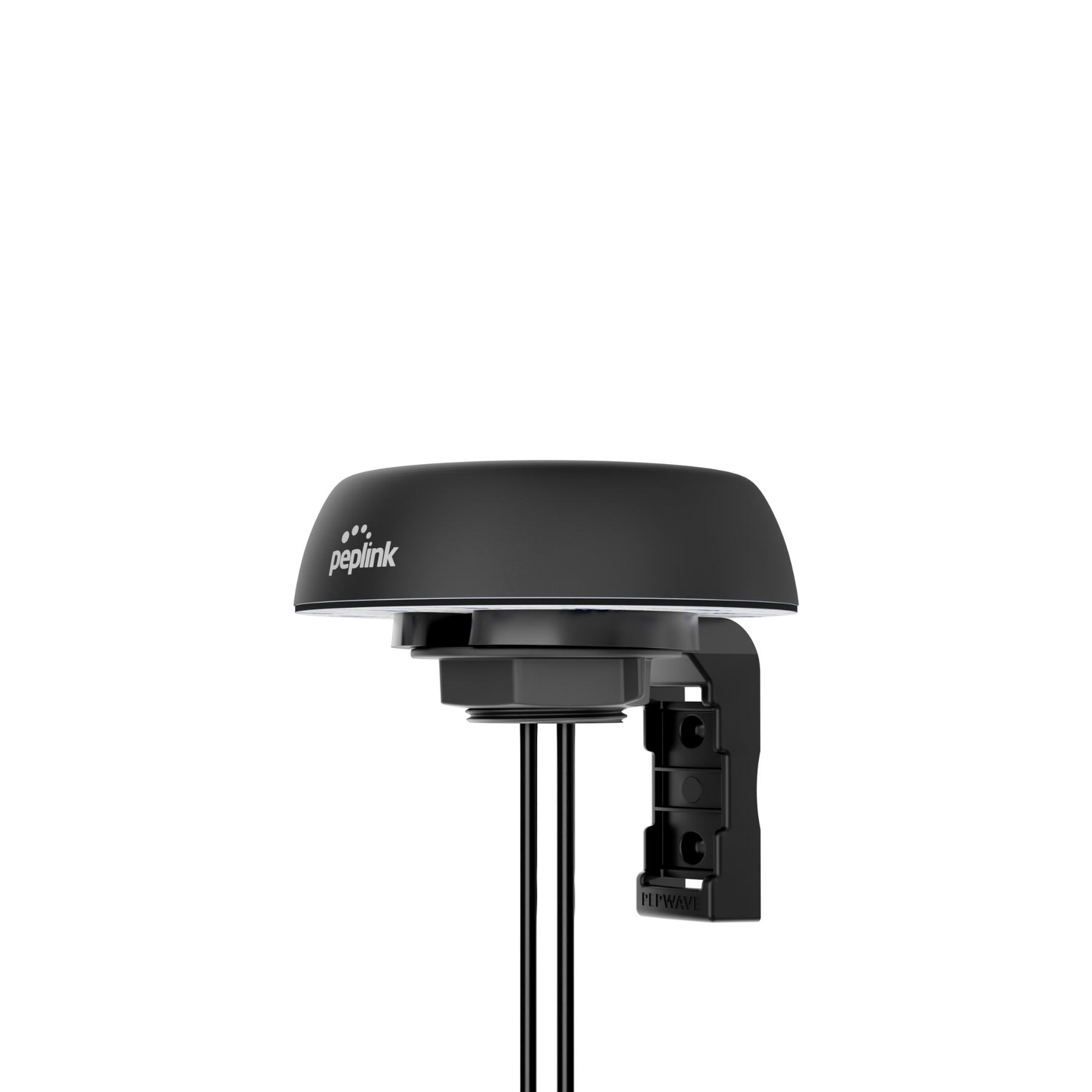

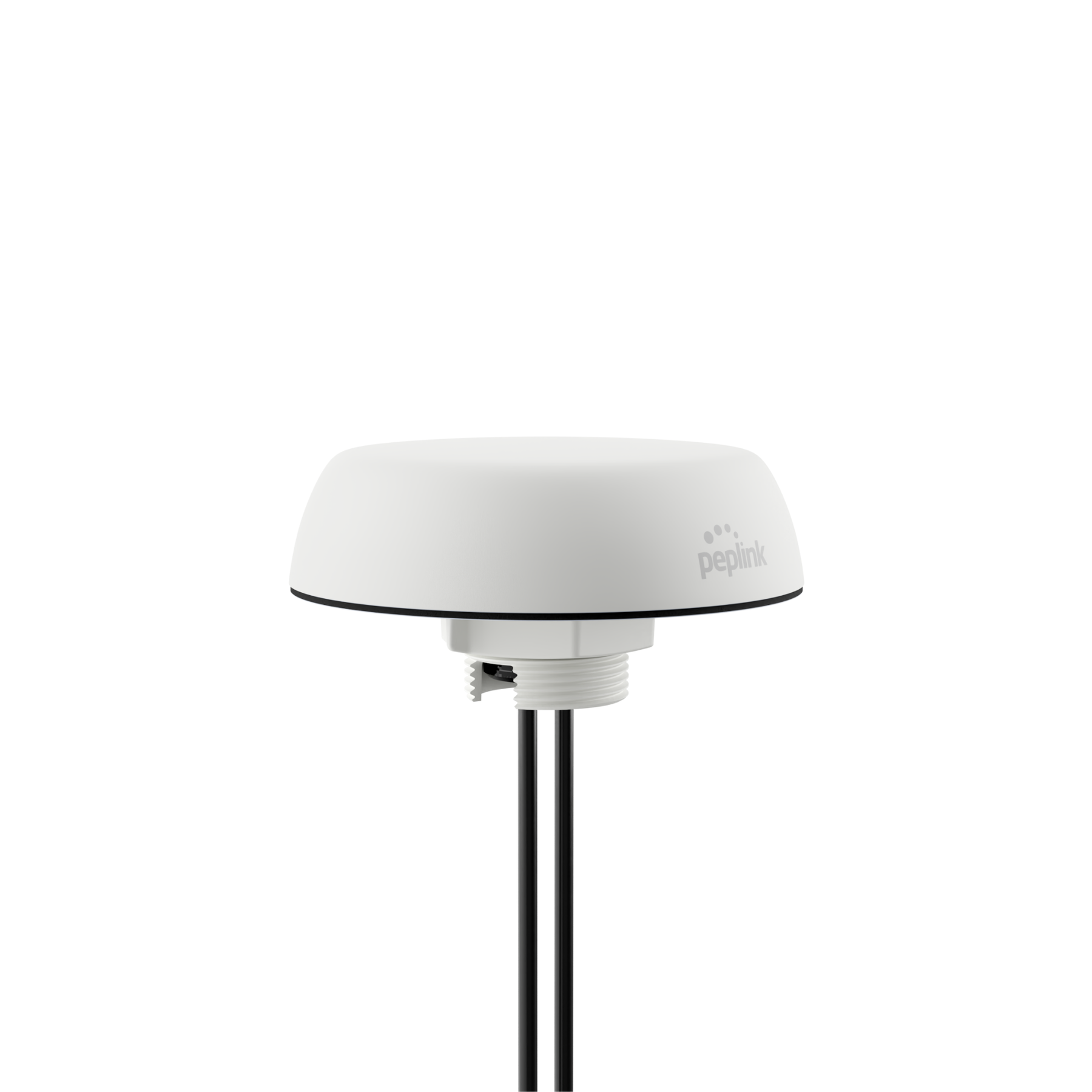

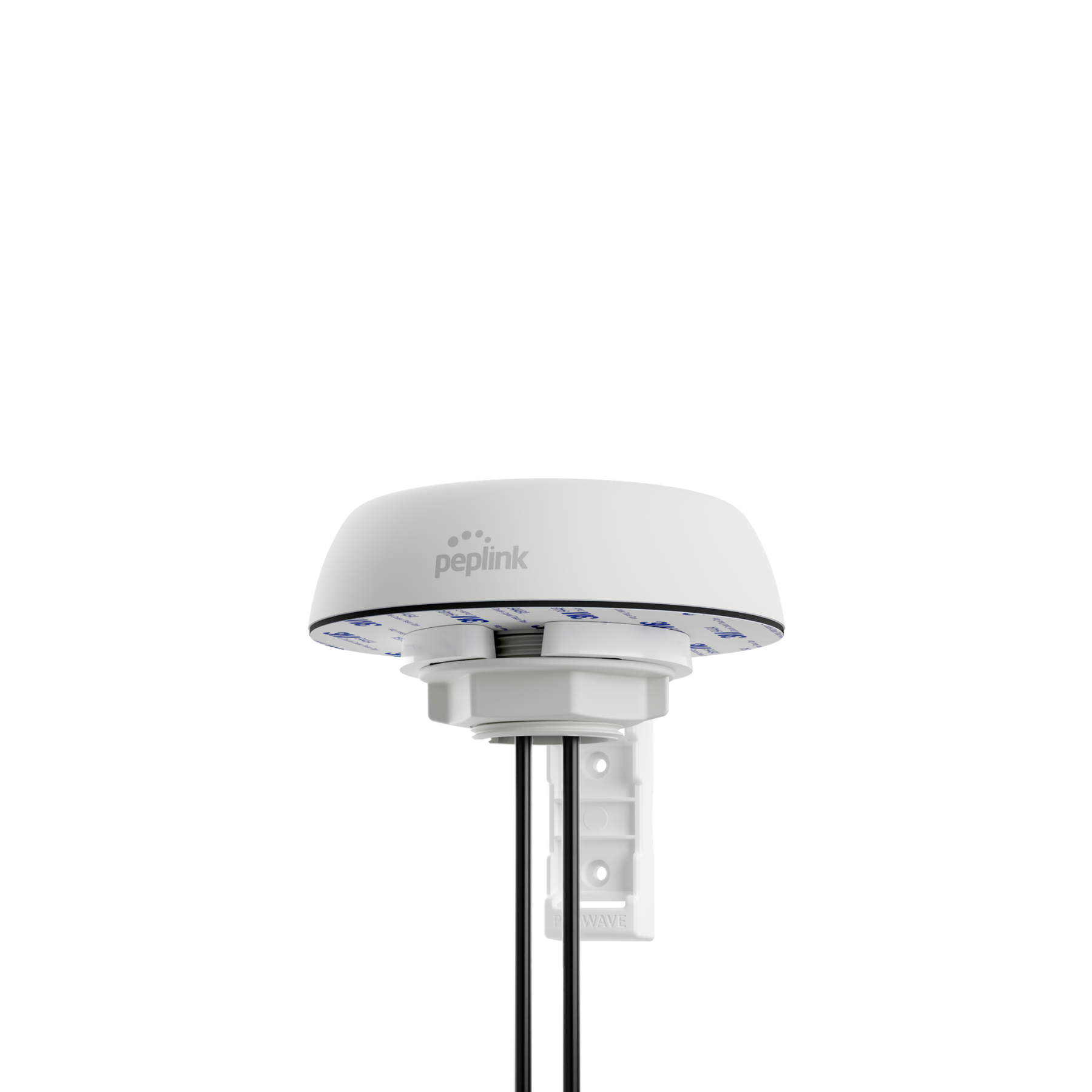

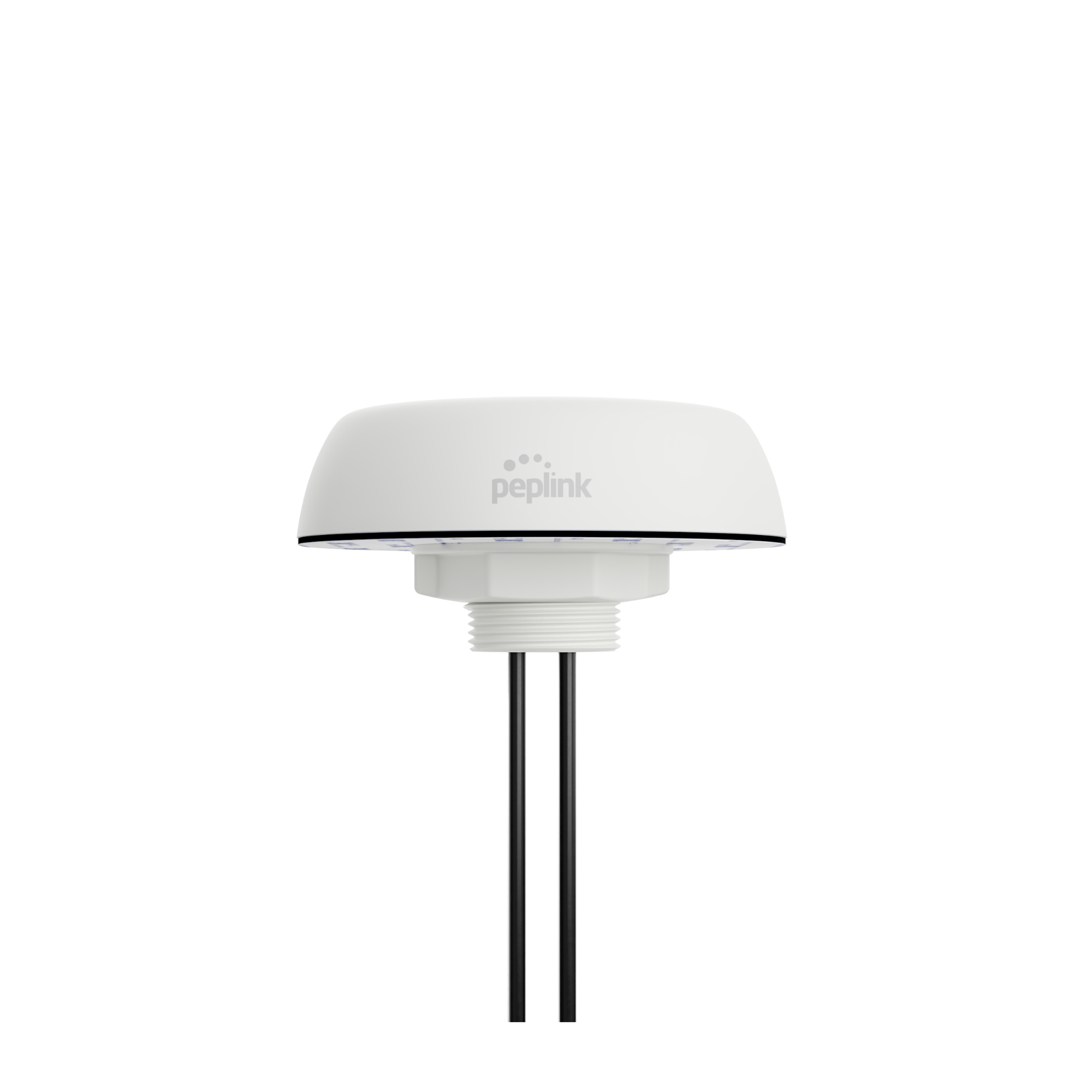

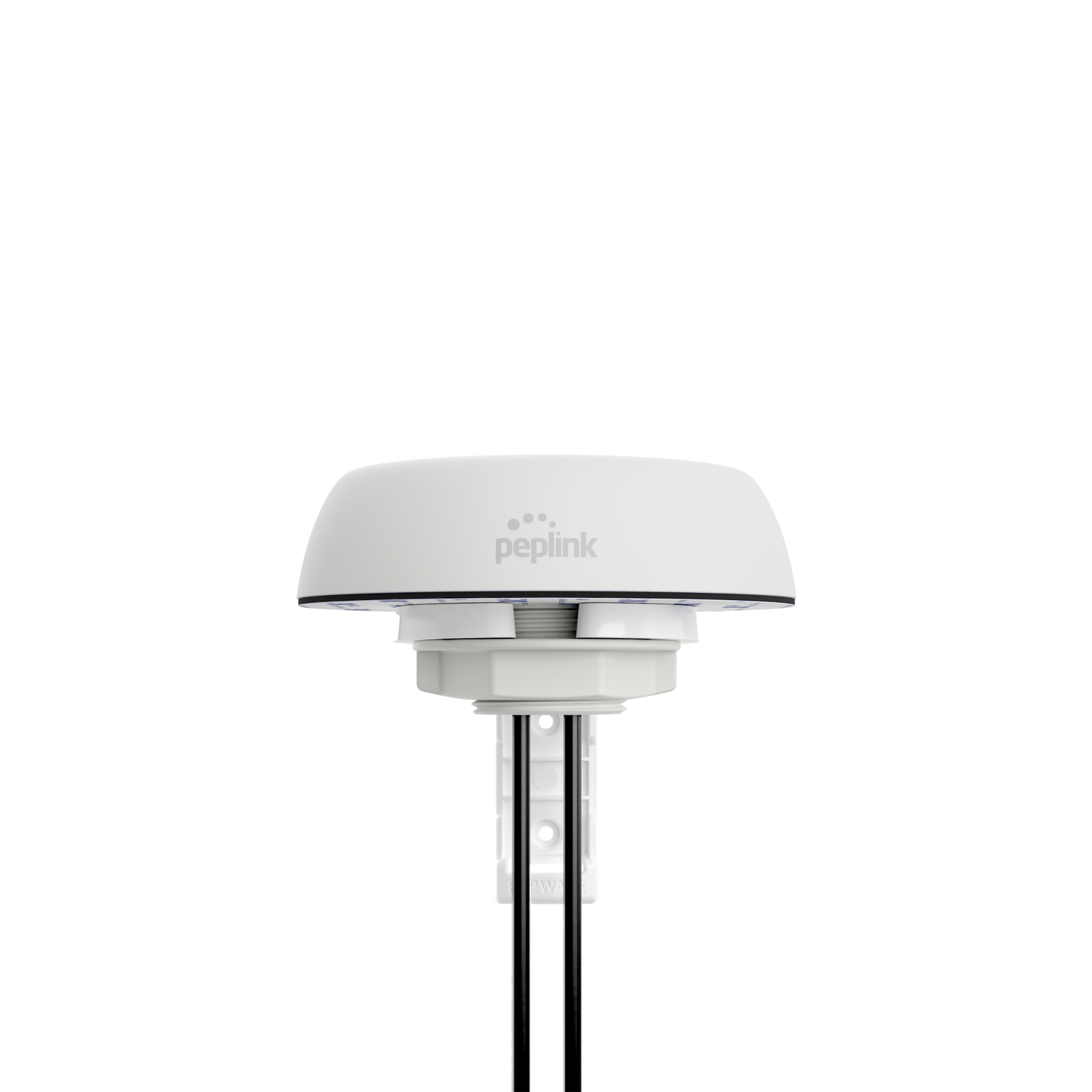

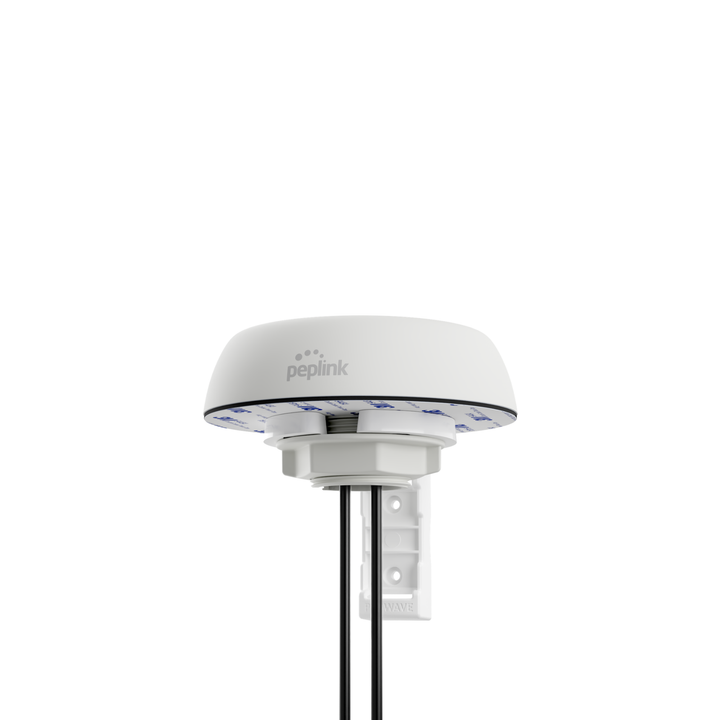

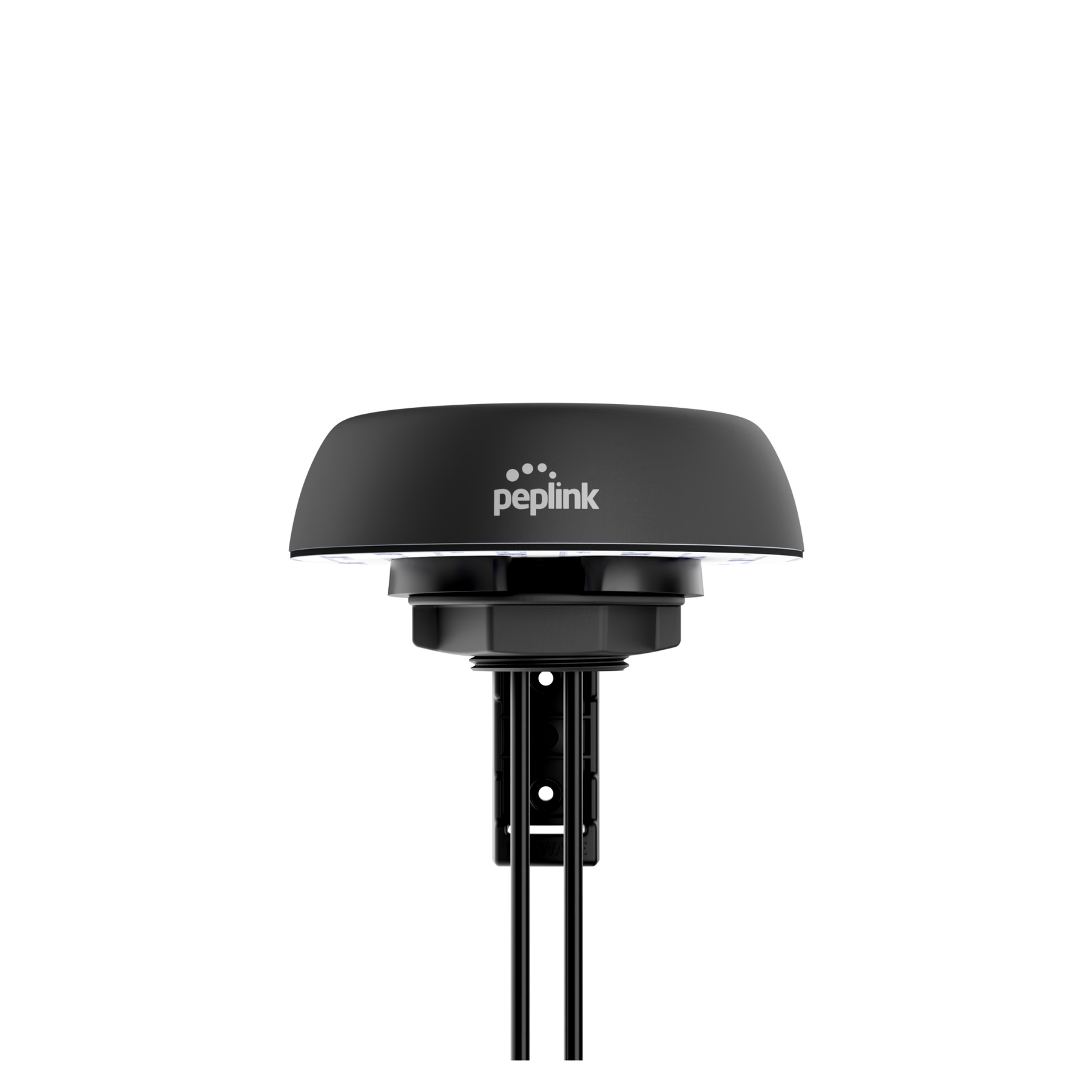

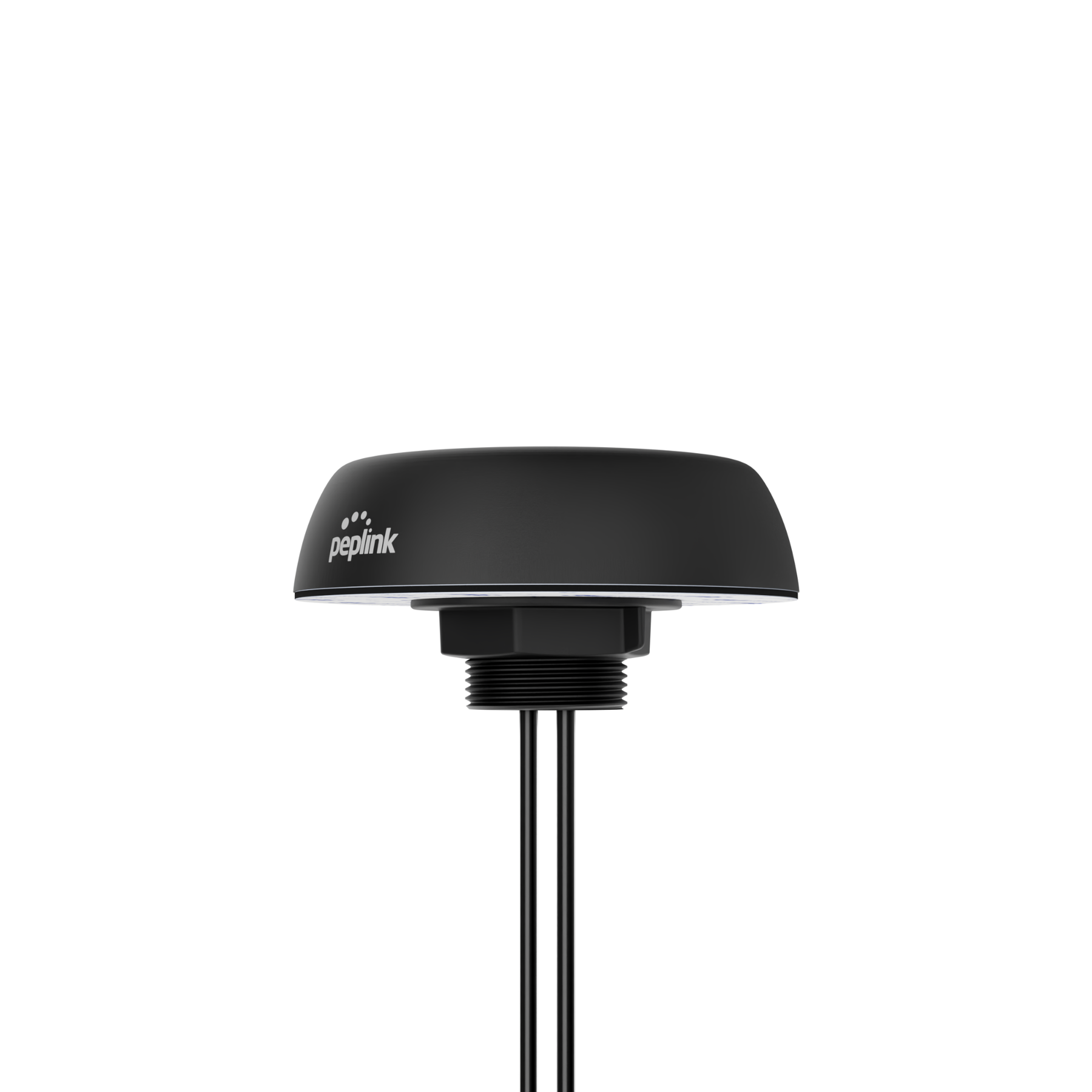

Meet the Peplink Mobility 02 2x2 MIMO Wi-Fi Antenna

Peplink's Mobility 02 is a compact 2x2 MIMO dual-band Wi-Fi antenna system designed for mobile, RV, marine, fleet, and fixed installations. This antenna supports both 2.4 GHz and 5 GHz Wi-Fi frequencies, making it a strong external antenna option for compatible Peplink routers that require dedicated Wi-Fi connectivity.

The Mobility 02 is a great addition to Peplink routers with 2x2 MIMO Wi-Fi antenna connections. Its external mounting design helps move Wi-Fi antennas outside vehicles, cabinets, or other enclosures that may interfere with wireless signal performance. This model is Wi-Fi only and does not include cellular or GPS antenna elements.

  • 2x2 MIMO Wi-Fi antenna system
  • Dual-band 2.4 GHz and 5 GHz Wi-Fi support
  • Wi-Fi frequencies 2400–2500 MHz and 4900–6000 MHz
  • Up to 6.2 dBi gain on 2.4 GHz
  • Up to 7.3 dBi gain on 5 GHz
  • RP-SMA male connectors
  • Durable UV-stable housing
  • Black or white color options
  • IP68 rated
  • 6.5 ft (2 m) leads

The Peplink Mobility 02 is a dual-band Wi-Fi antenna built for mobile and outdoor applications where reliable external wireless connectivity is needed. Its two antenna elements support 2x2 MIMO Wi-Fi for compatible Peplink routers, while coverage across both 2.4 GHz and 5 GHz bands provides flexibility for local Wi-Fi and supports Wi-Fi WAN applications. The low-profile housing is made from UV-stable materials and carries an IP68 rating for outdoor installations. Black and white versions are available to better match different RV, vehicle, marine, fleet, and fixed deployments.

Omni-Directional Antenna

This antenna is an omni-directional antenna. Omni-directional antennas are designed to pick up signals in a 360-degree pattern around the antenna and do not require that they be aimed or pointed at the cellular or WIFI broadcasting tower.  Omni-directional antennas offer a blend of performance and ease of use over directional antennas that may have higher performance and gain specifications.  Omni-directional antennas also perform well if a customer is utilizing multiple cellular or WIFI connections that may be broadcasting in different directions, for example if a customer has data plans from multiple cellular providers and cell towers are in different directions. Omni-directional antennas are the preferred style of antenna for mobile travelers and those who change their location and method of connecting to the internet frequently as they offer solid performance without the need to point the antenna.

Directional antennas may be better suited than omni-directional antennas for customers with fixed locations such as rural home or business customers.

FirstNet Ready

This device is FirstNet Ready! FirstNet is the nationwide public safety communications platform dedicated to America's first responders. Being built with AT&T, in public-private partnership with the FirstNet Authority, FirstNet utilizes Band-14, which is reserved for public safety but is also being marketed as available to the public for additional bandwidth capacity. In testing Band-14 has been made available during non-emergency situations to the public to provide additional bandwidth and coverages to customers who have a modem that supports FirstNet's Band-14. Not all modems that support Band-14 are "FirstNet Certified" however they typically can connect to Band-14 in most areas. Information on FirstNet certifications can be found on Specification sheets located on the Documentation Tab. Additional information about FirstNet's use and technology can be found in this article from our friends at the RV Mobile Internet Resource Center.

Looking for Full Specs?

Looking for the full specifications on this product? Not to worry, they are located above under the "Documentation" Tab just above by the product description.
