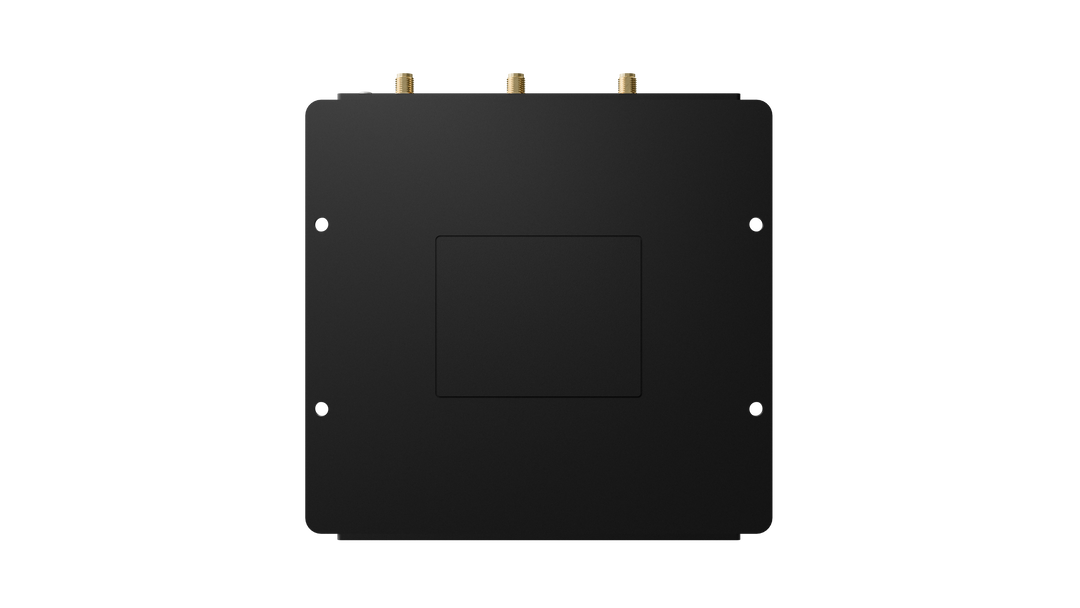

Peplink MAX Orbit 2 | Compact Multi-Orbit Router

Peplink MAX Orbit 2: Compact Multi-Orbit Router for Enterprise Satellite and 5G Connectivity

The Peplink MAX Orbit 2 is a compact, enterprise-ready multi-orbit router designed for organizations that need reliable internet connectivity in remote, mobile, and hard-to-wire locations. Built for satellite internet bonding, cellular failover, and hybrid WAN deployments, the MAX Orbit 2 helps IT teams combine multiple WAN connections into one more resilient network.

For businesses using Starlink, OneWeb, Iridium, 5G fixed wireless access, fiber, or Ethernet WAN, the MAX Orbit 2 provides a smarter way to improve uptime, reduce single-link dependency, and manage remote connectivity from one centralized platform. It is ideal for small enterprise sites, mobile command units, field offices, service vehicles, remote kiosks, and backup connectivity applications where reliable internet access is business-critical.

Bond Satellite and WAN Connections for Stronger Uptime

A single satellite terminal may not provide the reliability or bandwidth required for serious enterprise operations. The Peplink MAX Orbit 2 is built to support multi-terminal bonding, allowing organizations to combine satellite, cellular, and wired WAN connections for improved availability and performance.

With Peplink SpeedFusion technology, the MAX Orbit 2 supports Hot Failover, Smoothing, Bandwidth Bonding, and SpeedFusion Boost. These features help keep traffic moving when one connection becomes unstable, congested, obstructed, or unavailable. For enterprise IT buyers, this means a more dependable network for remote users, critical applications, and always-on business operations.

Centralized Cloud Management with Peplink InControl

Managing multiple satellite and WAN services can be difficult when each provider uses a separate portal. The MAX Orbit 2 simplifies administration through Peplink InControl, giving IT teams cloud-based visibility and control over supported satellite and WAN connections.

From one management platform, administrators can monitor link status, review WAN performance, manage connected devices, and make configuration changes remotely. This is especially valuable for distributed organizations, managed service providers, public safety teams, and field deployments where on-site IT support may not be practical.

Designed for Remote, Mobile, and Rugged Deployments

The MAX Orbit 2 is engineered for use outside the traditional server room. Its rugged, vibration-tolerant design, integrated GPS support, compact footprint, and wide operating temperature range make it a strong fit for demanding environments.

Whether installed in a vehicle, remote facility, field trailer, small branch, or backup communications kit, the MAX Orbit 2 delivers enterprise-grade routing in a compact form factor. It supports an operating temperature range of -40°F to 149°F, helping maintain connectivity in extreme conditions.

Enterprise Features in a Compact Form Factor

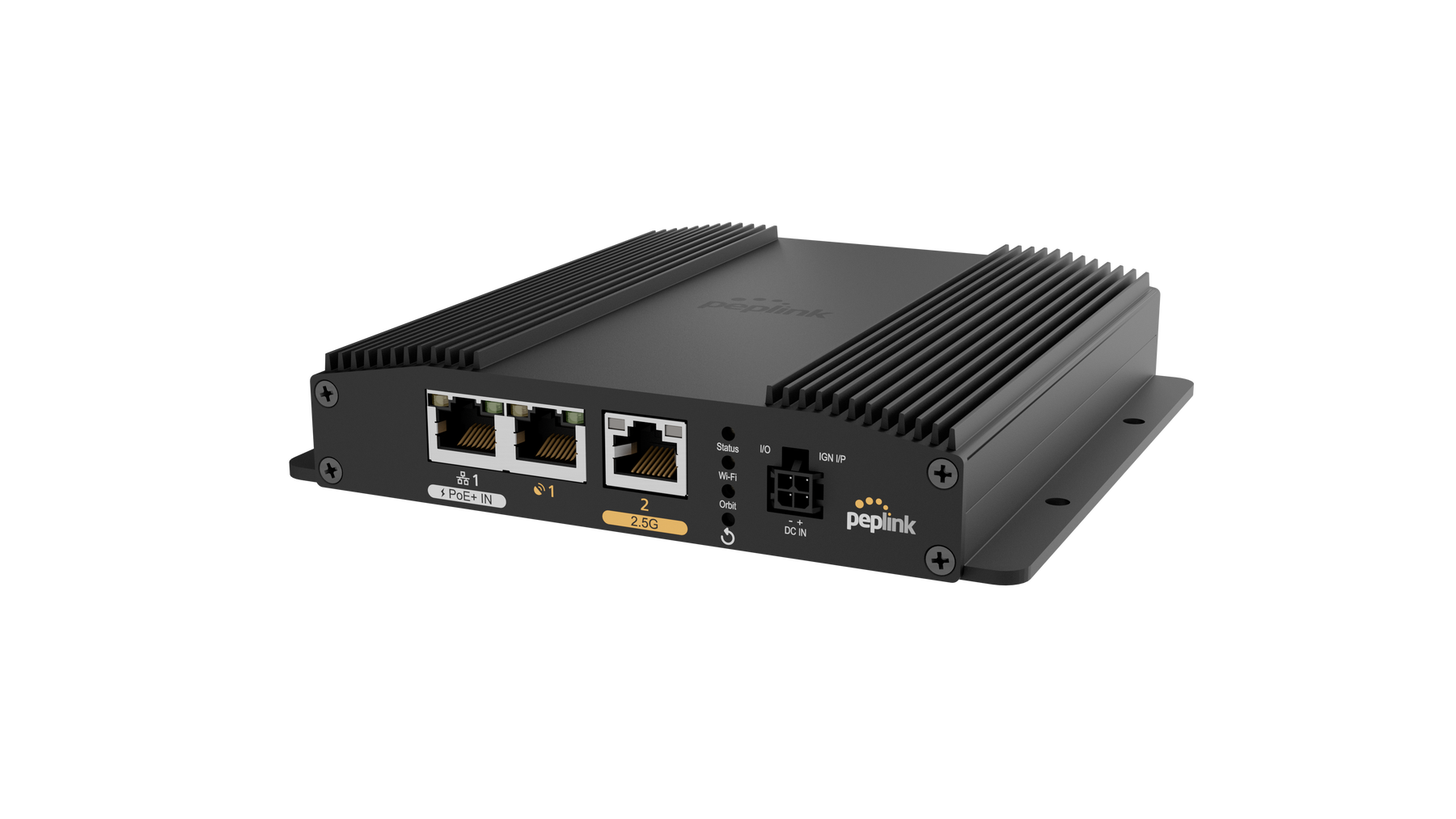

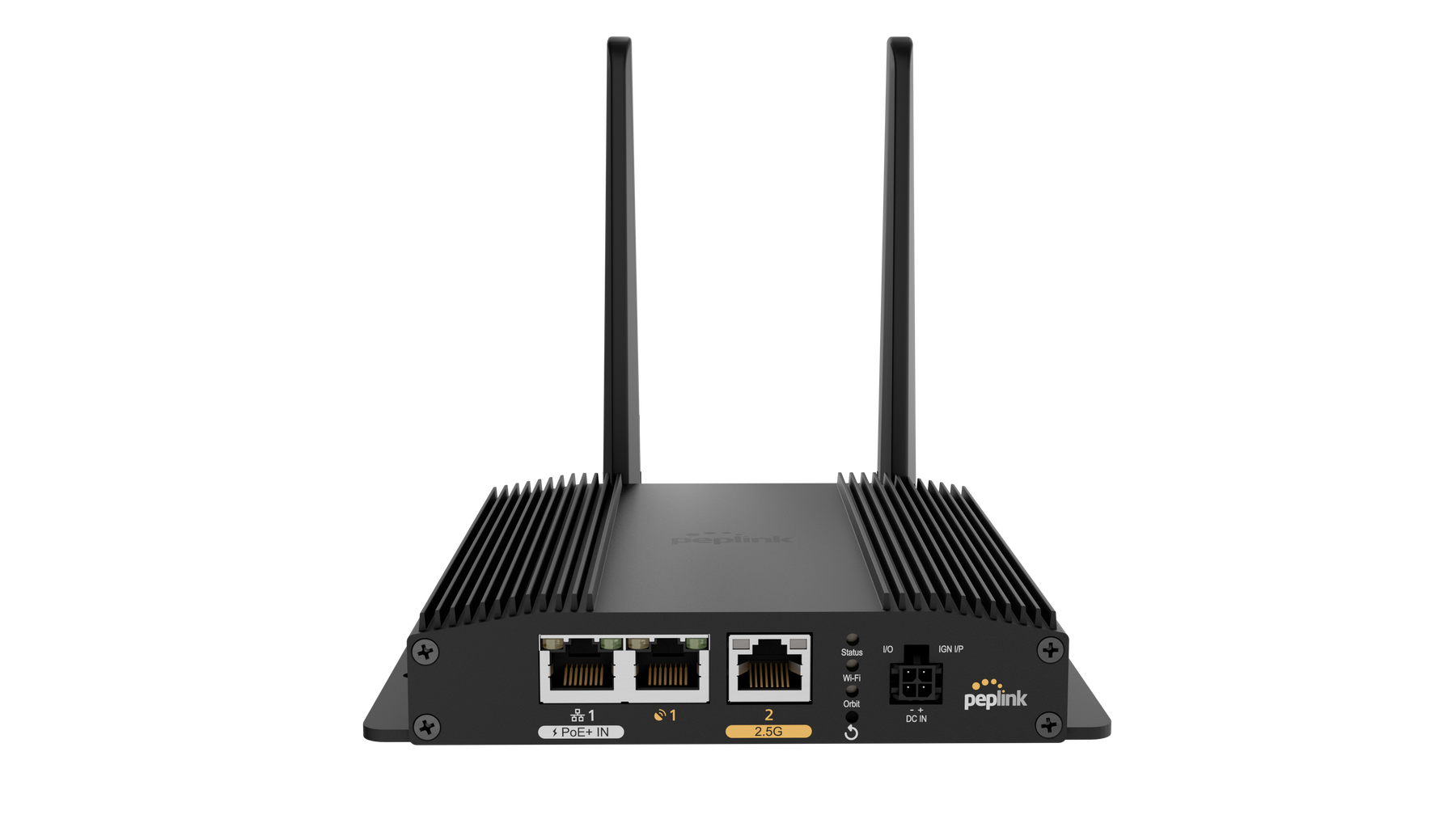

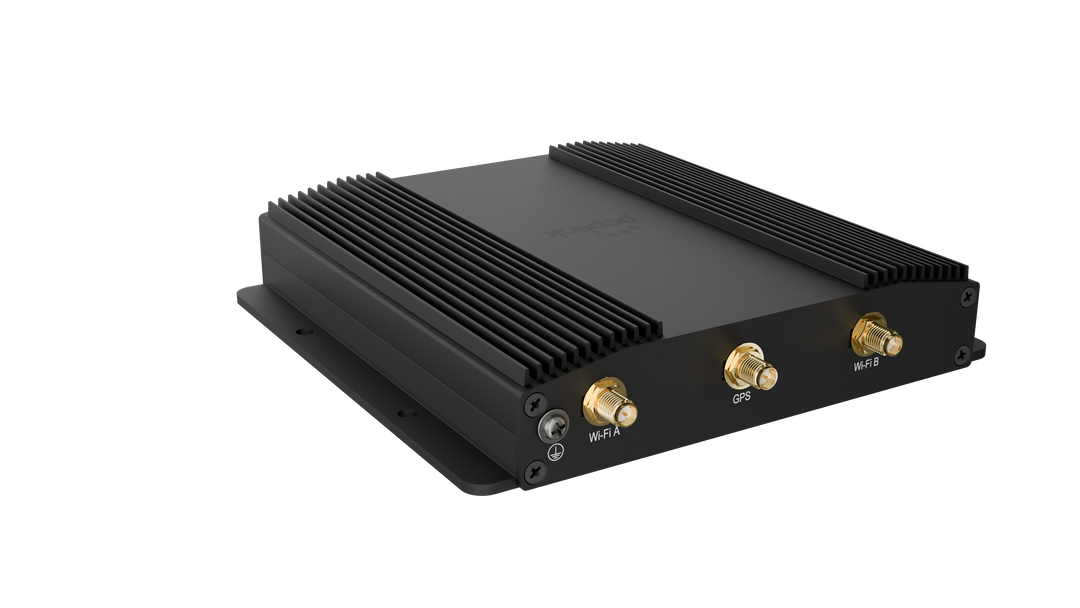

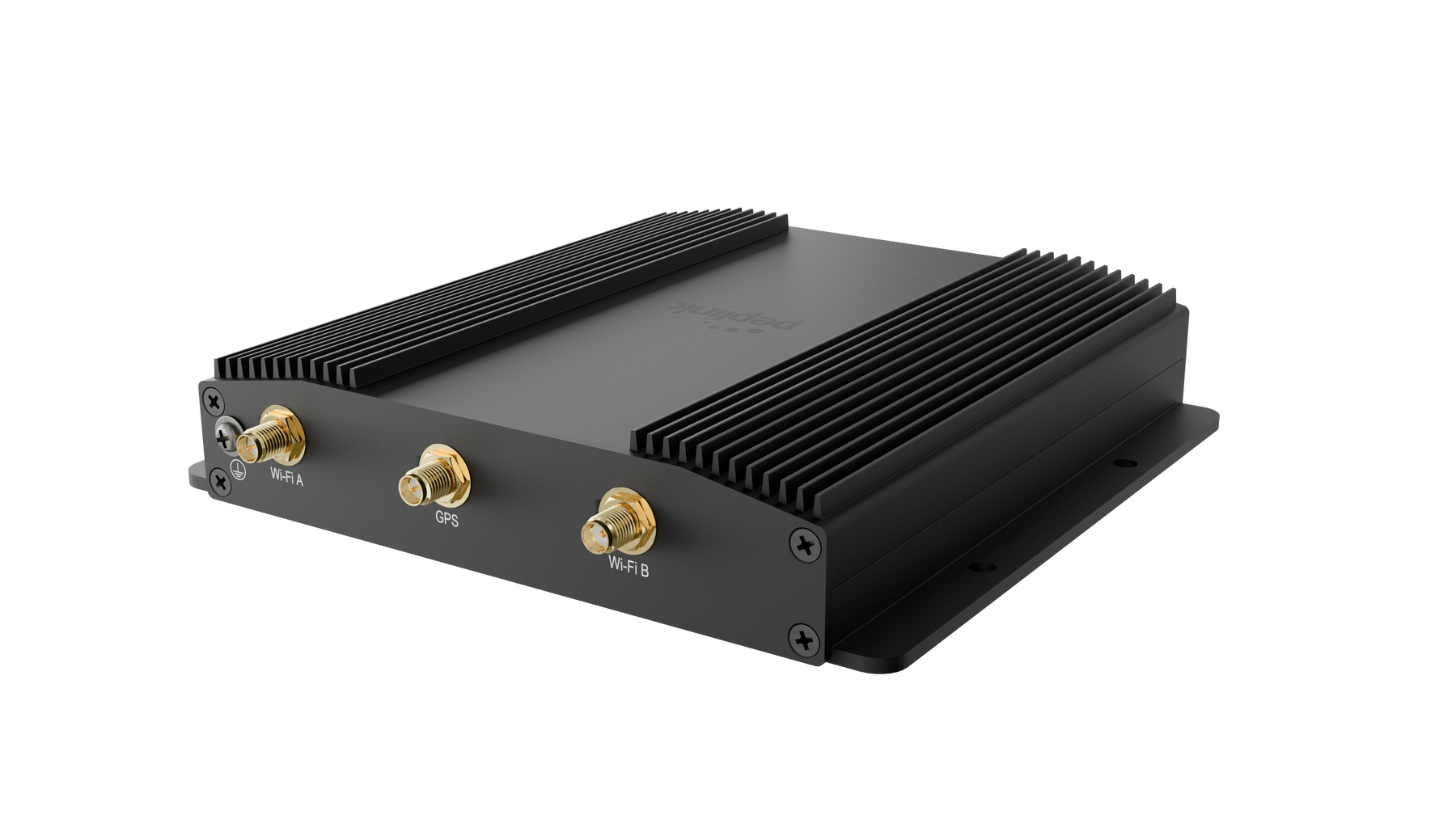

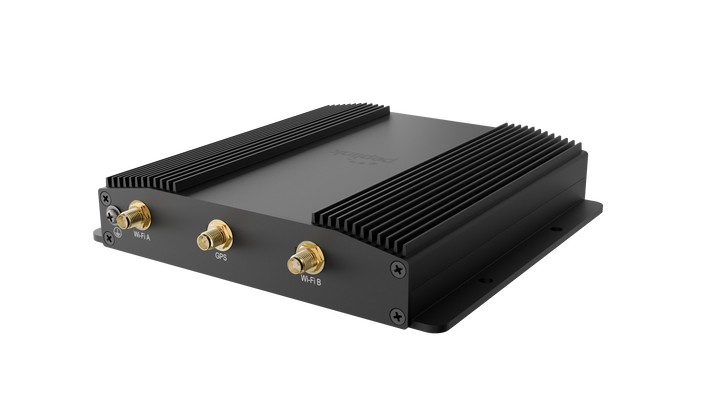

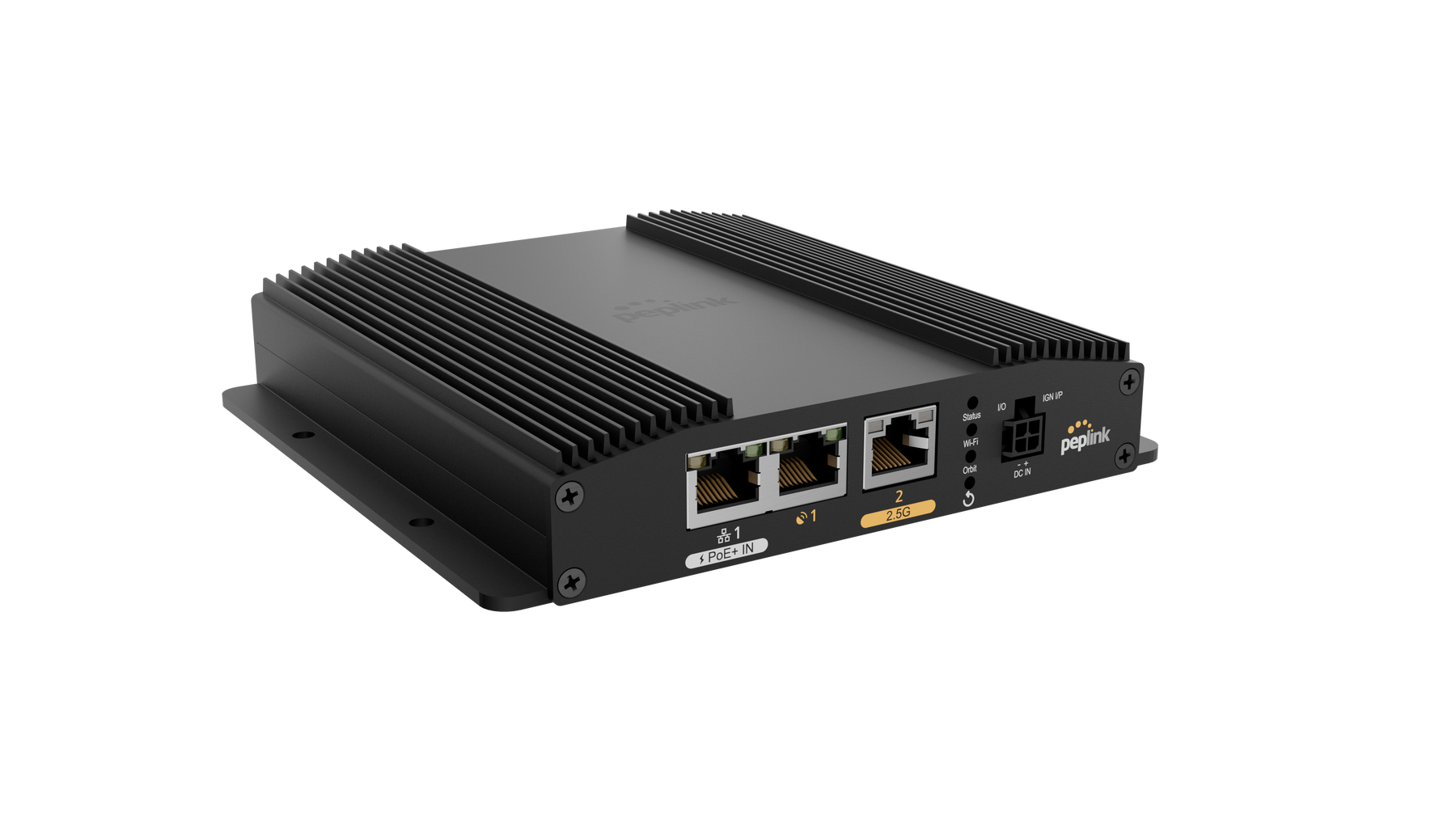

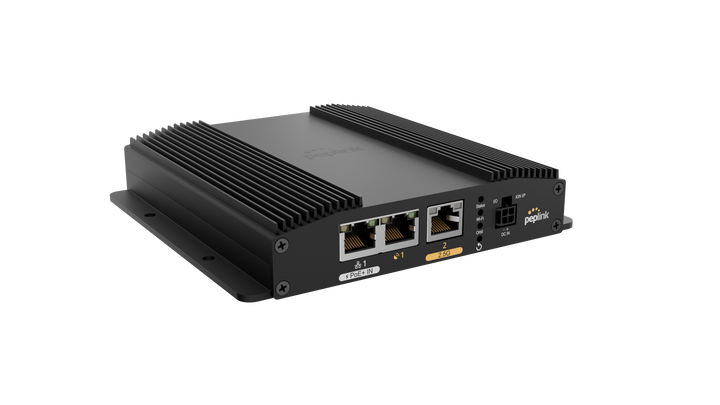

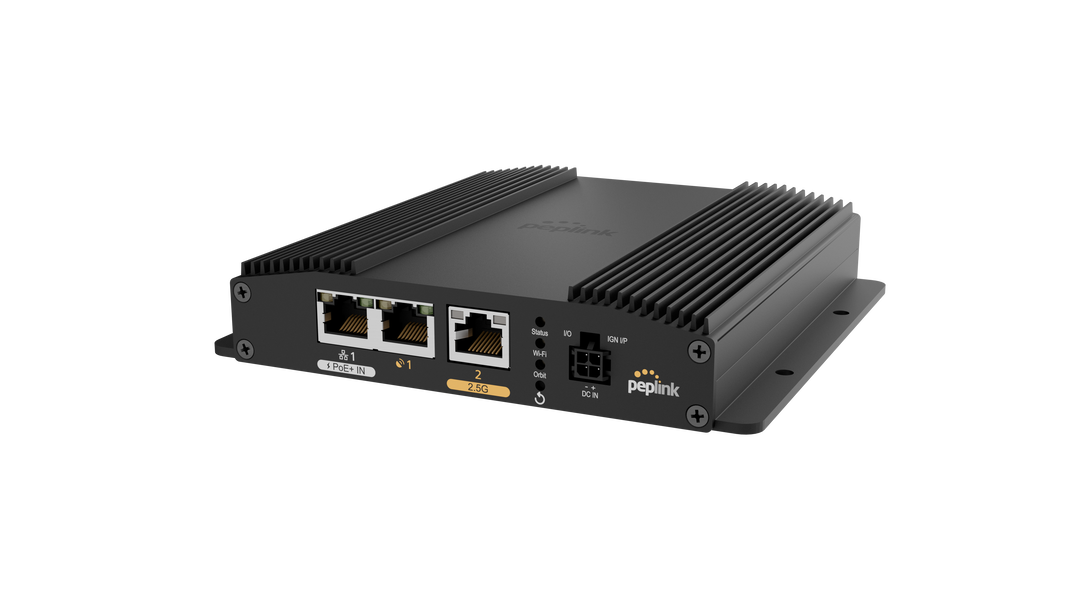

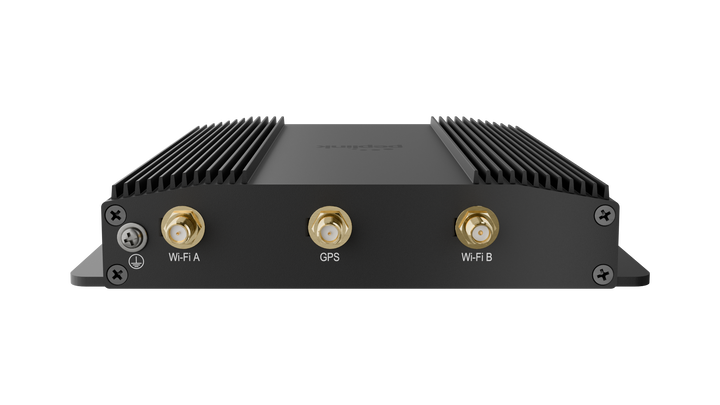

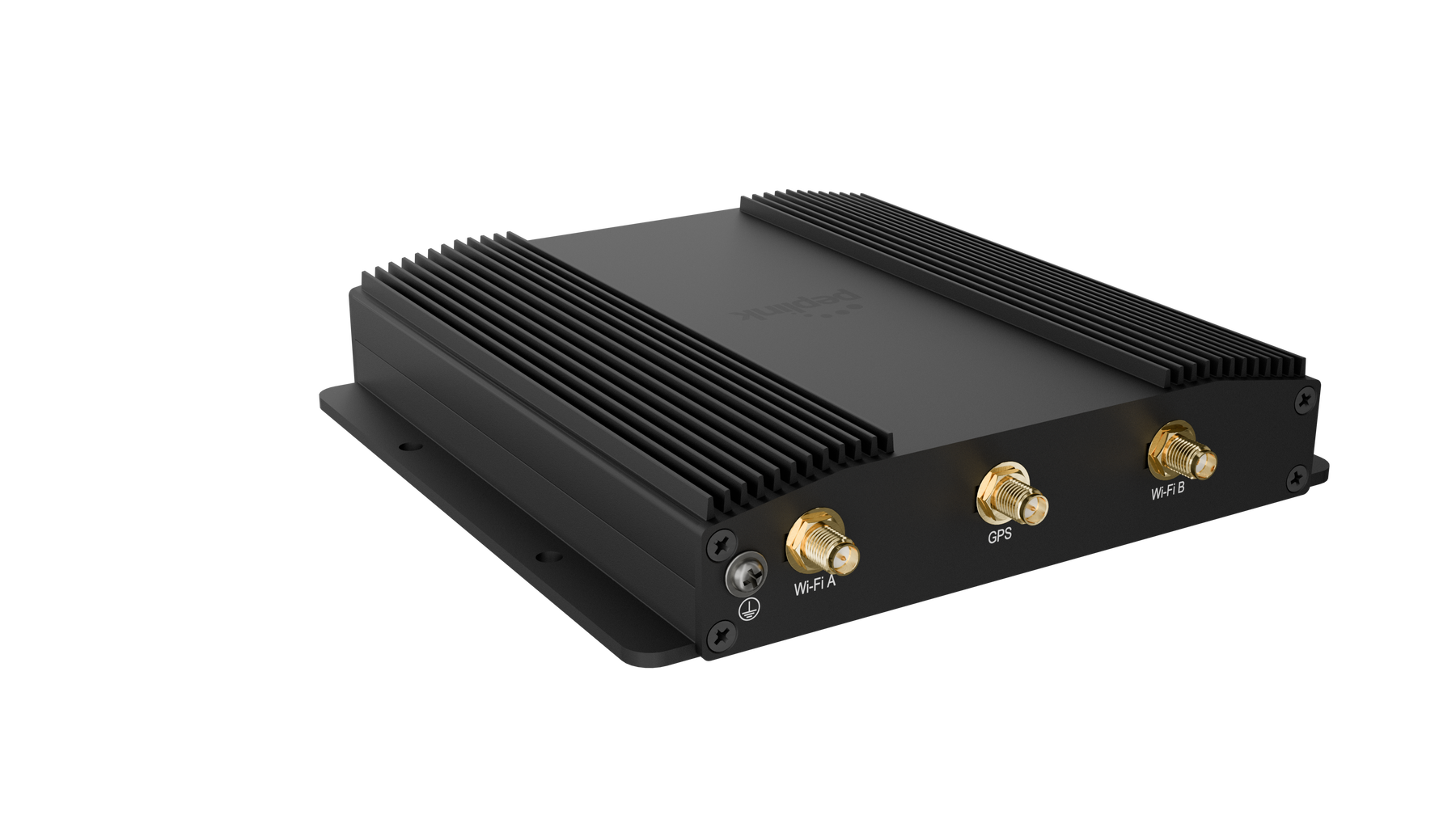

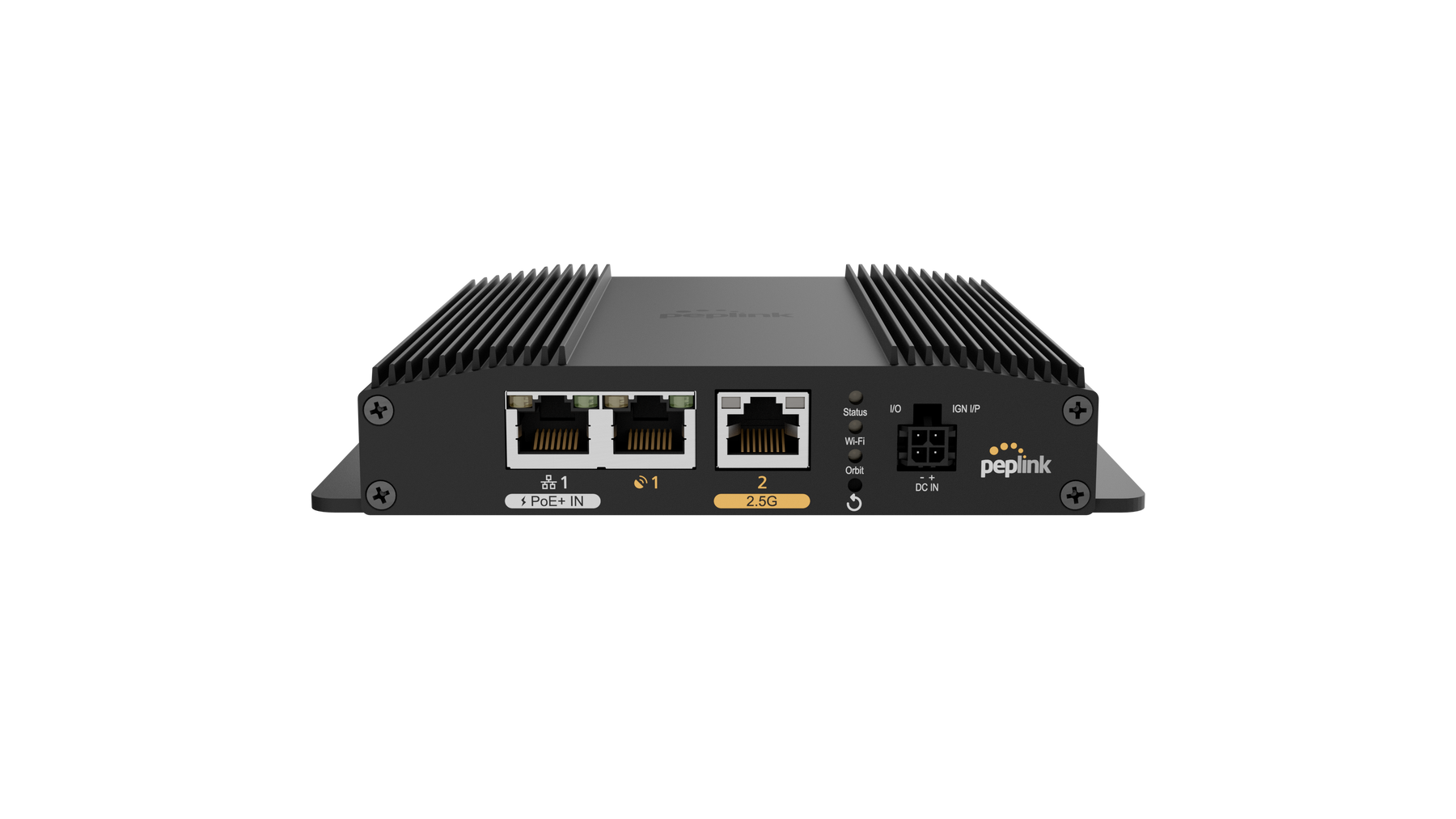

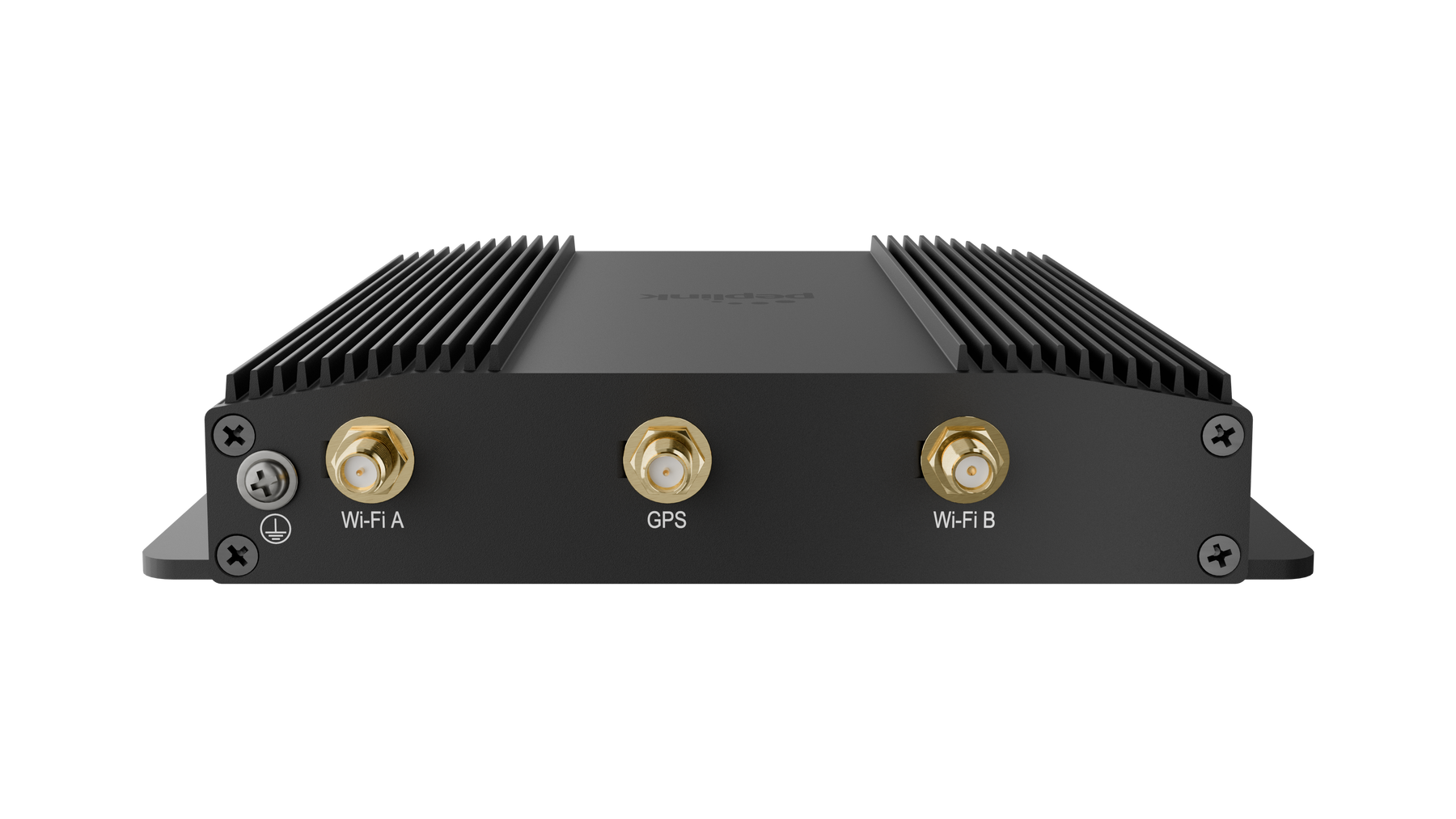

The MAX Orbit 2 includes a 2.5G Orbit port, 1G Orbit port, 1G LAN port with 802.3at PoE+ input, Wi-Fi 6, GPS, and Docker-based edge computing with 8GB internal storage. With up to 1 Gbps router throughput and support for 1–150 recommended users, it is a powerful option for smaller enterprise deployments that still require advanced WAN reliability.

The MAX Orbit 2 also supports SpeedFusion VPN throughput up to 400 Mbps with no encryption and up to 200 Mbps with 256-bit AES encryption. SpeedFusion VPN peer options include 2, 5, 10, or 20 peers depending on subscription and licensing.

Ideal Applications

The Peplink MAX Orbit 2 is well suited for enterprise IT teams that need reliable connectivity for:

• Small remote sites and branch locations
• Starlink business backup and bonding deployments
• Mobile command vehicles and service trucks
• Remote kiosks, field trailers, and temporary offices
• 5G plus satellite failover
• Public safety and emergency response connectivity
• Industrial, agriculture, and utility field operations
• Small business continuity and backup internet
• Managed service provider remote network deployments

Build a Smarter Remote Network with MAX Orbit 2

The Peplink MAX Orbit 2 gives enterprise IT buyers a compact but powerful way to improve remote connectivity. By combining satellite, cellular, and wired WAN connections with SpeedFusion bonding and centralized InControl management, MAX Orbit 2 helps organizations reduce downtime, simplify administration, and keep critical users connected wherever work happens.
