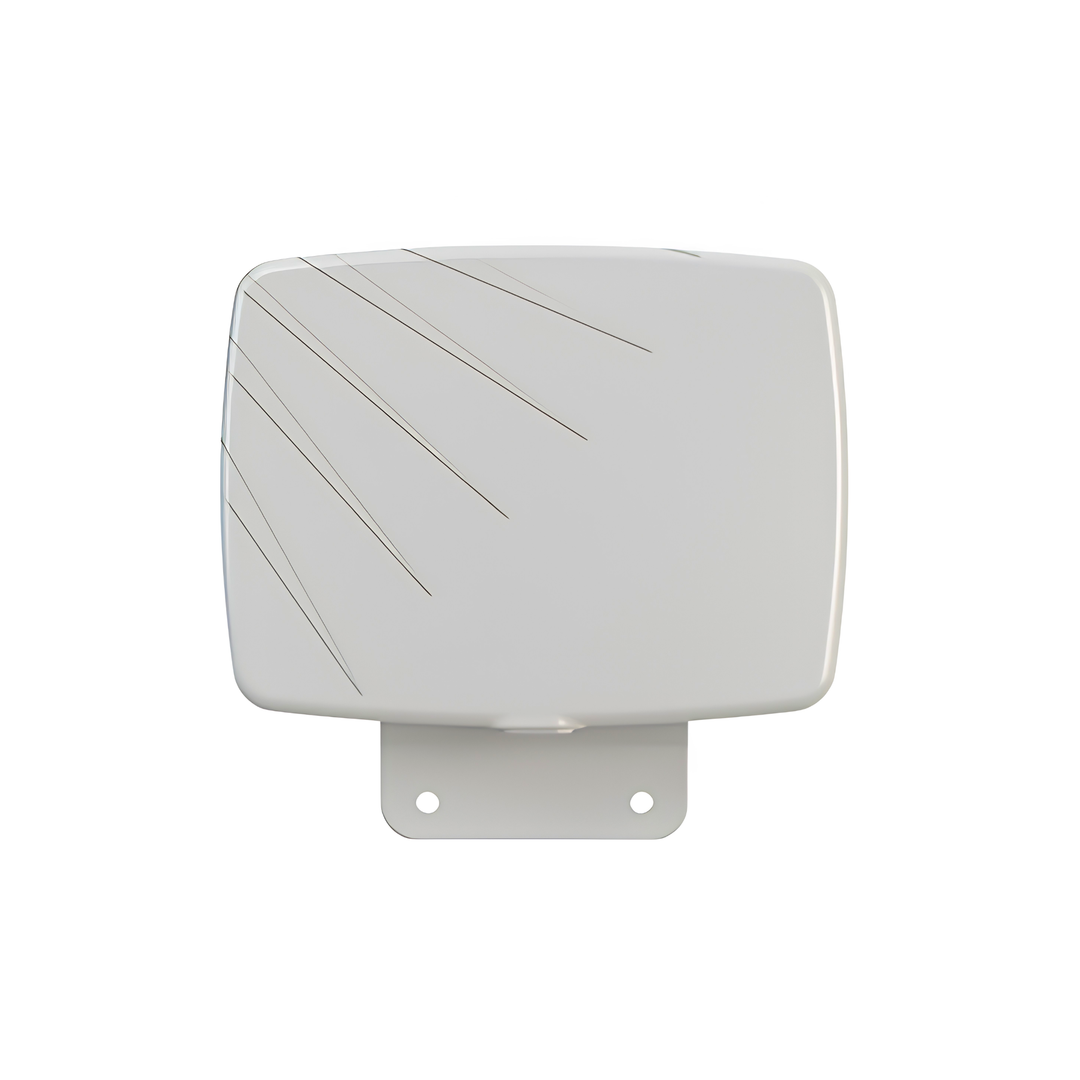

Introducing the Parsec Labrador 2x2 MIMO 4G/5G Cellular Antenna
The Parsec Labrador is a compact 2x2 MIMO omnidirectional cellular antenna designed to improve 4G LTE and 5G connectivity for fixed wireless, enterprise, retail, IoT, and failover installations. The two cellular antenna elements support MIMO operation while its low-profile white enclosure provides a cleaner appearance for locations where traditional external antennas may be visually intrusive.
The Labrador covers key cellular frequencies from 617 MHz through 5925 MHz, including major North American LTE and 5G bands. This makes it suitable for compatible cellular routers and modems operating across AT&T, Verizon, T-Mobile, FirstNet, and other supported networks.
Flexible Indoor and Outdoor Installation
The Labrador features an IP54-rated enclosure and supports wall or pole installation for indoor and outdoor applications. This 15-foot cable configuration uses two LSR200 coaxial cables with SMA male connectors, allowing direct connection to compatible dual-cellular antenna ports. The antenna measures approximately 8.13 × 7.78 × 1.72 inches, excluding the mounting bracket.
For optimal performance, we recommend installing the antenna away from metal, electrical equipment, and other antennas whenever possible. Its omnidirectional design provides 360-degree horizontal coverage and eliminates the need to precisely aim the antenna toward a cellular tower.
Core Functions
- 2x2 MIMO Cellular: Two cellular antenna elements support MIMO operation with compatible cellular routers and modems.
- 4G LTE & 5G Coverage: Supports key North American cellular bands across 617–5925 MHz.
- Omnidirectional Reception: Provides 360-degree horizontal coverage for flexible fixed installations.
- 15 ft Low-Loss Cables: Includes two 15-foot LSR200 cellular cables for positioning the antenna away from the router.
- Indoor / Outdoor Installation: IP54 construction supports wall or pole mounting in protected outdoor and indoor environments
