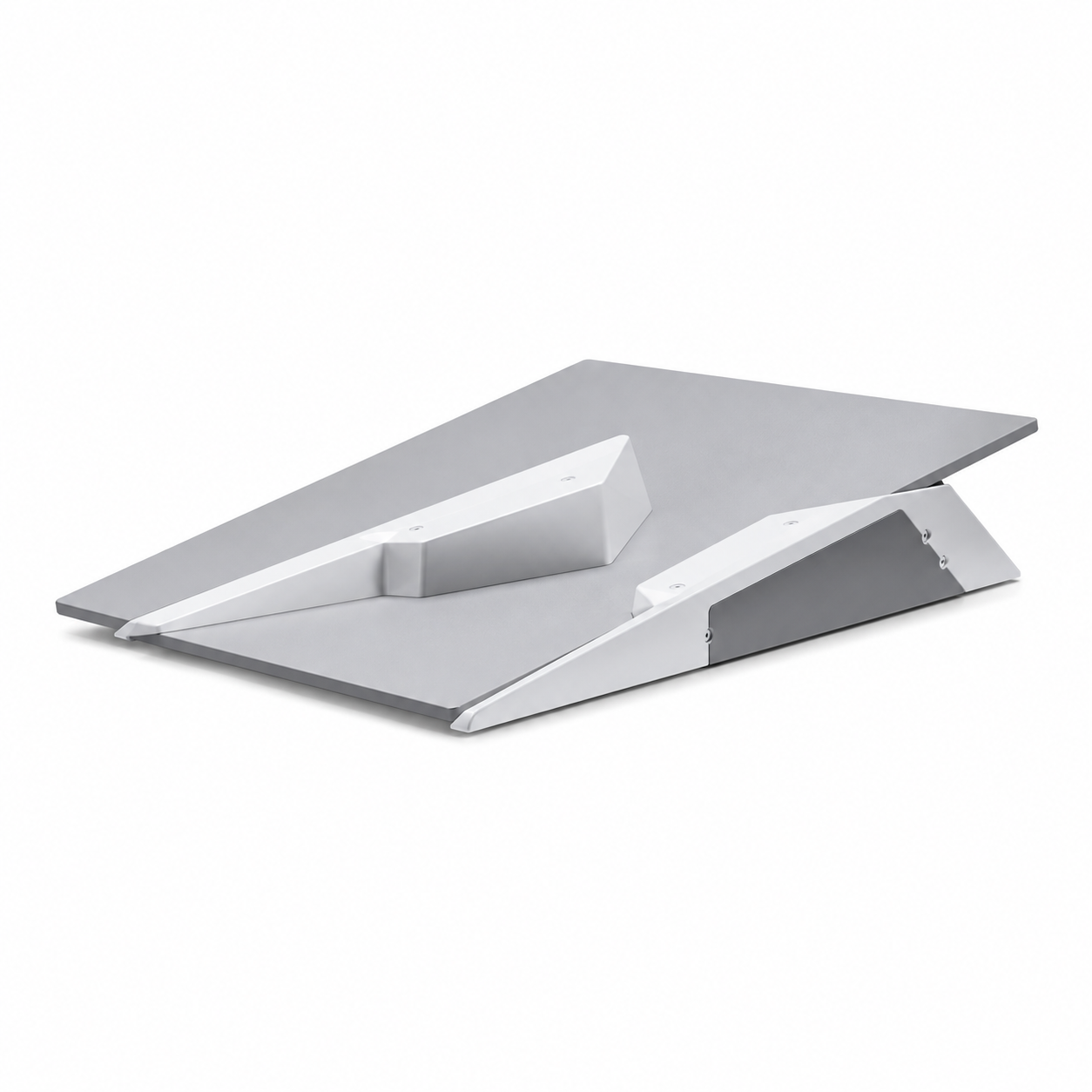

Wedge Mount for Starlink Performance Gen 3

The Starlink Performance Wedge Mount provides a secure, purpose-built mounting solution for the Starlink Performance Gen 3 antenna on RVs, boats, commercial vehicles, and other mobile platforms. Designed specifically for Starlink Performance hardware, it creates a durable mounting foundation while positioning the antenna at an intentional 8-degree angle.

That slight tilt serves an important purpose: it encourages rainwater to shed from the surface of the Starlink antenna instead of accumulating on it. Starlink specifically recommends the wedge configuration for many maritime and mobility applications because standing water and droplets can interfere with the antenna's connection to the satellite network.

8-Degree Tilt Designed for Mobile Starlink Performance Installations

Unlike a simple flat mounting plate, the Performance Wedge Mount positions the Starlink terminal at an 8-degree angle. This promotes water runoff while also allowing installers to orient the antenna toward the side of the vehicle or vessel with the fewest potential obstructions.

For mobile internet users, fleet operators, and marine installations, antenna placement matters. Starlink recommends a clear view of the sky and notes that obstructions can cause intermittent outages, dropped packets, or reduced average bandwidth. The wedge orientation gives installers additional flexibility to position the antenna appropriately for the installation environment.

The mount is constructed from durable, weather-resistant materials and is designed to withstand demanding outdoor conditions, including winds up to 280 km/h (174 mph) according to Starlink's specifications.

Designed Specifically for Starlink Performance Gen 3

This mount is compatible with the Starlink Performance system and is intended for customers installing the newer Performance hardware on a vehicle, RV, boat, or similar platform.

One particularly useful feature for existing Starlink installations is the mounting pattern. Starlink designed the Performance Wedge Mount with a bolt pattern matching the previous-generation Wedge Mount, which can simplify upgrades to the newer Starlink Performance Kit. Existing installations may therefore require less modification than starting with an entirely new mounting layout.

This makes the mount especially useful for commercial operators and mobile users transitioning from an earlier compatible Starlink installation.

Secure Installation for Vehicles, RVs and Boats

The Starlink Performance Wedge Mount is intended for installation on a structurally sound, horizontal surface. Starlink recommends using installation hardware appropriate for the mounting surface and removable thread locker on threaded fasteners in mobile environments to help prevent loosening from vibration.

For higher-speed vehicle applications, Starlink recommends orienting the mount so the lower end of the antenna points forward while traveling. In other installations, the lower side can generally be positioned away from nearby obstructions. Marine installations should also be arranged to prevent saltwater from collecting around the Starlink hardware.

The kit includes the Wedge Mount, eight M6 machine screws, four M6 lock nuts, and a 4 mm hex key, providing the primary Starlink-supplied hardware required for assembly.

Ideal Applications

The Starlink Performance Wedge Mount is well suited for:

• RV and motorhome Starlink Performance installations
• Boats and marine connectivity systems
• Commercial and service vehicles
• Mobile offices and remote-work vehicles
• Fleet connectivity deployments
• Existing Starlink installations upgrading to Performance Gen 3
• Other mobility applications requiring a secure exterior antenna mount

Purpose-Built Mounting for Starlink Performance

For customers investing in a Starlink Performance Gen 3 mobile internet system, the Performance Wedge Mount provides a manufacturer-designed solution rather than adapting a generic antenna mount. Its weather-resistant construction, 8-degree water-shedding angle, compatibility with the Performance terminal, and previous-generation mounting pattern make it especially practical for RV, marine, fleet, and commercial mobile deployments.

For installations where durability, proper antenna positioning, and compatibility with Starlink hardware are important purchasing considerations, the Performance Wedge Mount provides a straightforward way to complete a professional Starlink Performance installation.

Starlink Performance Gen 3 Wedge Mount Datasheet.pdf
