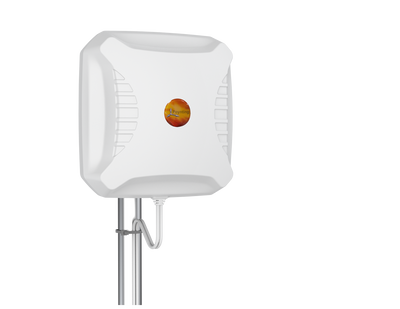

Poynting XPOL Directional 2x2 MIMO Cellular Antenna (US Edition)

$188.13 Regular price $198.03 Sale priceSave 5%

Part Number: A-XPOL-0002-V3-11

Availability:

Shipping:  Free Shipping on orders over $199

Description:  HIGH GAIN CROSS POLARISED LTE MIMO ANTENNA | 2x2 LTE (MIMO)


Only 5 items in stock!

  • Description
  • Videos
  • Documentation

The XPOL-2-5G-US is Poynting's third generation "V3" of this very popular Cross Polarized (XPOL). cellular band, 2X2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation "V2" but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding lo the performance of the antenna.

The XPOL-2-5G-US antenna includes the 617 to 894 MHz band and the newer 3400 - 3800 MHz bands. which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bonds: 617 - 894 MHz. 1710- 2170 MHz, 2300- 2700 MHz & 3400- 3800 MHz. In addition to the new bands, the gain in the 1700 MHz and 2.7 GHz is around 3 dB higher than the "V2" over the same frequency bands! Our "V2" antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.

Complete Specifications on Documentation Tab.

Features

  • 2-3dB higher gain over all the bands compared to "V2" Includes 617 to 894 MHz for US applications
  • New 3400 to 3800 MHz, 5G band with 11 dBi gain Consistent broadband performance
  • X-Polarised 2X2 MIMO Antenna
  • Wall or pole mountable
  • Lightweight & Rugged
  • Weatherproof & waterproof (IP65)
  • High pattern consistency across bands for 4G/5G carrier aggregation
  • 5 Meter 195 cable leads with 2x SMA Male

Application Areas

  • Outdoor antenna for Fixed Wireless Access (FWA) Consumer LTE/SG internet connectivity
  • Industrial & Commercial LTE/SG deployments Urban and rural household reception enhancement Agricultural & Farming LTE/5G data distribution Power, Energy & Water telemetry access
  • Oil & Gas communication systems
  • Municipal & Government systems
  • Repeaters & coverage enhancement amplifiers

Directional Antenna

The antenna featured on this page is a directional antenna. Directional antennas must be pointed towards a cellular tower to perform optimally. Directional antennas typically have a field of vision of approximately 10-25 degrees and when pointed properly achieve exceptional performance for long range applications. Directional antennas are often best suited for fixed installation applications such as for rural home or office use but can also be used in mobile applications where customers are comfortable aiming the antenna at the correct cell tower.

*For customers with dual modem applications note that if you are using multiple cellular providers, cellular towers may be located in different directions from one another making a single directional antenna difficult to use on more than one provider. Consider an omni directional antenna for this application or multiple directional antennas based on your use case.

FirstNet Ready

This device is FirstNet Ready! FirstNet is the nationwide public safety communications platform dedicated to America's first responders. Being built with AT&T, in public-private partnership with the FirstNet Authority, FirstNet utilizes Band-14, which is reserved for public safety but is also being marketed as available to the public for additional bandwidth capacity. In testing Band-14 has been made available during non-emergency situations to the public to provide additional bandwidth and coverages to customers who have a modem that supports FirstNet's Band-14. Not all modems that support Band-14 are "FirstNet Certified" however they typically can connect to Band-14 in most areas. Information on FirstNet certifications can be found on Specification sheets located on the Documentation Tab. Additional information about FirstNet's use and technology can be found in this article from our friends at the RV Mobile Internet Resource Center.

Band 71 Ready

This device supports Band 71. Band 71 is T-Mobile's rural cellular band that operates on 600mhz which provides significant increases in coverage on the T-Mobile network for customers traveling outside of urban areas. 5G ready devices that support Band 71 typically also support Band 71n which is the 5G band for T-Mobile. Note that not all devices are 5G devices so check the listing above but with or without 5G you will still achieve increased coverage on the T-Mobile network with any device that supports Band 71. For more information about Band 71, check out the Band 71 Guide from our friends at the Mobile Internet Resource Center
