Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 & Suction Mount

Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 & Suction Mount

Name: Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 & Suction Mount
Brand: Parsec
SKU: PTA2AB2L06W-T9-SC
Price: 104.75 USD
Availability: InStock

$104.75

Shipping calculated at checkout.

Part Number: PTA2AB2L06W-T9-SC

Availability:

Shipping: Free Shipping on orders over $199

Description: Indoor 2x2 MIMO 5G antenna with Suction Cups SMA/TS-9 Connectors

Quantity

[{"id":44620213387363,"title":"6' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","option1":"6' Cables","option2":"SMA \u0026 TS9","option3":"Suction Cup Mount","sku":"PTA2AB2L06W-T9-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 \u0026 Suction Mount - 6' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","public_title":"6' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","options":["6' Cables","SMA \u0026 TS9","Suction Cup Mount"],"price":10475,"weight":2722,"compare_at_price":10475,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44567956750435,"title":"10' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","option1":"10' Cables","option2":"SMA \u0026 TS9","option3":"Suction Cup Mount","sku":"PTA2AB2L10W-T9-SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 \u0026 Suction Mount - 10' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","public_title":"10' Cables \/ SMA \u0026 TS9 \/ Suction Cup Mount","options":["10' Cables","SMA \u0026 TS9","Suction Cup Mount"],"price":10475,"weight":2722,"compare_at_price":10475,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Parsec Albatross 2x2 MIMO 5G Antenna with SMA, TS-9 & Suction Mount

Description

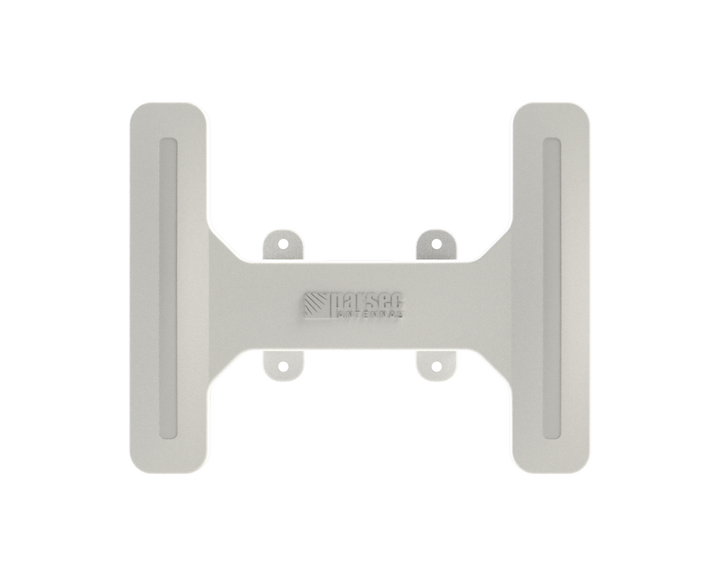

The Parsec Albatross 2x2 MIMO 5G antenna is a compact indoor cellular antenna designed to improve 4G LTE and 5G connectivity for cellular routers, gateways, modems, and fixed wireless equipment. Its small size, wideband support, and flexible mounting options make it a great fit for enterprise, retail, temporary, and mobile deployments, including RV and marine applications.
Flexible 5G 4x4 MIMO Options
Many modern 5G routers use 4x4 MIMO, and the Albatross gives you several ways to build that setup:
- Use one Albatross with your router's paddle antennas — on many Peplink routers, a common setup is the Albatross on ports A and D, with factory paddle antennas remaining on B and C.
- Use two Albatross antennas to externally position all four cellular antenna elements.
- Use a single integrated 4x4 MIMO antenna such as the Parsec Akita Lite.
This flexibility makes the Albatross a great choice for customers who want better antenna placement without necessarily replacing every antenna connected to their router.
Compact 2x2 MIMO Design

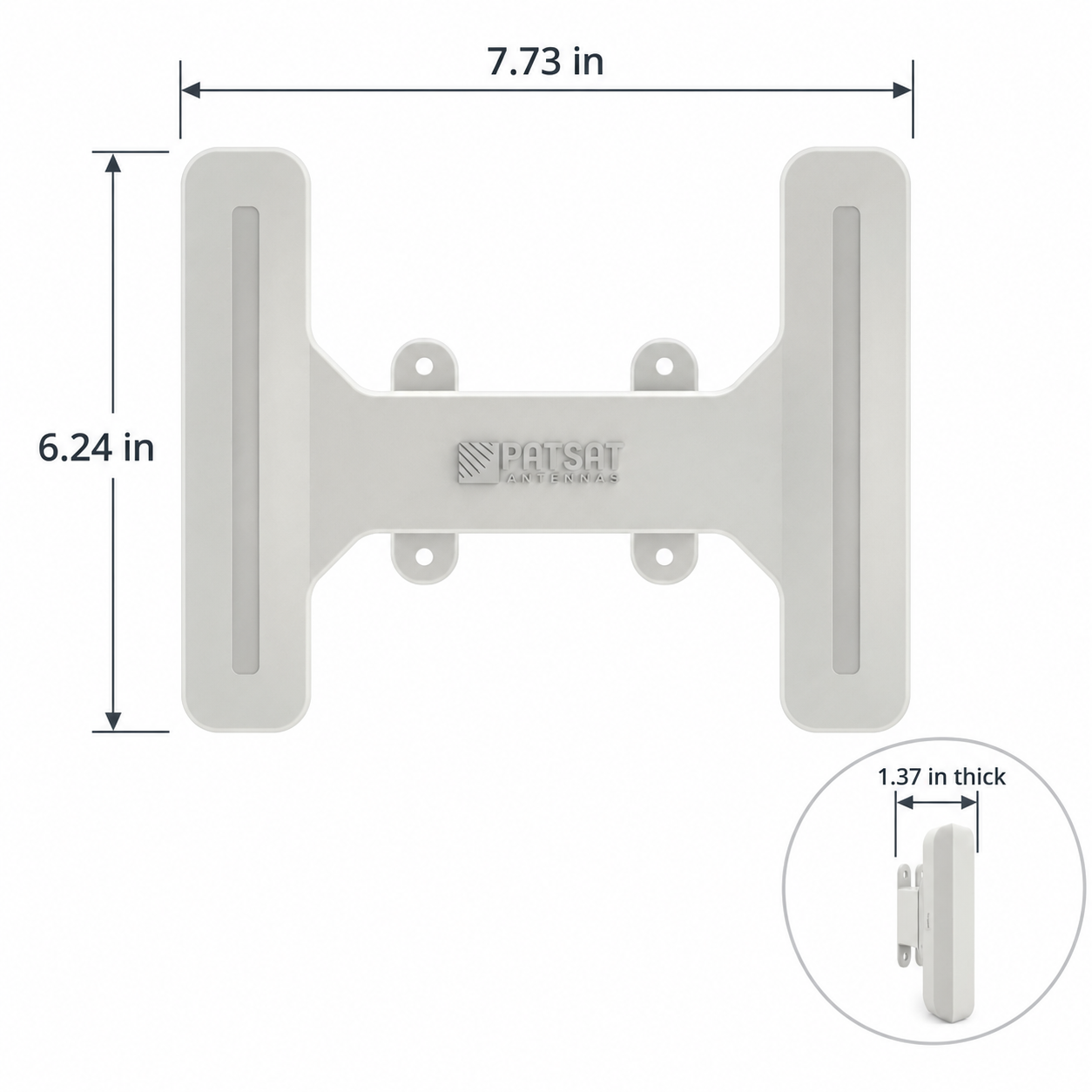

At just 7.73" × 6.24" × 1.37", the Albatross is exceptionally compact and easy to position near a window, higher on a wall, or away from furniture and other obstructions that may impact cellular performance.
Its omni-directional 2x2 MIMO design supports approximately 600 MHz to 6 GHz, covering a broad range of 4G LTE and sub-6 GHz 5G frequencies.
Choose the Configuration That Fits Your Installation
Cable Length:
- 6-foot cables
- 10-foot cables
Mounting:
- Wall Mount
- Suction Mount
Connector Options:
- SMA
- SMA & TS-9
The Albatross is designed for indoor use and is well suited for Peplink routers, enterprise cellular WAN, fixed wireless, retail, IoT, kiosks, temporary installations, and mobile deployments such as RV and marine applications.

Specifications

Video
Documentation

Albatross-Data-Sheet.pdf
Parsec Albatross Install Guide.pdf

The Parsec Albatross 2x2 MIMO 5G antenna is a compact indoor cellular antenna designed to improve 4G LTE and 5G connectivity for cellular routers, gateways, modems, and fixed wireless equipment. Its small size, wideband support, and flexible mounting options make it a great fit for enterprise, retail, temporary, and mobile deployments, including RV and marine applications.

Flexible 5G 4x4 MIMO Options

Many modern 5G routers use 4x4 MIMO, and the Albatross gives you several ways to build that setup:

Use one Albatross with your router's paddle antennas — on many Peplink routers, a common setup is the Albatross on ports A and D, with factory paddle antennas remaining on B and C.
Use two Albatross antennas to externally position all four cellular antenna elements.
Use a single integrated 4x4 MIMO antenna such as the Parsec Akita Lite.

This flexibility makes the Albatross a great choice for customers who want better antenna placement without necessarily replacing every antenna connected to their router.

Compact 2x2 MIMO Design

At just 7.73" × 6.24" × 1.37", the Albatross is exceptionally compact and easy to position near a window, higher on a wall, or away from furniture and other obstructions that may impact cellular performance.

Its omni-directional 2x2 MIMO design supports approximately 600 MHz to 6 GHz, covering a broad range of 4G LTE and sub-6 GHz 5G frequencies.

Choose the Configuration That Fits Your Installation

Cable Length:

6-foot cables
10-foot cables

Mounting:

Wall Mount
Suction Mount

Connector Options:

SMA
SMA & TS-9

The Albatross is designed for indoor use and is well suited for Peplink routers, enterprise cellular WAN, fixed wireless, retail, IoT, kiosks, temporary installations, and mobile deployments such as RV and marine applications.

Specifications

Antenna Type	Indoor Omni-Directional Cellular Antenna
Cellular Configuration	2x2 MIMO
Cellular Frequency Range	617-894 MHz, 1710-2700 MHz, 3400-4000 MHz, 5150-5925 MHz
Supported North American LTE Bands	B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
Supported North American 5G Bands	n2, n5, n12, n25, n26, n41, n48, n66, n71, n77
Dimensions	7.73 in × 6.24 in × 1.37 in
Mounting	Built-in mounting bracket; wall-mount and suction-mount configurations available
RF Cable Length	6 ft or 10 ft, depending on configuration
Cellular Connector	SMA Male; SMA & TS-9 configurations available
Cellular Cable Type	LSR200
Polarization	Linear
Maximum Input Power	5 Watts
Operating Temperature	-22°F to 180°F (-30°C to 85°C)
Ingress / Environment	Indoor Use
Optional GPS / GNSS	Available on select configurations

Albatross-Data-Sheet.pdf

Parsec Albatross Install Guide.pdf

Omni-Directional Antenna

This antenna is an omni-directional antenna. Omni-directional antennas are designed to pick up signals in a 360-degree pattern around the antenna and do not require that they be aimed or pointed at the cellular or WIFI broadcasting tower. Omni-directional antennas offer a blend of performance and ease of use over directional antennas that may have higher performance and gain specifications. Omni-directional antennas also perform well if a customer is utilizing multiple cellular or WIFI connections that may be broadcasting in different directions, for example if a customer has data plans from multiple cellular providers and cell towers are in different directions. Omni-directional antennas are the preferred style of antenna for mobile travelers and those who change their location and method of connecting to the internet frequently as they offer solid performance without the need to point the antenna.

Directional antennas may be better suited than omni-directional antennas for customers with fixed locations such as rural home or business customers.

FirstNet Ready

This device is FirstNet Ready! FirstNet is the nationwide public safety communications platform dedicated to America's first responders. Being built with AT&T, in public-private partnership with the FirstNet Authority, FirstNet utilizes Band-14, which is reserved for public safety but is also being marketed as available to the public for additional bandwidth capacity. In testing Band-14 has been made available during non-emergency situations to the public to provide additional bandwidth and coverages to customers who have a modem that supports FirstNet's Band-14. Not all modems that support Band-14 are "FirstNet Certified" however they typically can connect to Band-14 in most areas. Information on FirstNet certifications can be found on Specification sheets located on the Documentation Tab. Additional information about FirstNet's use and technology can be found in this article from our friends at the RV Mobile Internet Resource Center.

Band 71 Ready

This device supports Band 71. Band 71 is T-Mobile's rural cellular band that operates on 600mhz which provides significant increases in coverage on the T-Mobile network for customers traveling outside of urban areas. 5G ready devices that support Band 71 typically also support Band 71n which is the 5G band for T-Mobile. Note that not all devices are 5G devices so check the listing above but with or without 5G you will still achieve increased coverage on the T-Mobile network with any device that supports Band 71. For more information about Band 71, check out the Band 71 Guide from our friends at the Mobile Internet Resource Center.
