Antenna Max S Power Bundle

Everything needed to power the Peplink Antenna Max S enclosure — in one tested, ready-to-install kit.

This Power Bundle provides all the components required to run both the Peplink router and Starlink Mini inside the Antenna Max S enclosure using a single 90W PoE (802.3bt) cable. Designed specifically for RV installations, this kit makes powering the Antenna Max S simple, clean, and reliable.

🔋 What This Bundle Does

The Antenna Max S requires 90W 802.3bt PoE to power:

• Your Peplink router (via PoE)

• Starlink Mini (via dedicated output on the splitter)

Most RVs only provide 12V DC, so this bundle converts your RV’s 12V power into the correct 90W PoE standard — and sends both data and power up one Ethernet cable to the roof.

Inside the enclosure, the splitter distributes that power to both devices.

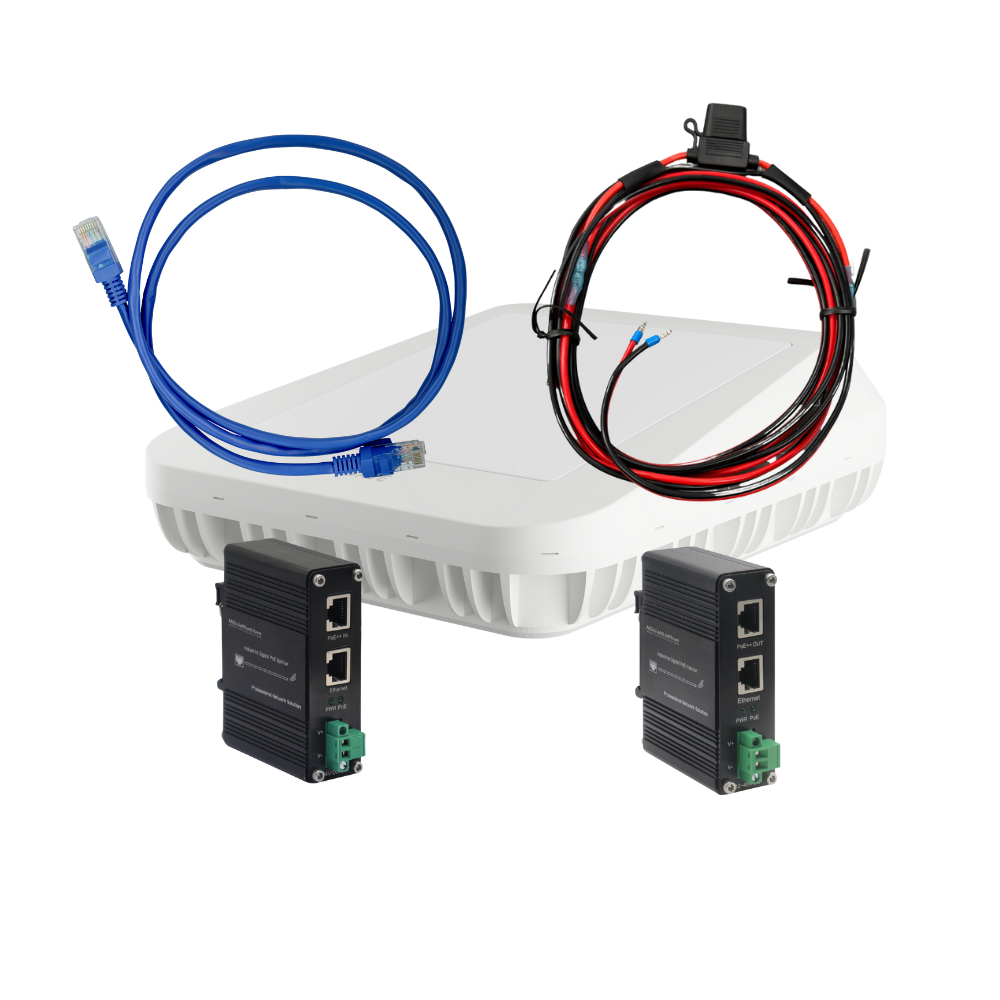

🧩 What’s Included

Everything you need — nothing you don’t:

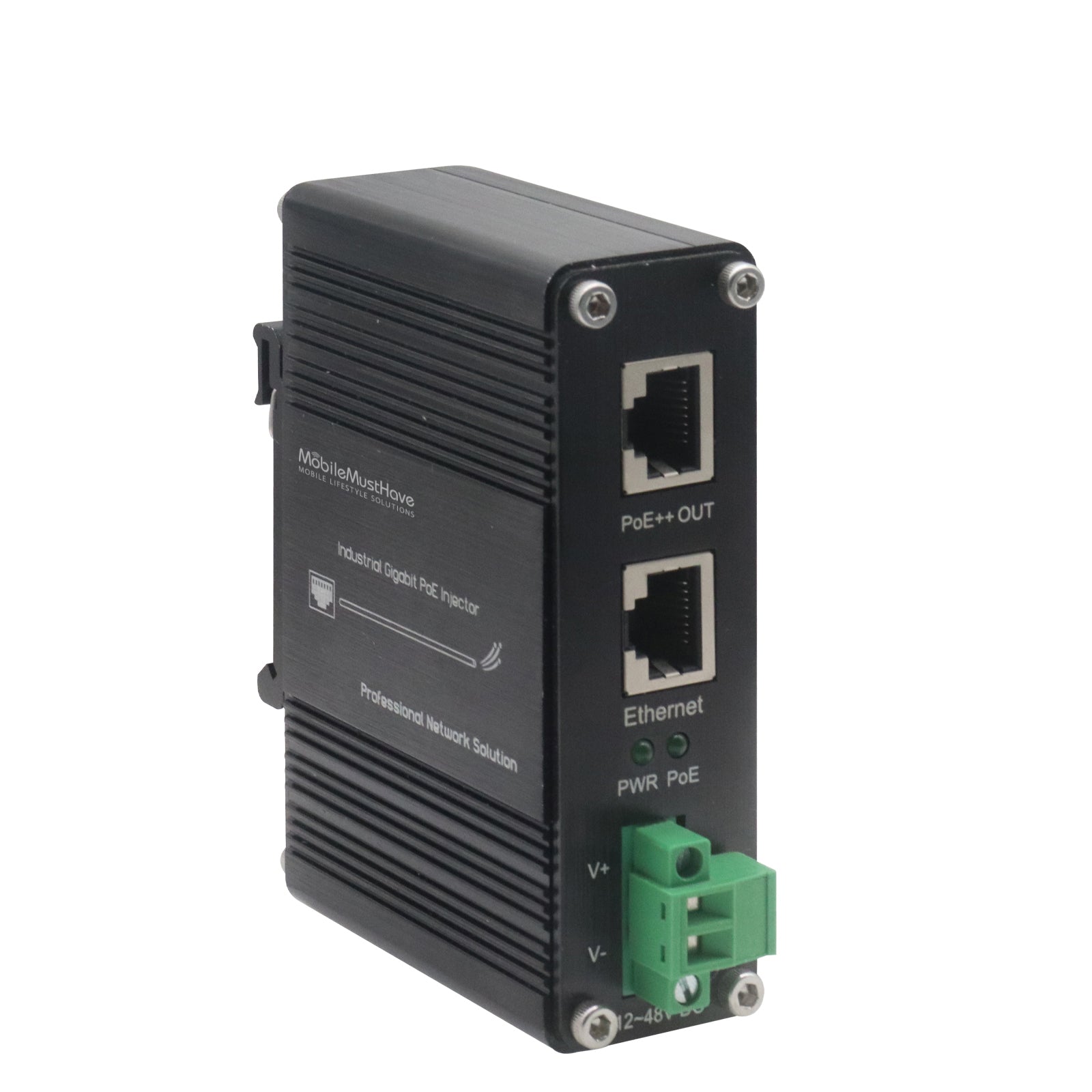

✔ 12V → 90W PoE Injector (802.3bt)

• Accepts 12V–48V DC input

• Outputs true 90W PoE+ (802.3bt)

• Sends both power and data up a single Ethernet cable

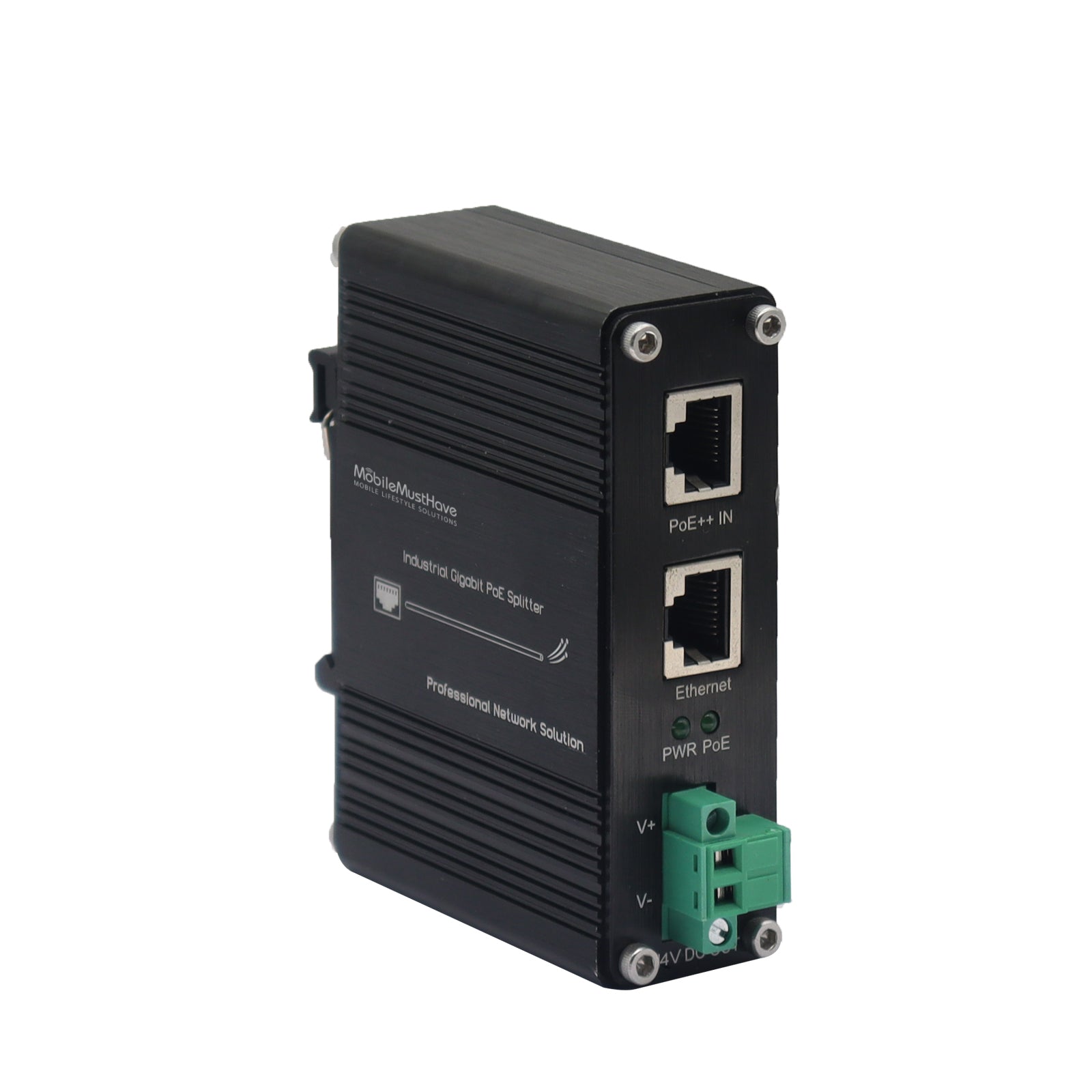

✔ 90W PoE Splitter (inside the Antenna Max S)

• Converts 90W PoE into:

  • PoE power for your Peplink router

  • Dedicated power output for your Starlink Mini

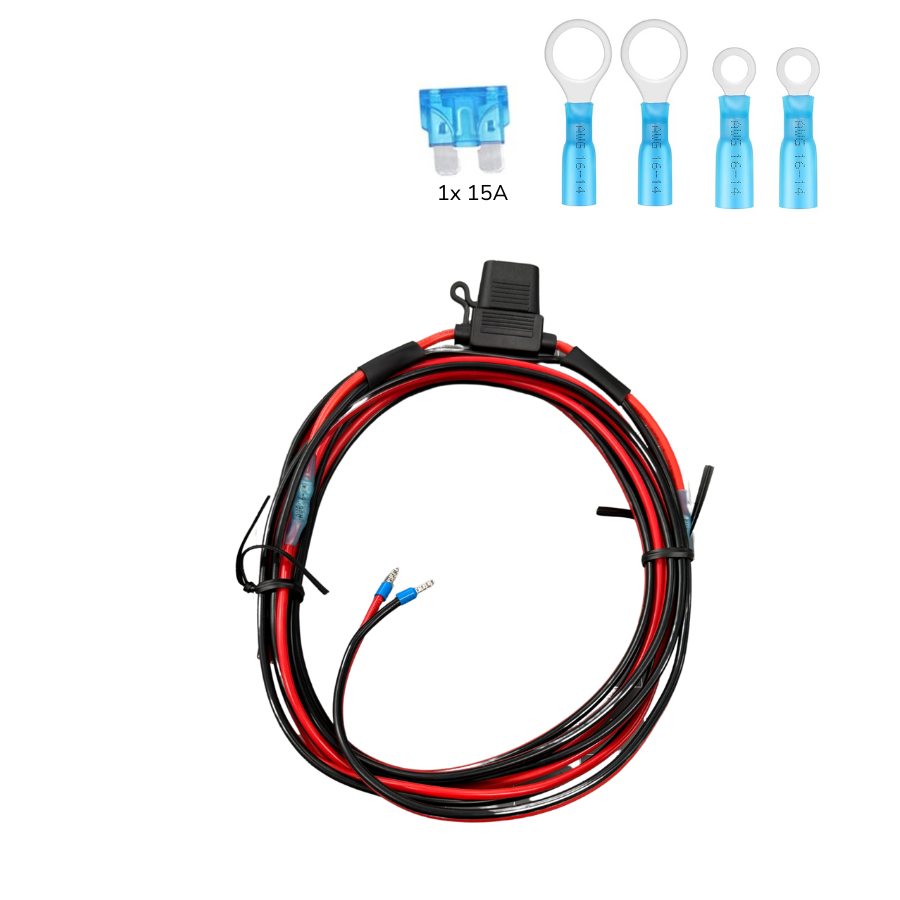

✔ 12V Fused Power Wire

• Pre-terminated and ready to run to your RV’s DC system

• Built-in inline fuse for safe operation

✔ Outdoor-Rated Ethernet Cable

• Sends data + power from the injector to the antenna

• UV-resistant and ideal for rooftop routing

🌐 Compatible With

• Peplink Antenna Max S (required)

• Any supported Peplink router placed inside the enclosure

• Starlink Mini

🛠️ How You’ll Use It

1. Connect the fused 12V wire from your RV power to the 90W injector.

2. Run the included Ethernet cable to the Antenna Max S.

3. Inside the enclosure, plug the cable into the 90W PoE splitter.

4. Splitter powers both the Peplink router and Starlink Mini.

5. Done — a clean single-cable rooftop power solution.

🚐 Why This Bundle Exists

Peplink hasn’t released an official power kit yet, so MobileMustHave designed and tested a complete solution using high-quality components that meet the exact 90W PoE requirements of the Antenna Max S + Starlink Mini setup.

This is the same kit we install and run on our own RVs.

🧾 In Summary

If you purchased the Antenna Max S and you want to power it correctly, this is the kit you need.
Just add the Antenna Max S enclosure, your Peplink router, and your Starlink Mini, and you’re ready to go.
