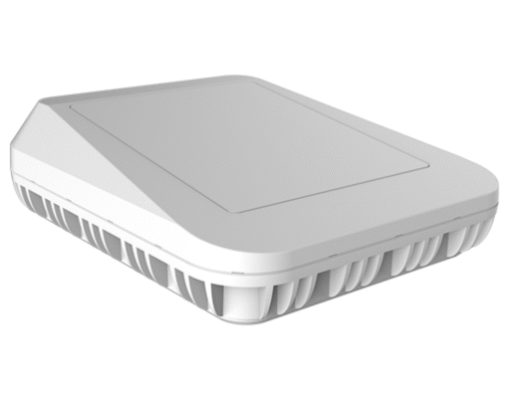

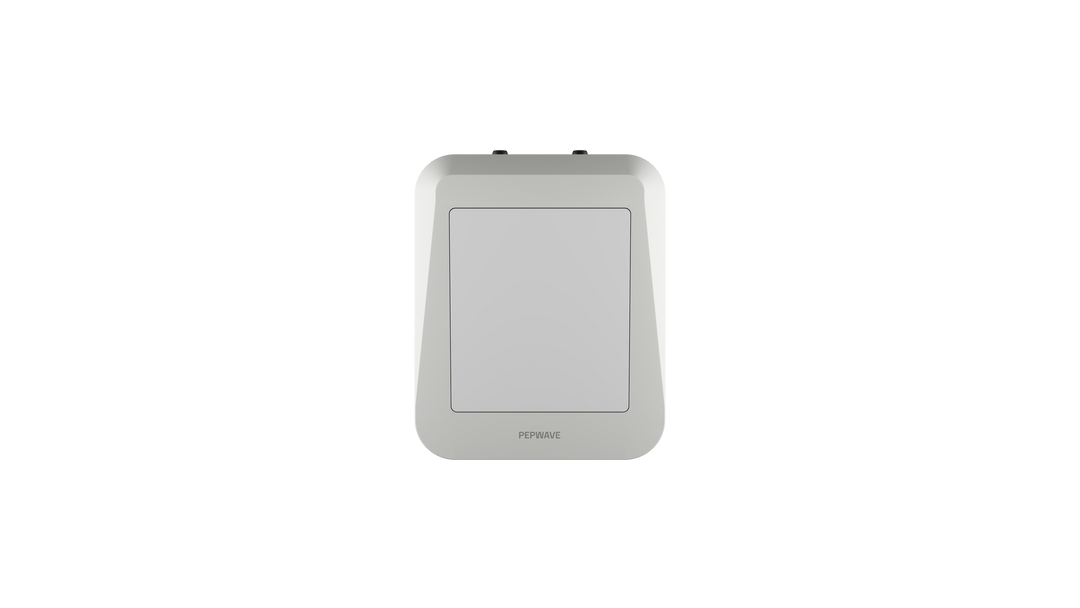

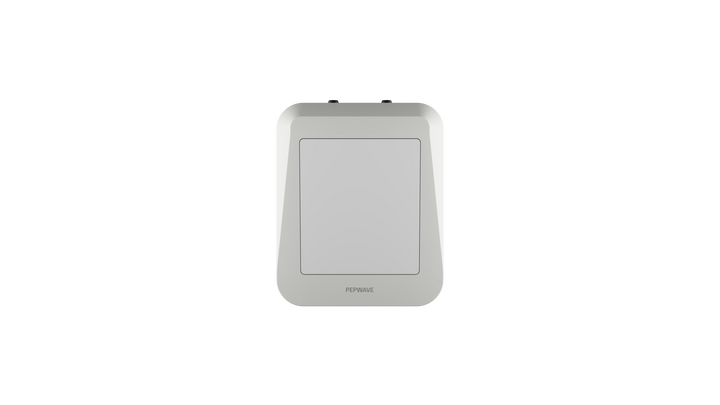

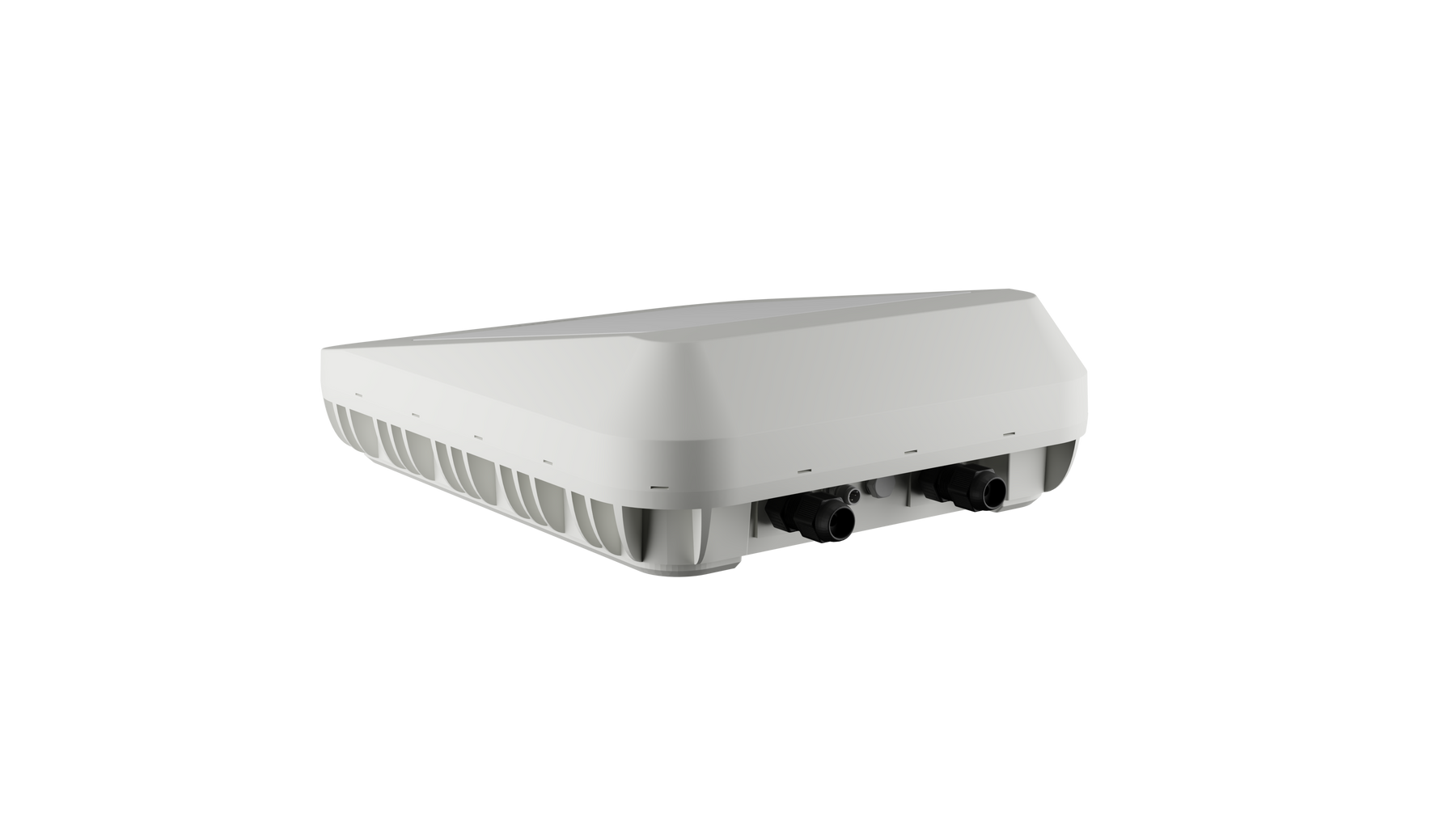

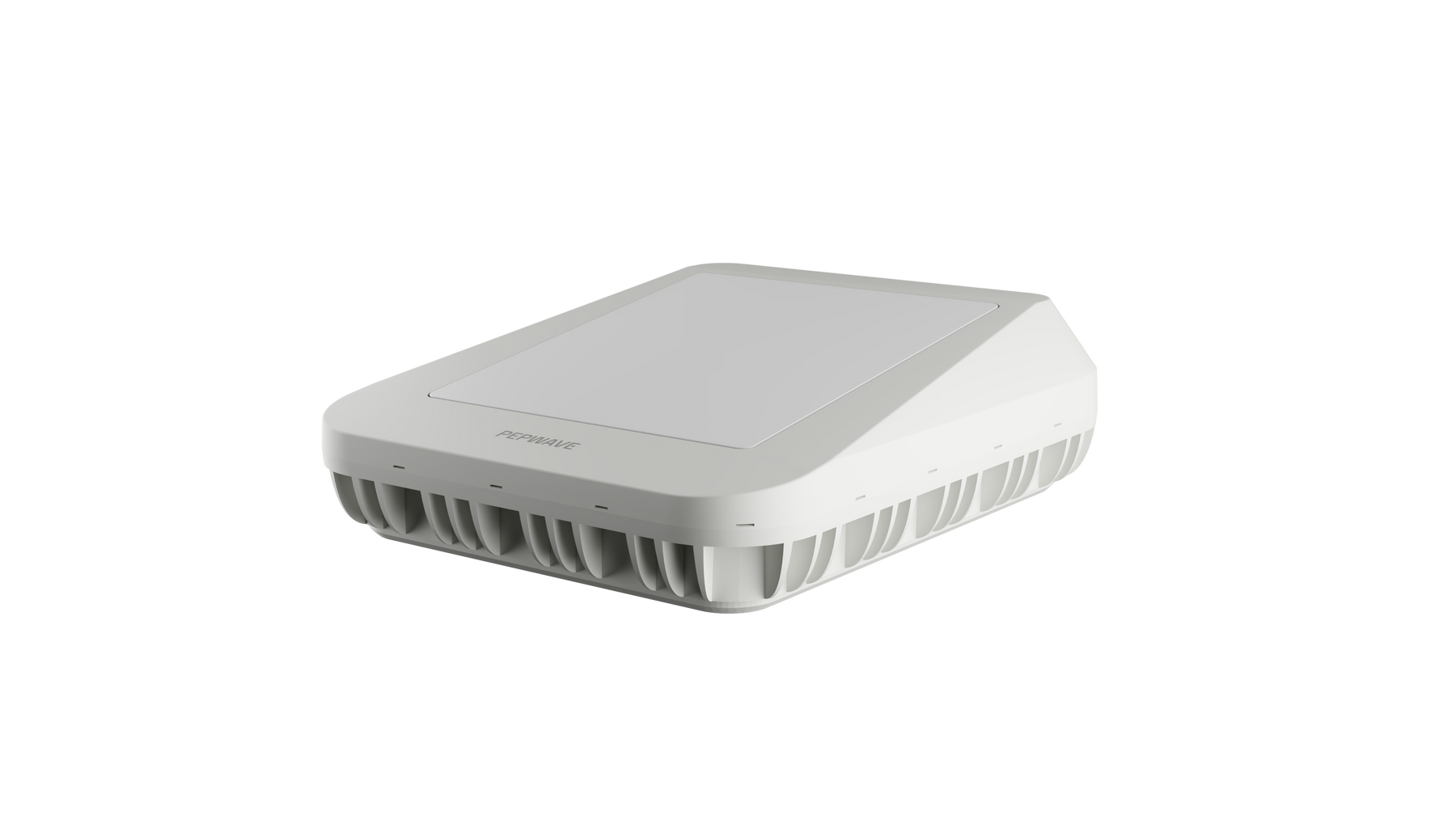

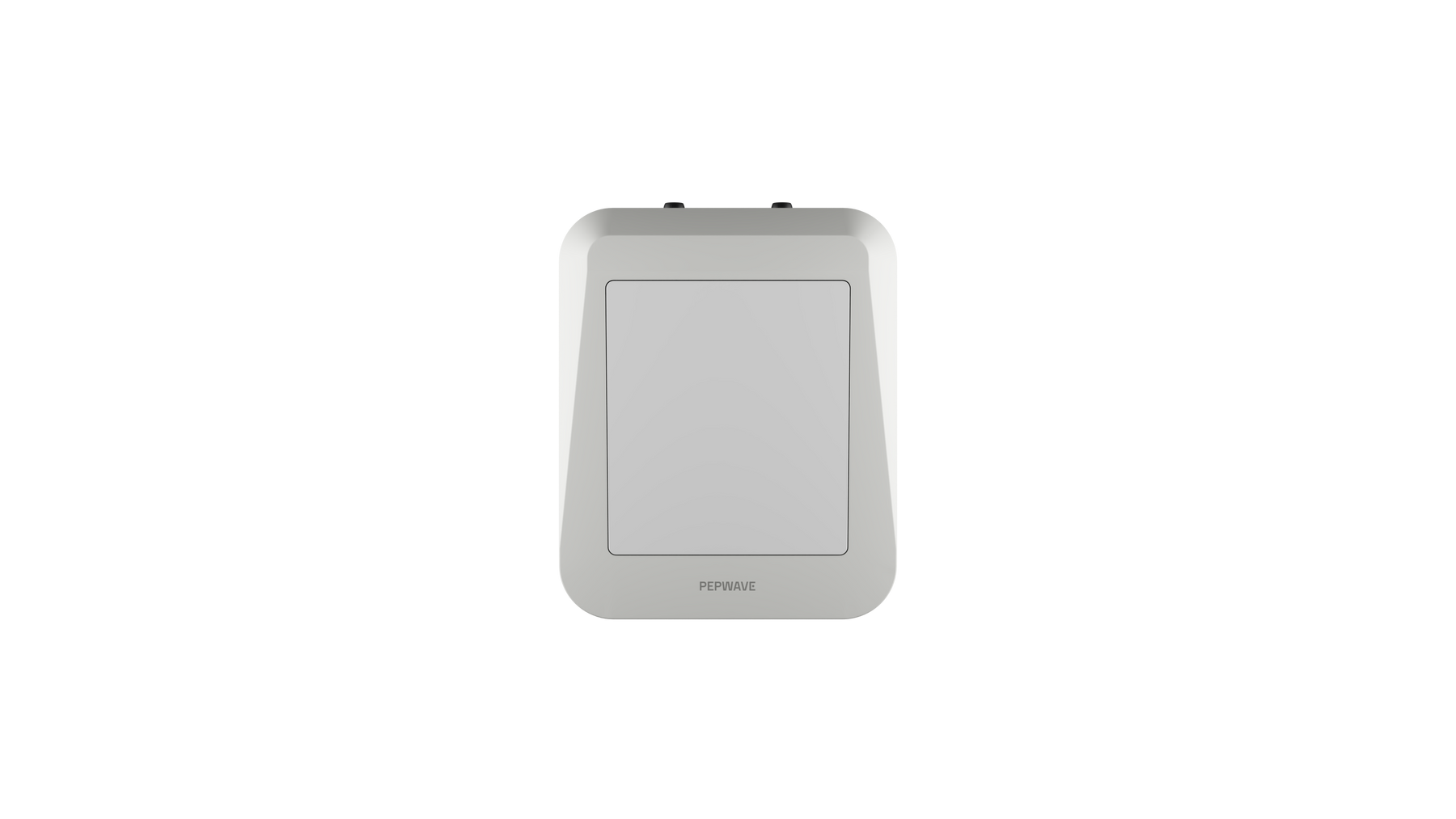

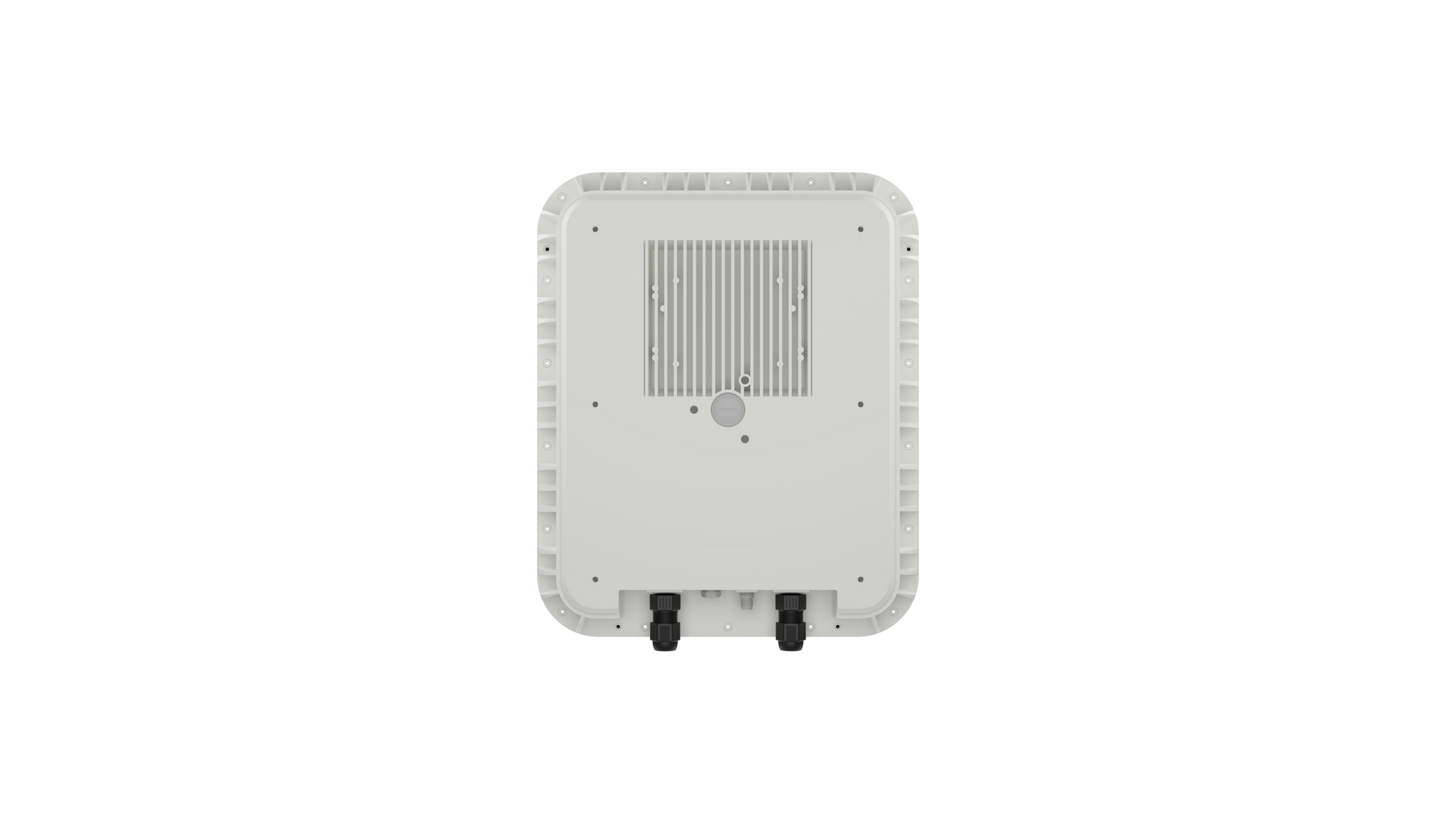

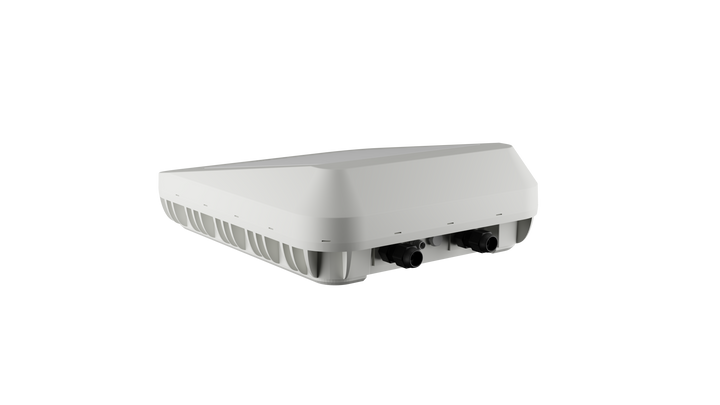

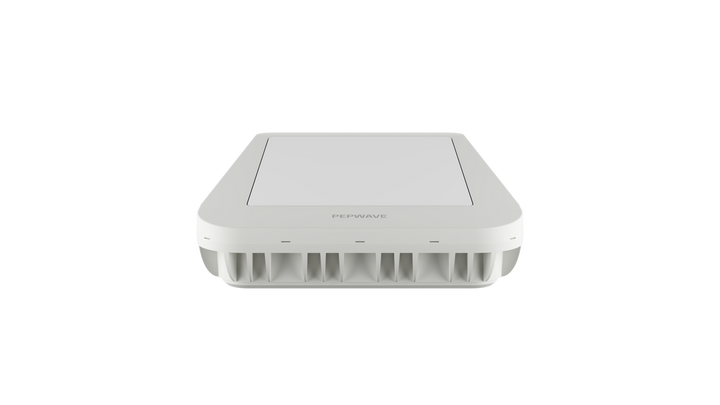

Peplink Antenna MAX S Enclosure for Peplink and Starlink Mini

A Complete External Antenna + Router + Starlink Mini Solution

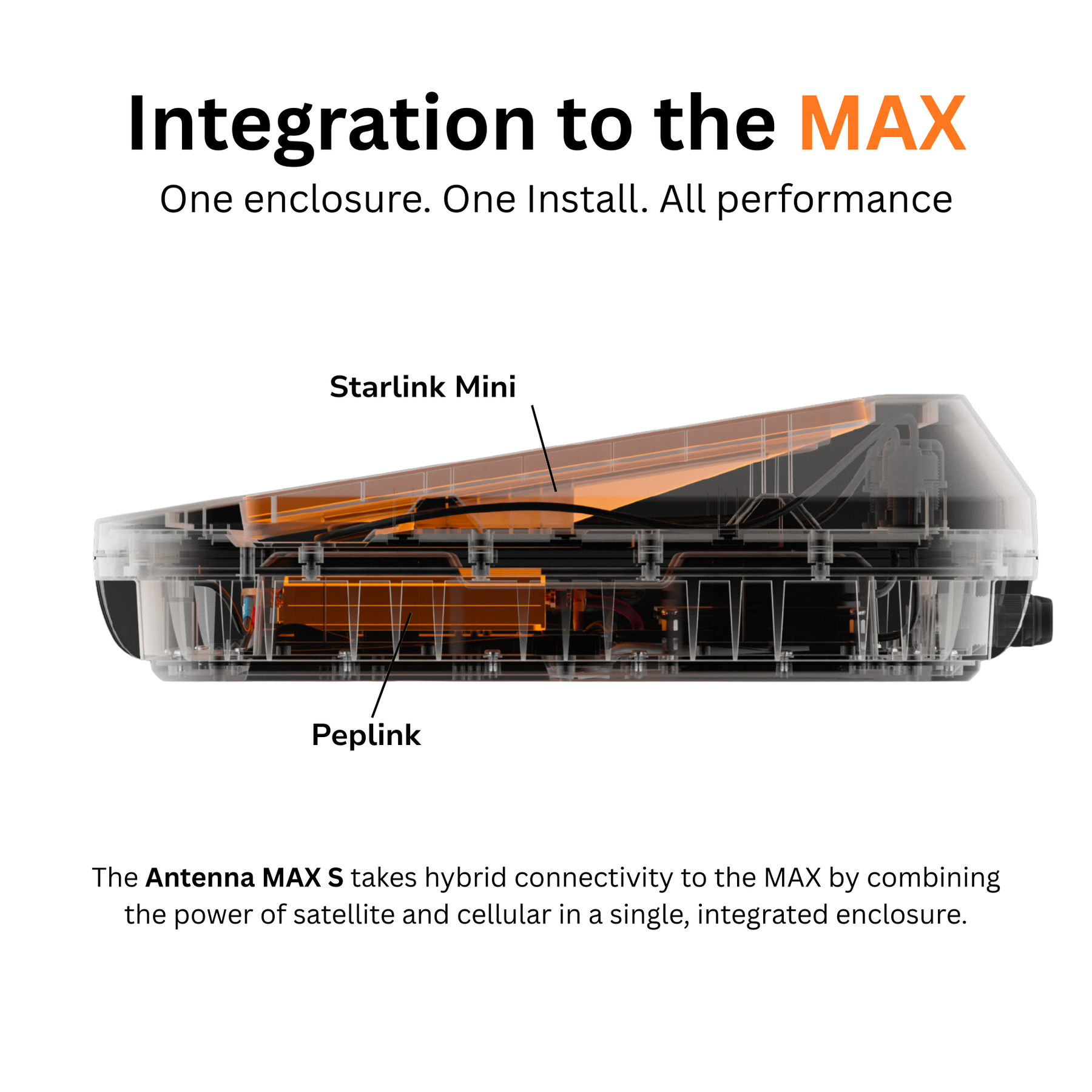

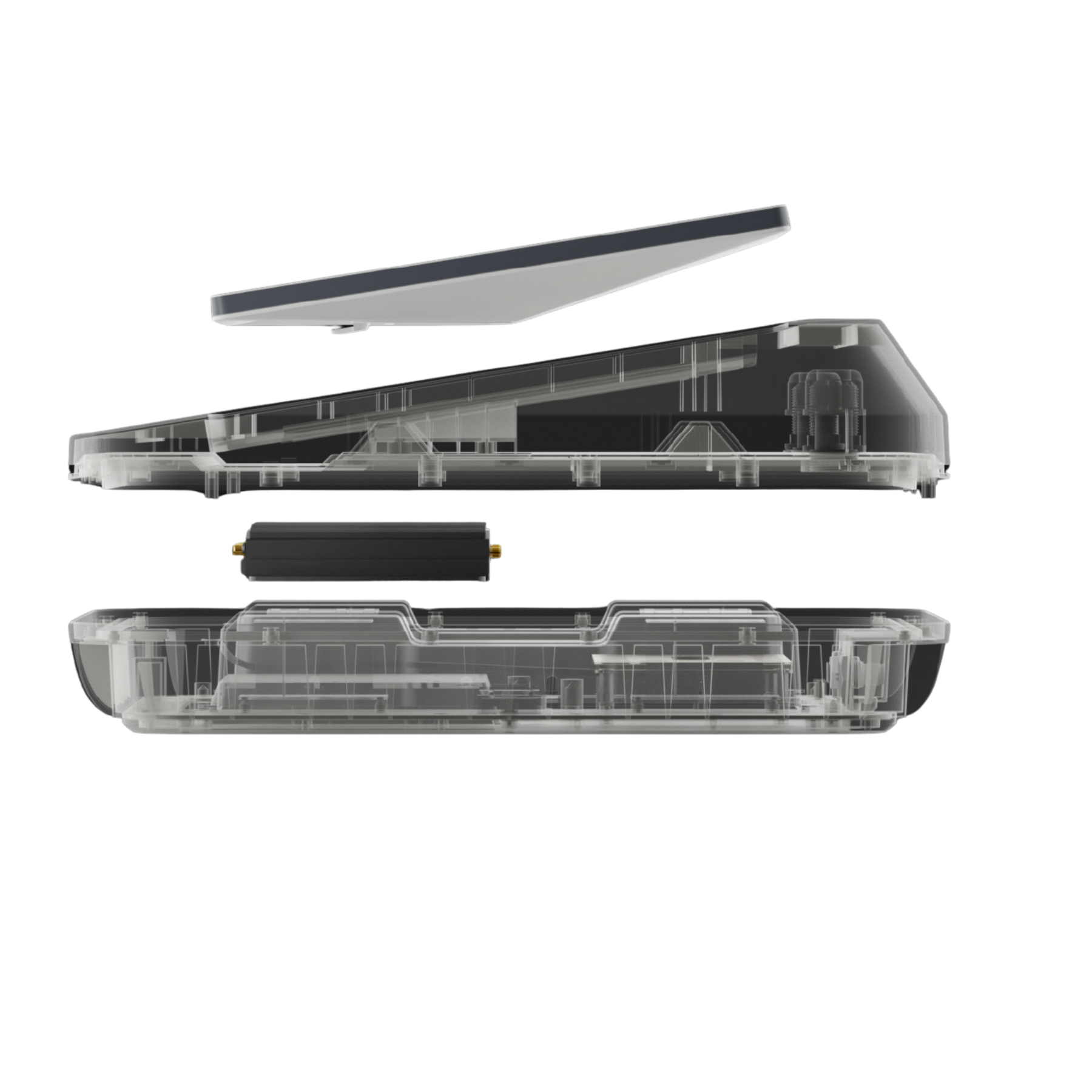

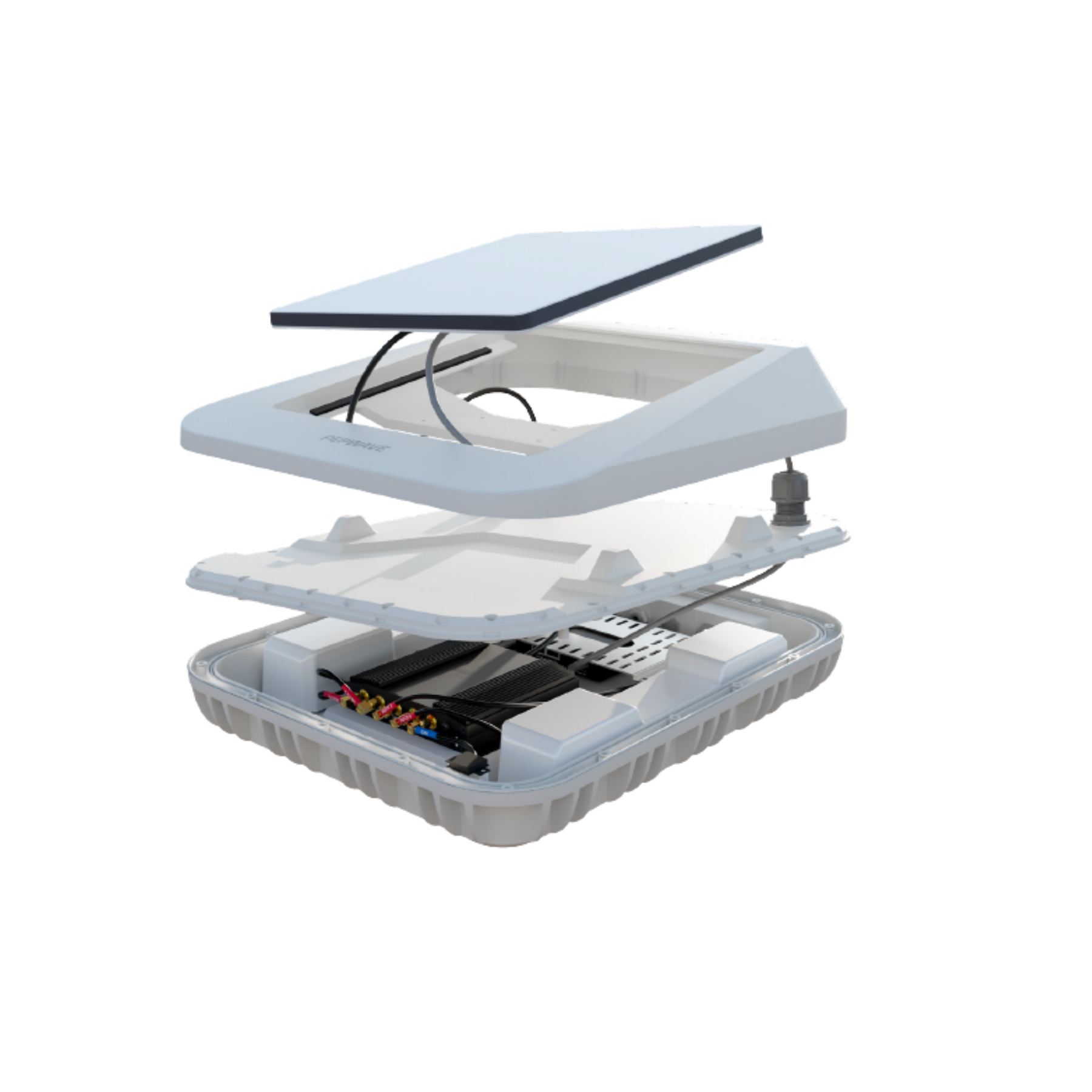

The Peplink Antenna Max S is a rugged, weatherproof enclosure that combines powerful antennas with the ability to house your Peplink router and Starlink Mini in one package. Designed for RVers, boaters, and mobile professionals, it minimizes cable loss, boosts signal quality, and simplifies your internet setup.

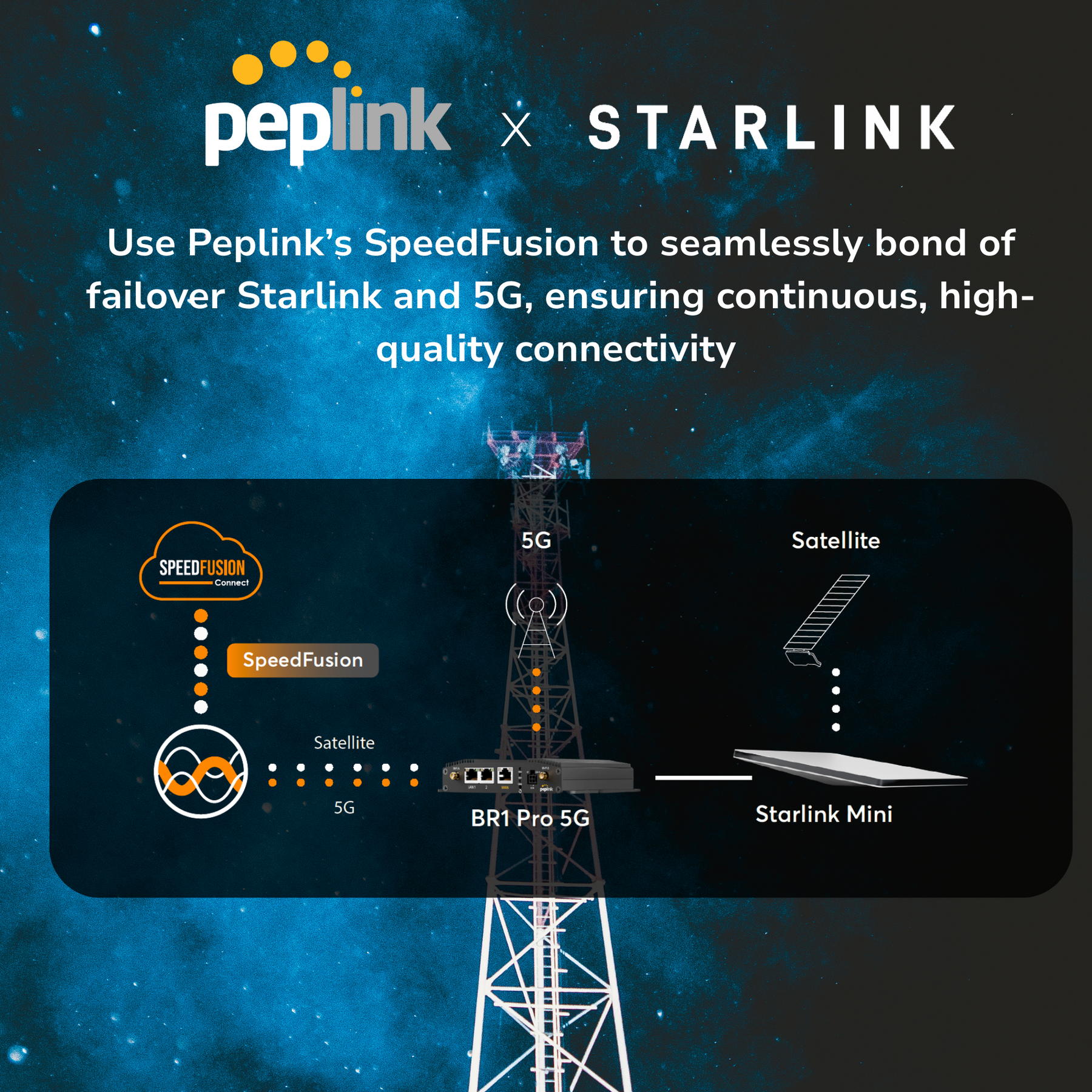

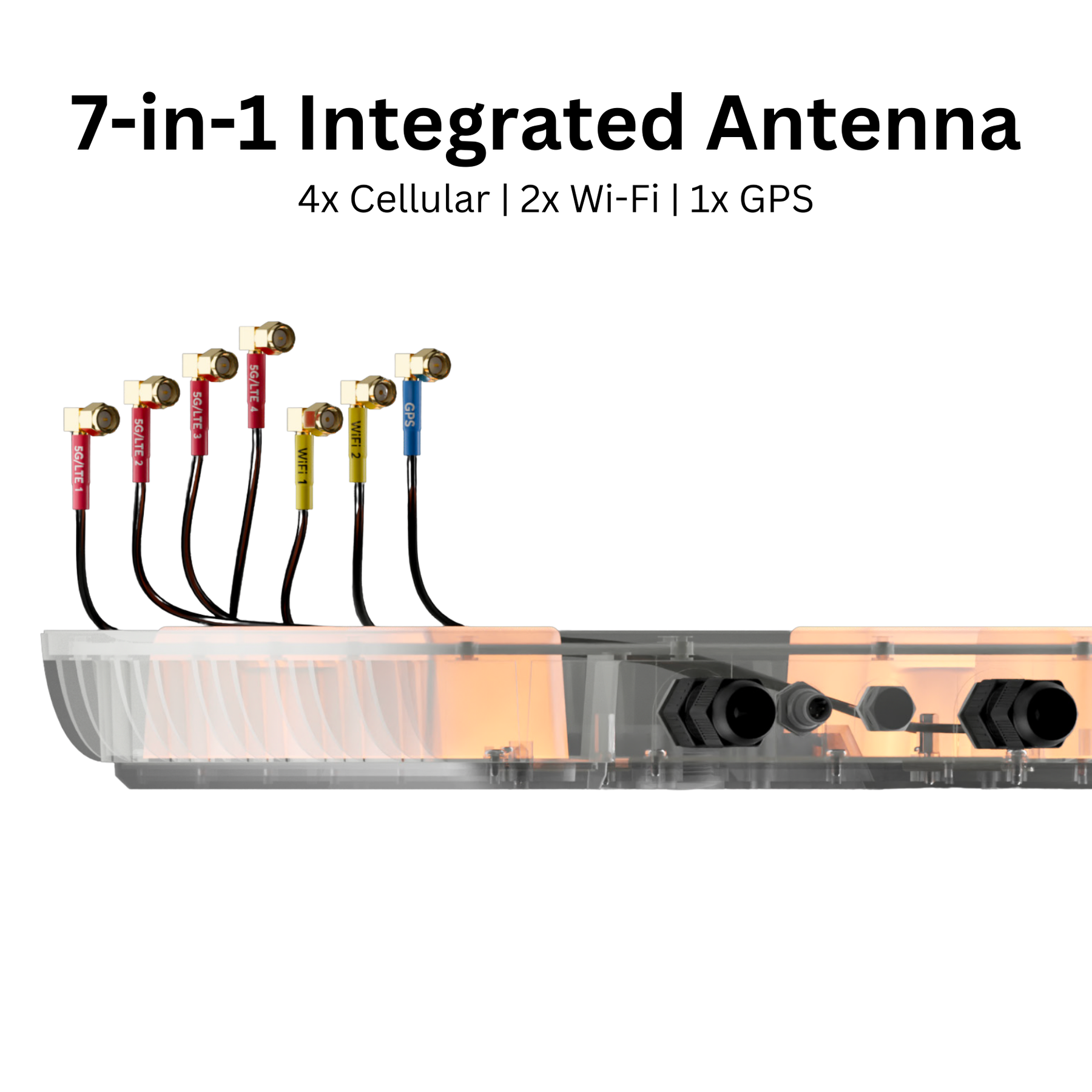

With 7 integrated antennas supporting 5G, 4G LTE, WiFi, and GPS, the Antenna Max S delivers reliable connectivity from the roof of your RV or marine vessel. It can run as a standalone solution or be added into an existing Peplink setup using Synergy Mode, giving you extra cellular capacity plus Starlink in one streamlined install.

Why RVers Will Love It

• All-in-one roof solution – Router + antennas + Starlink Mini together, no extra box inside your RV.

• Better performance – Enclosing the router at the antenna reduces cable loss and improves signal gain.

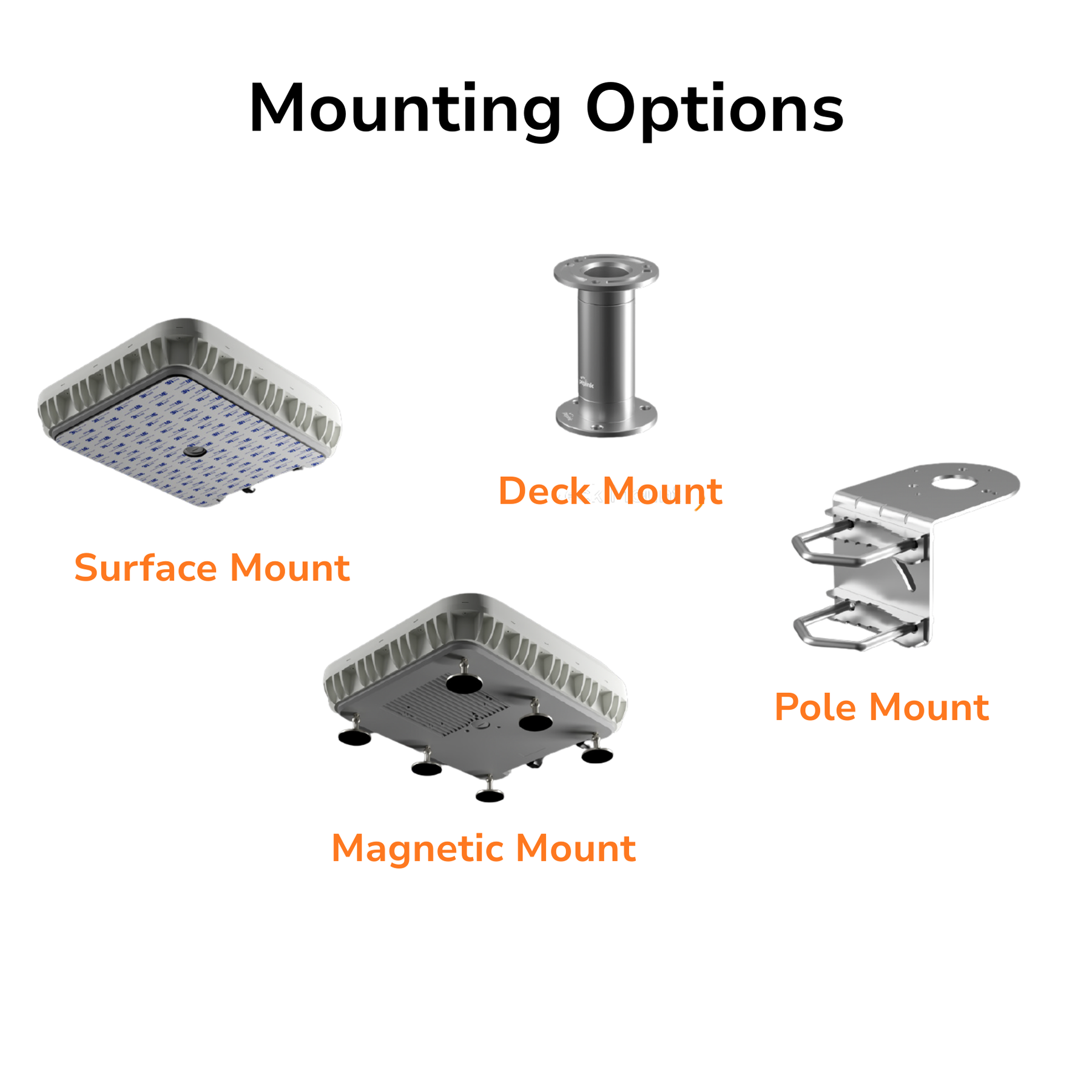

• Easy installation – Pole or surface mount options, with included hardware.

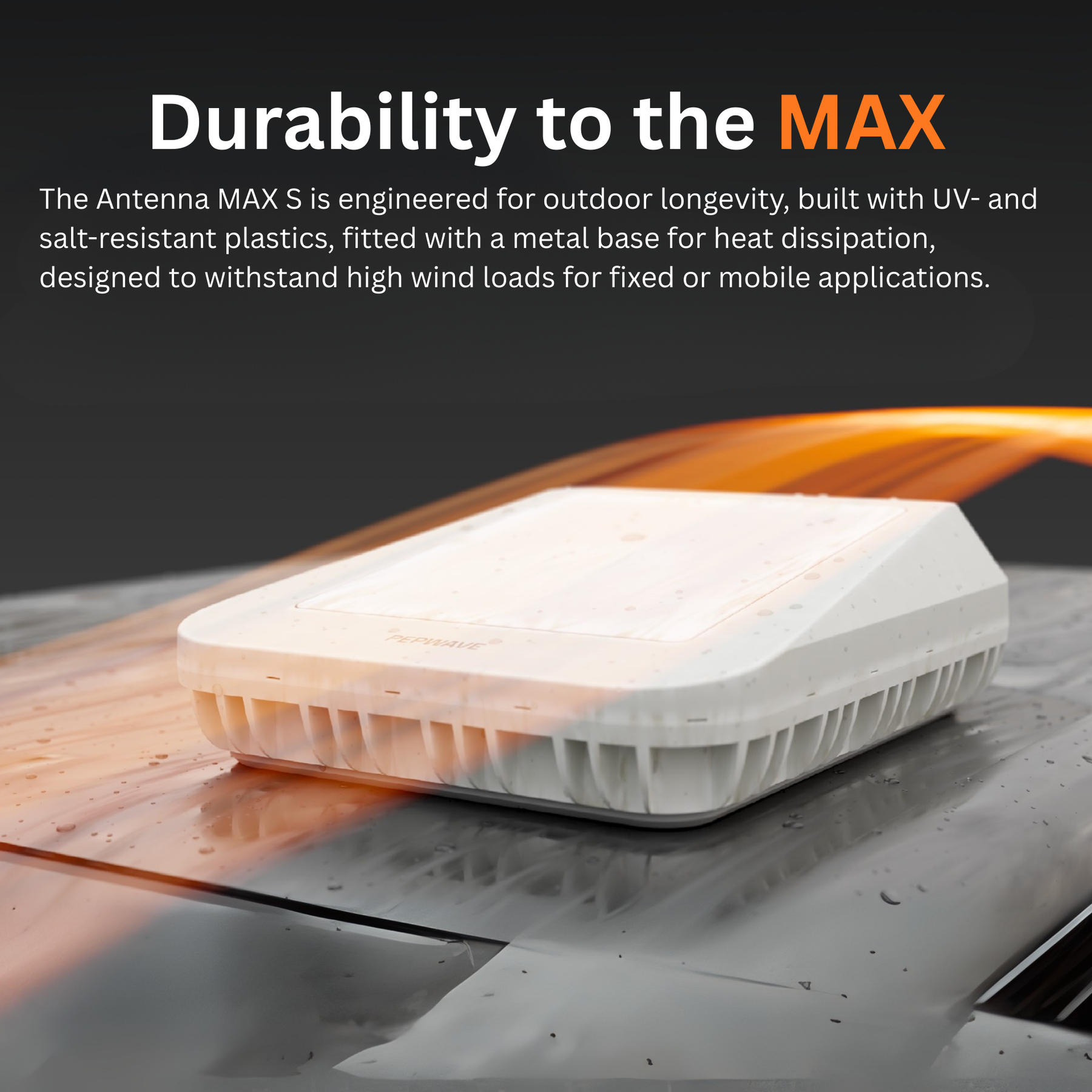

• Built for the road – IP67-rated and UV-resistant housing stands up to rain, sun, salt, and rough travel.

Powering the Antenna Max S

Most RVs only have 12V power available, so to run the Antenna Max S you’ll need to convert that into the 90W PoE+ (802.3bt standard) required by the system.

Here’s how it works:

1. 12V to 90W PoE Injector (outside the antenna)

   • Converts your RV’s standard 12V power into 90W Power over Ethernet.

   • Sends both power and data up a single Ethernet cable to the Antenna Max S.

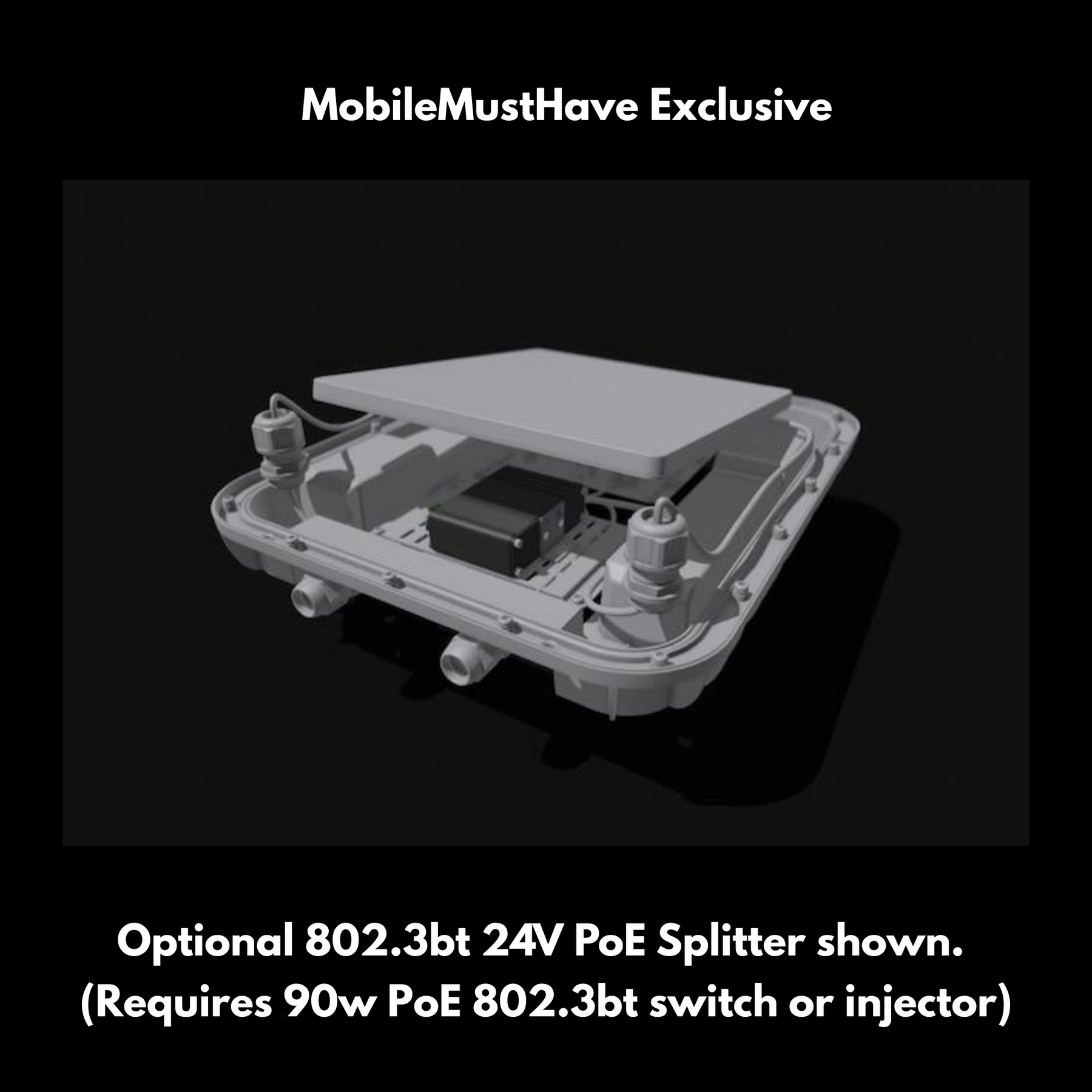

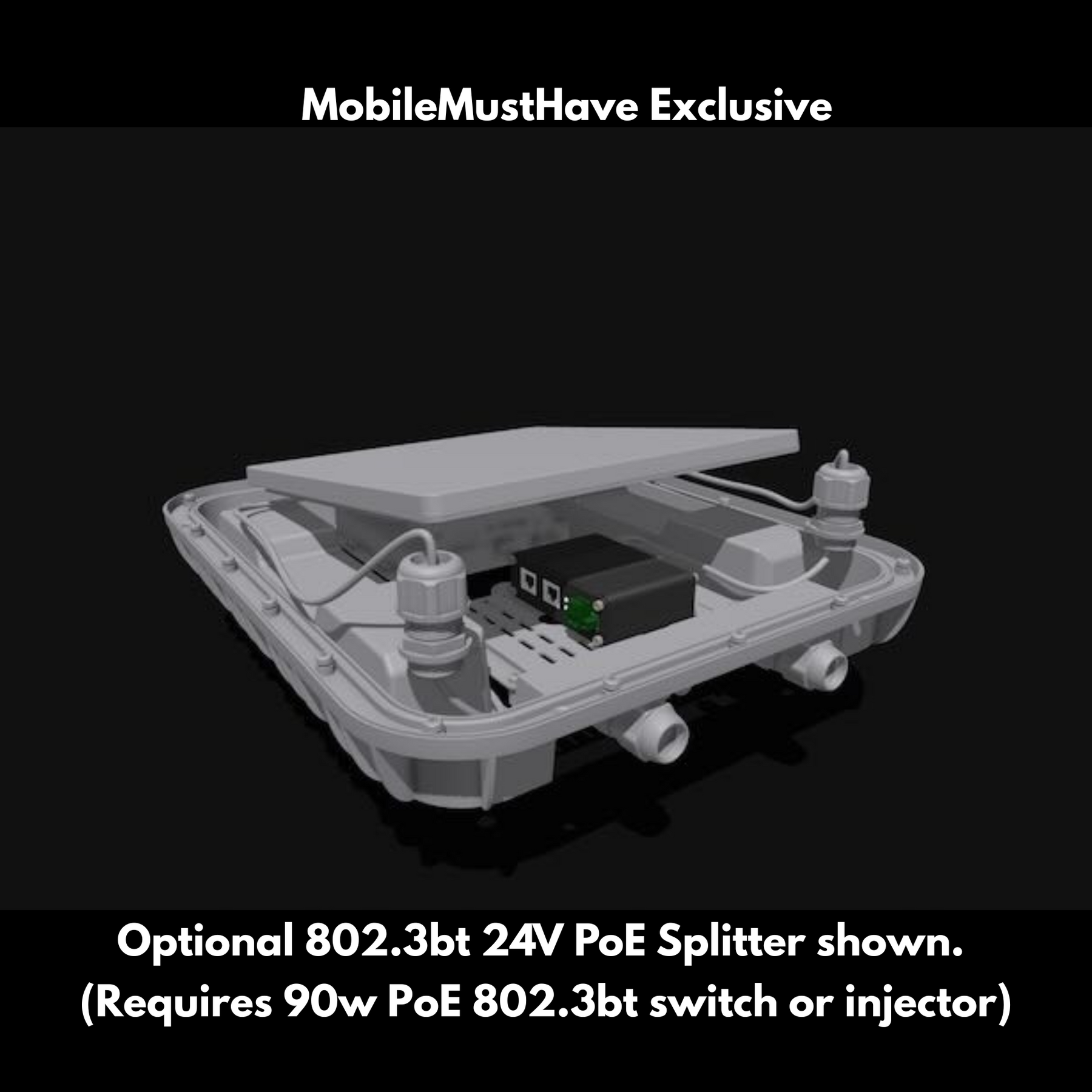

2. 90W PoE Splitter (inside the antenna)

   • Splits that 90W into:

     • Power for the Peplink router (via PoE)

     • Power for the Starlink Mini (via dedicated output)

👉 Together, the injector + splitter ensure your Peplink router and Starlink Mini inside the enclosure both get the power they need.

Important Notes:

• You must use 802.3bt (90W) PoE hardware — standard PoE (802.3at or lower) will not work.

• If you already run higher-voltage DC power (like 24V), you can still use the suggested injector — it accepts up to 48V input and upconverts to 90W.

What You’ll Need (Not Included)

To set up the Antenna Max S, you’ll need:

• Compatible Peplink Router (see list below)

• Starlink Mini

• Power Solution

  • Most RV installs: use our 12V to 90W PoE Injector + Splitter kit (recommended).

  • The injector converts your RV’s 12V (or up to 48V) DC power into 90W PoE (802.3bt), sending power and data up a single cable.

  • The splitter (inside the antenna) distributes that 90W to both the Peplink router and the Starlink Mini.

  • Note: Standard PoE (802.3at or lower) will not work.

Compatible Peplink Routers:

• BR1 Mini Series

• Transit Series

• BR1 Pro Series

Technical Specifications

• Cellular: 4x4 MIMO, 600–6000 MHz, Band 71 & Band 14 supported

• WiFi: 2x2

• GPS: 1x dedicated receiver

• Housing: UV-stable, IP67-rated, pole/surface mountable

• Build: Salt-spray and corrosion resistant

• Power: 12–30V DC direct or 802.3bt 90W PoE

What’s in the Box

• Antenna Max S unit

• L-Mount set

• Power/splitter mounting set

• Router fixation screws

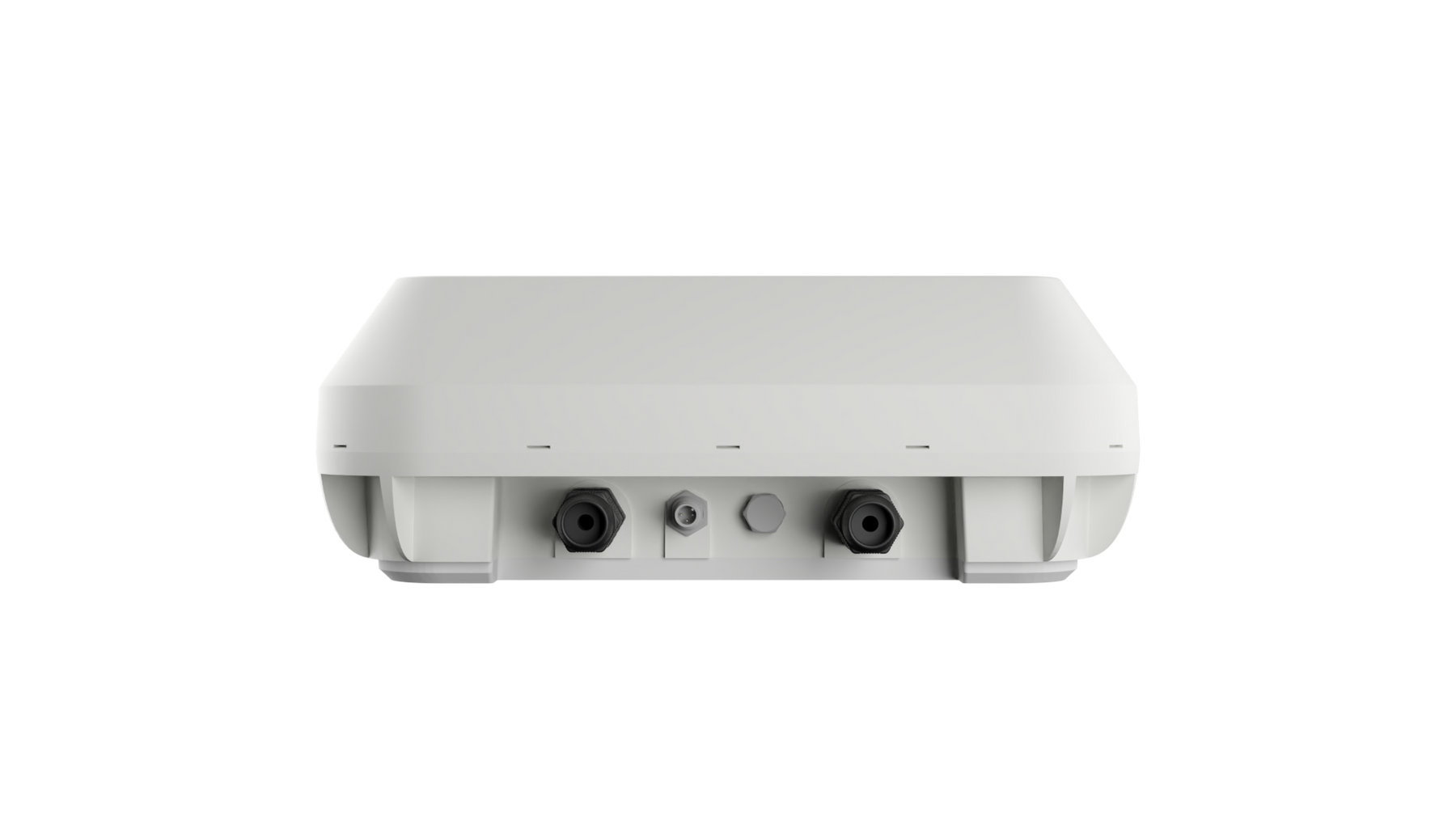

• Cable glands and plugs

• RJ45 glands and caps

• Starlink Mini power cable (31” / 80cm)

• Starlink Ethernet cable (31” / 80cm)

• Double-sided 3M adhesive pad

Key Takeaways

• For RVers: Treat this as an “all-in-one roof pod” – just add your router + Starlink Mini and run power.

• For IT pros: You’ll appreciate the 4x4 MIMO design, IP67 housing, and proper 802.3bt PoE implementation.

• For everyone: This product removes the hassle of mixing antennas, routers, and Starlink – it’s all in one sleek unit.

Specifications:

• 4x4 MIMO 5G-ready cellular antenna system
• 2x2 WiFi Antennas
• 1x GPS receiver
• Cellular frequencies 600-6000 MHz
• Band 71 Support, Band 14 Support
• Durable and UV-stable housing
• Supported Mounts - Surface, Pole
• IP67 rated

Antenna Package Includes:

• Antenna MAX S
• L-Mount Set
• Power supply/splitter mounting set
• Router fixation screws
• 3pcs M25 cable glands
• 1pcs M25 hole plug
• 2pcs RJ45 glands
• 2pcs RJ45 caps
• 2pcs Hole plug
• 1pcs Starlink power cable (31" / 80cm)
• 1pcs Starlink Ethernet cable (31" / 80cm)
• 1pcs Double-sided 3M adhesive pad
