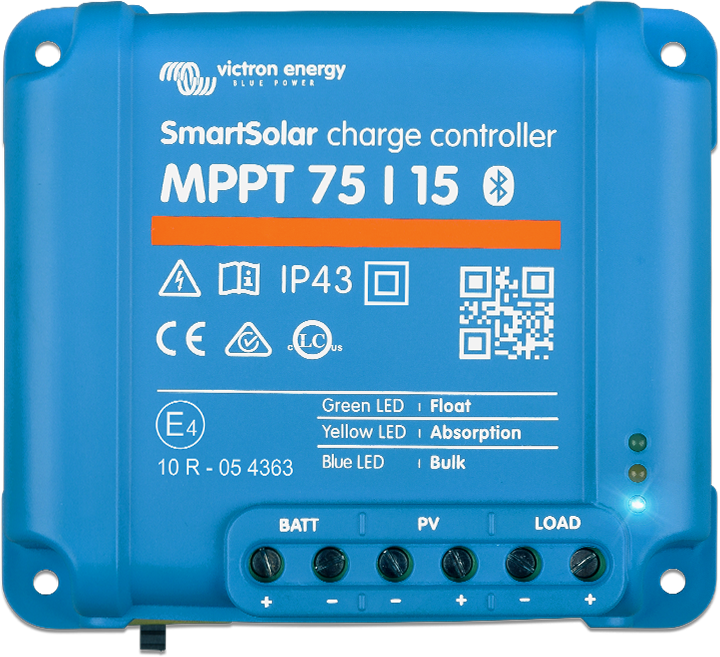

Victron SmartSolar MPPT 75/15
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
| Battery Voltage Auto Select | 12V / 24V ( |
| Rated Charge Current | 15 A |
| Nominal P Vpower12 V | 220 W |
| Nominal P Vpower24 V | 440 W |
| Charge Voltage Absorption | 14.4V / 28.8V (adjustable) |
| Charge Voltage Float | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Max Efficiency | 98 % |
| Selfconsumption Load On | 12V: 19mA / 24V: 16mA |
| Selfconsumption Load Off | 12V: 10mA / 24 V: 8mA |
| Max P V Open Circuit Voltage | 75 V |
| Start Up P V D C Voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Number Of Trackers | 1 |
| Max P V Short Circuit Current | 15 A |
| Max Continuous Load Current12 | 15 A |
| Max Continuous Load Current24 | 15 A |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Low Voltage Load Reconnect | 13.1V / 26.2V or 14V / 28V or Battery Life algorithm |
| Protections | Automatic load disconnect,Excessive temperature,Output short-circuit,PV reverse polarity |
| Max Humidity | 95 % |
| Bluetooth | true |
| Data Communication | Bluetooth,VE.Direct |
| Colour | Blue (RAL 5012) |
| Protection Category | IP43 (electronic components) |
| Weight | 0.5 kg |
| Height | 100 mm |
| Width | 113 mm |
| Depth | 40 mm |
| Safety | UL 1741,CSA C22.2,EN-IEC 62109-1 |
| Data Retention Period | 46 d |
| Data Stored | Battery voltage,Battery current,Battery temperature,Battery state of charge percentage,Battery midpoint deviation,Starter battery voltage,Load output Current,PV voltage,PV current |
