Part Number: BPC121545102
Availability:
Shipping: Free Shipping on orders over $199

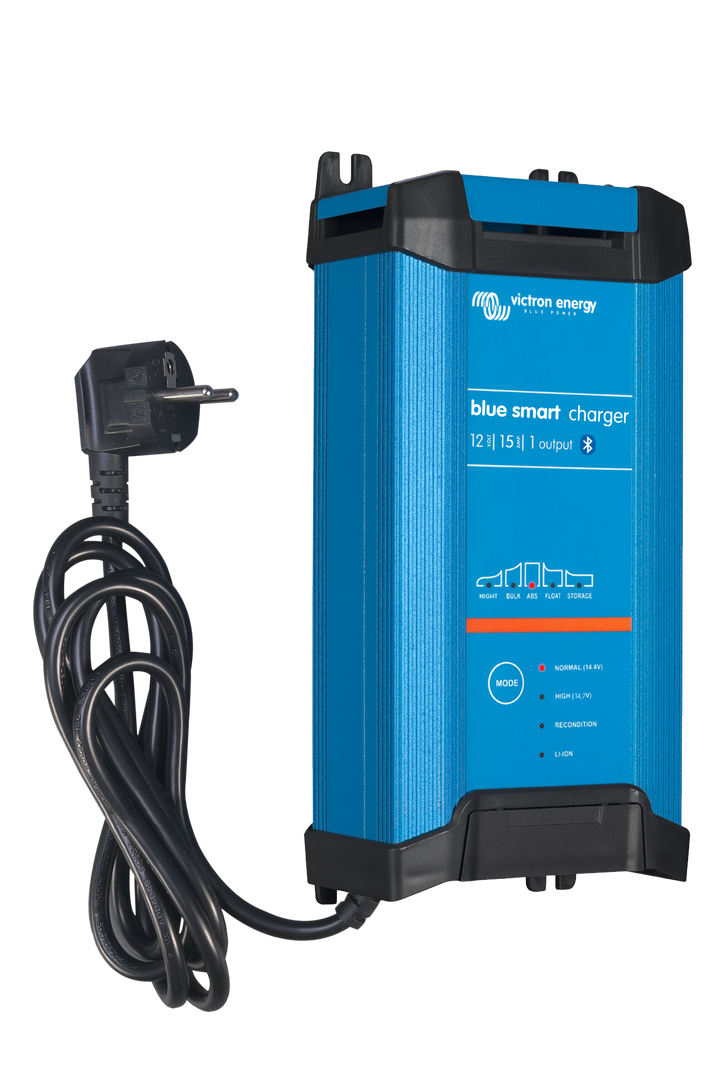

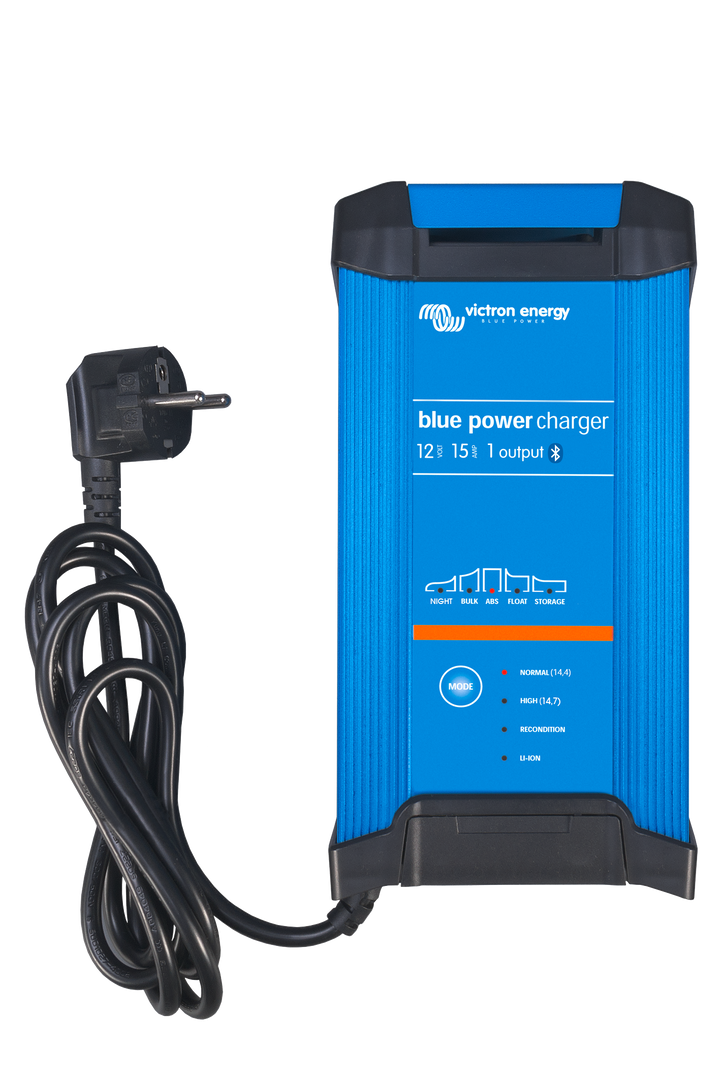

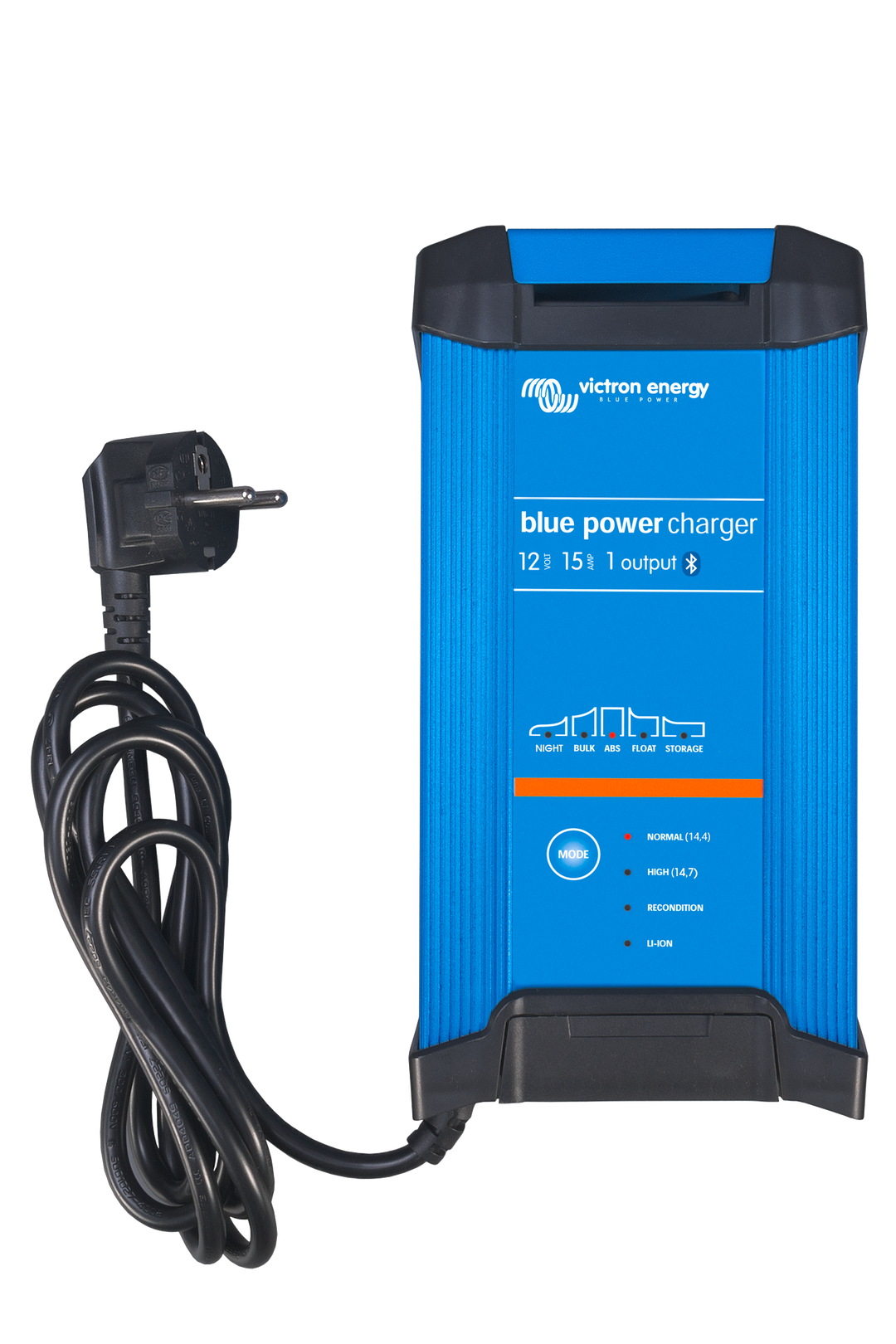

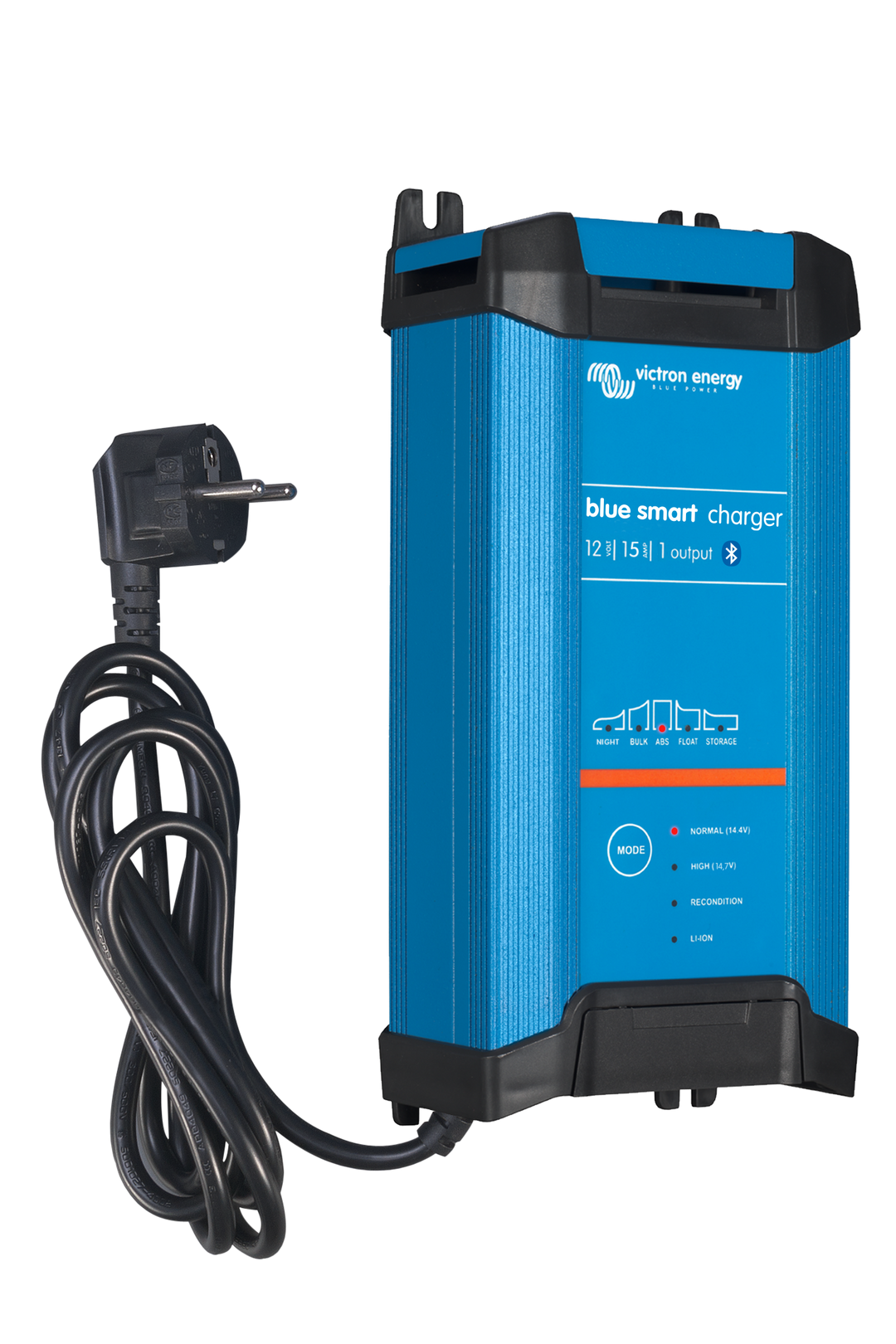

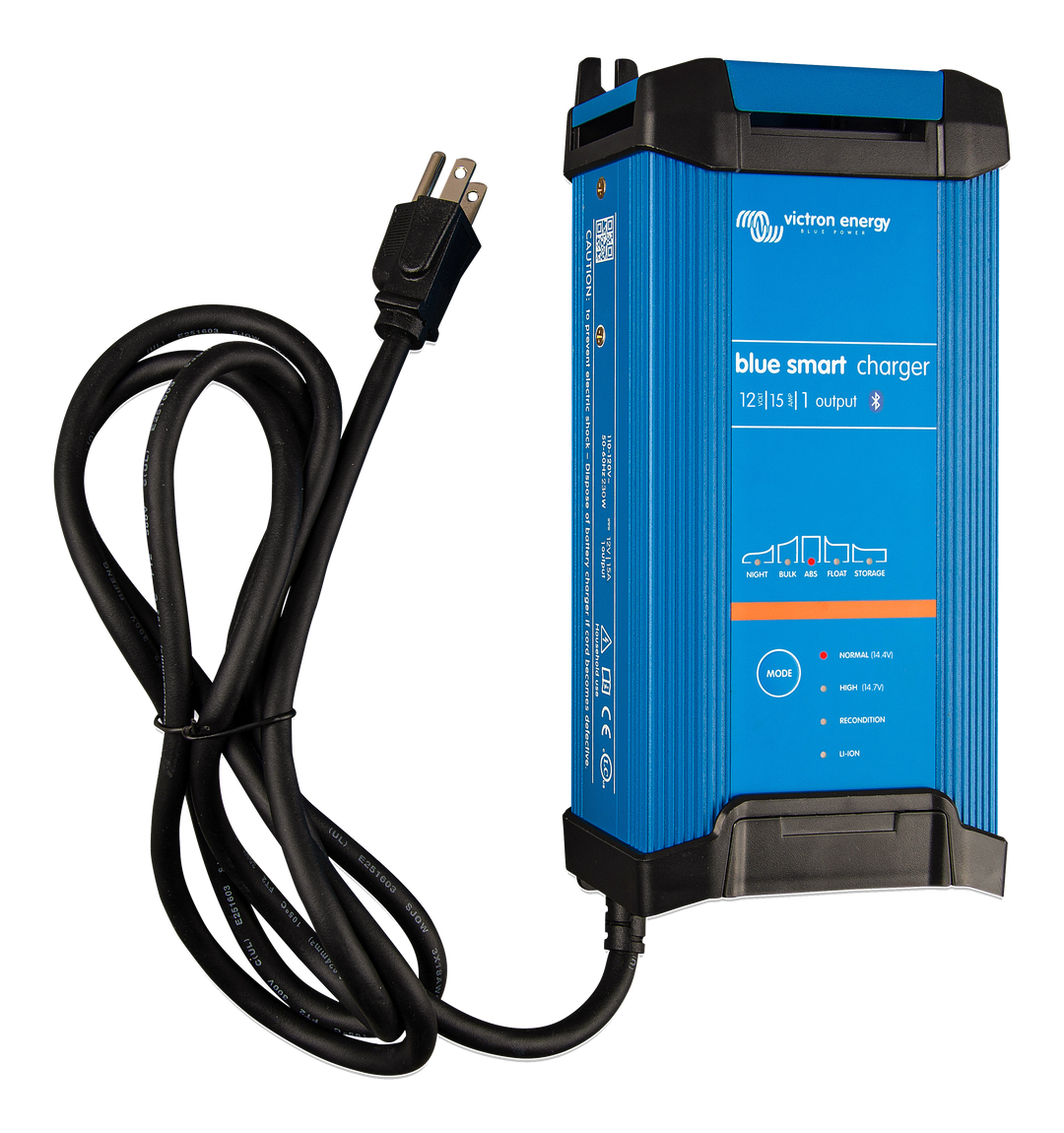

Victron Blue Smart IP22 Charger 12V 15A - Bluetooth Ready
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
| Battery Voltage Nominal | 12 V |
| Charge Current Normal | 15 A |
| Charge Current Low | 7.5 A |
| A C Input Voltage Range | [100, 130] VAC |
| Ac Input Frequency Range | [45, 65] Hz |
| Efficiency | 93 % |
| No Load Power Consumption | 0.5 W |
| Number Of Charge Outputs | 1 |
| Charge Voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge Voltage Float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge Voltage Storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Charge Algorithm | Adaptive, 6-stage |
| Lithium Compatible | true |
| Bluetooth | true |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Forced Cooling | true |
| Communication Ports | Bluetooth |
| Can Be Used As Power Supply | true |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| Programable | true |
| Max Humidity | 98 % |
| Ac Connection Terminal Type | Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug |
| Material | Aluminium |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 |
| Weight | 1.3 kg |
| Height | 235 mm |
| Width | 108 mm |
| Depth | 65 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,CSA C22.2,UL 1236 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-3-3 |
| Automotive Directive | ECE R10-5 |
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
| Battery Voltage Nominal | 12 V |
| Charge Current Normal | 15 A |
| Charge Current Low | 7.5 A |
| A C Input Voltage Range | [100, 130] VAC |
| Ac Input Frequency Range | [45, 65] Hz |
| Efficiency | 93 % |
| No Load Power Consumption | 0.5 W |
| Number Of Charge Outputs | 1 |
| Charge Voltage Absorption | Normal: 14.4V High: 14.7V Lithium: 14.2V |
| Charge Voltage Float | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
| Charge Voltage Storage | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
| Charge Algorithm | Adaptive, 6-stage |
| Lithium Compatible | true |
| Bluetooth | true |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Forced Cooling | true |
| Communication Ports | Bluetooth |
| Can Be Used As Power Supply | true |
| Protections | Battery reverse polarity (fuse),Output short-circuit,Over temperature |
| Programable | true |
| Max Humidity | 98 % |
| Ac Connection Terminal Type | Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug |
| Material | Aluminium |
| Colour | Blue (RAL 5012) |
| Protection Category | IP22 |
| Weight | 1.3 kg |
| Height | 235 mm |
| Width | 108 mm |
| Depth | 65 mm |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,CSA C22.2,UL 1236 |
| Emission | EN 55014-1,EN-IEC 61000-3-2,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-3-3 |
| Automotive Directive | ECE R10-5 |
