Peplink MAX HD2 Dome Dual Marine Router

Regular price$3,499.00
/
Shipping calculated at checkout.

Part Number: MAX-HD2-DOM-M-LTEA-WF

Availability:

Shipping:  Free Shipping on orders over $199

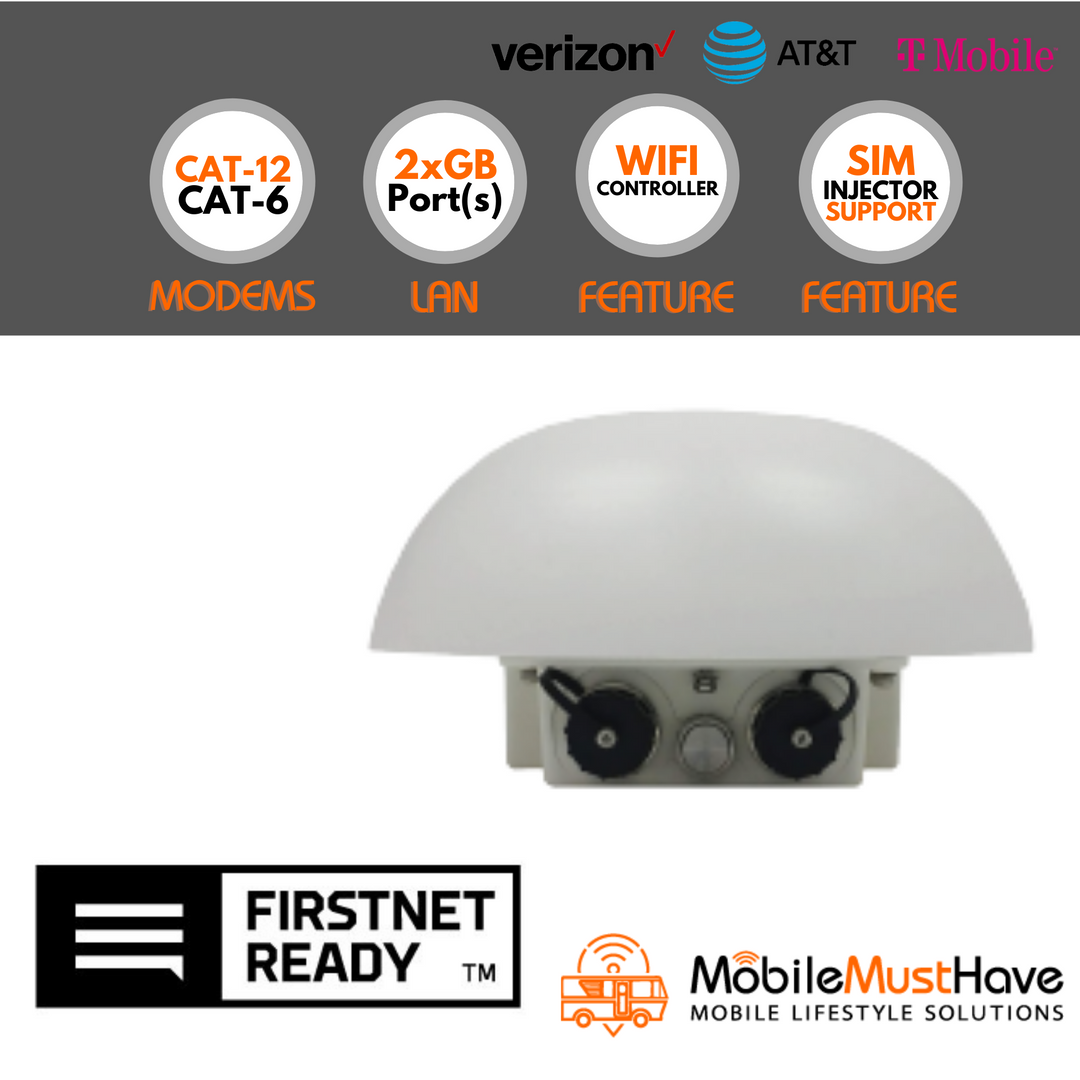

Description:  Dual CAT-12/CAT-6 Modems, 2 Integrated 2x2 MIMO Antennas, Great for Marine


Optional Sim Injector

Expert Device Configuration Service

Additional Warranty & Licenses

EssentialCare
EssentialCare+
Low stock - 0 items left

Need Help?

Reach out to our Nomadic Specialists

  • Free shipping +$199
  • Members save 10%
  • Guaranteed Low Price
  • Satisfaction Guarantee

JOIN NOW & SAVE!

Get Free 2-Day Shipping and 10% off Products and $10 a month of Data Plans

Already a Member? Discounts show in Cart
  • Description
  • Documentation

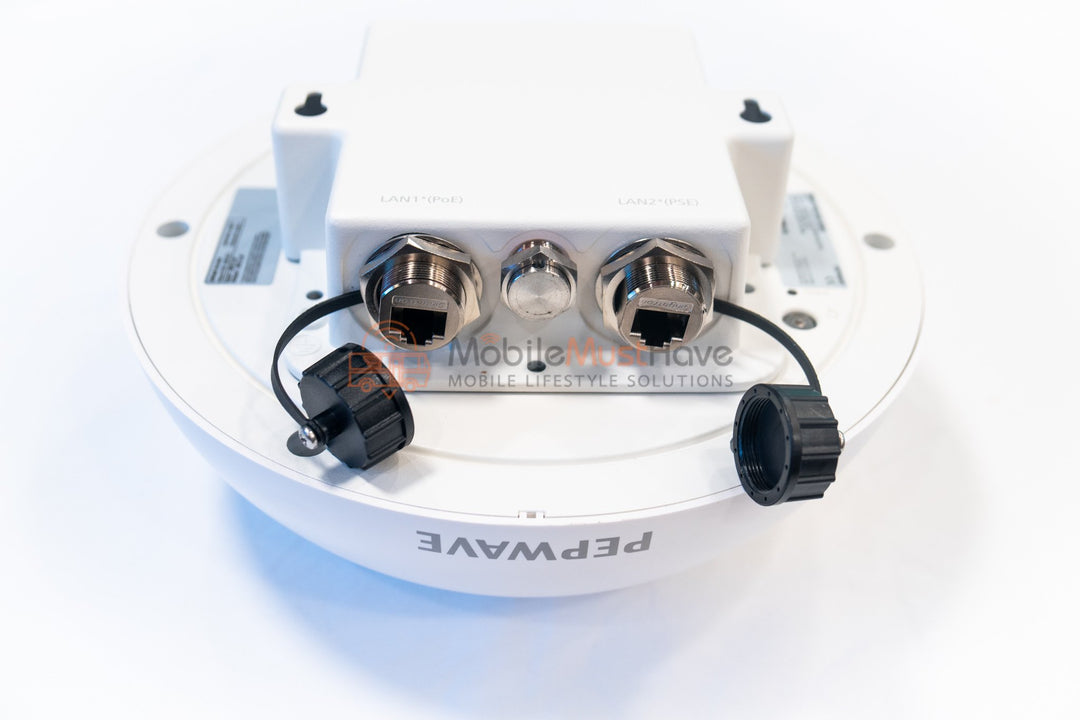

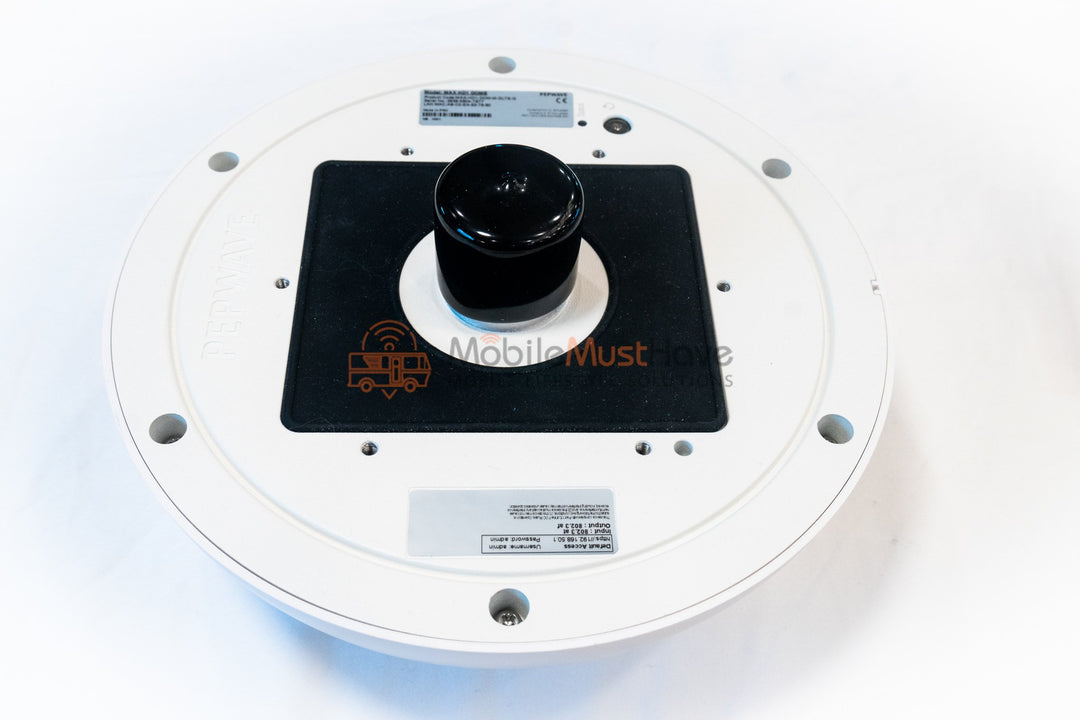

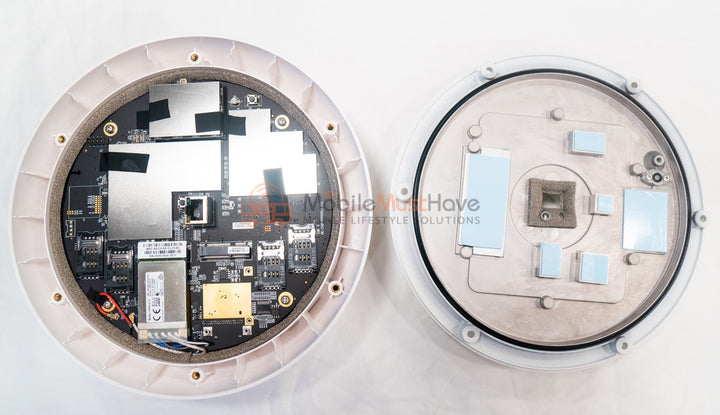

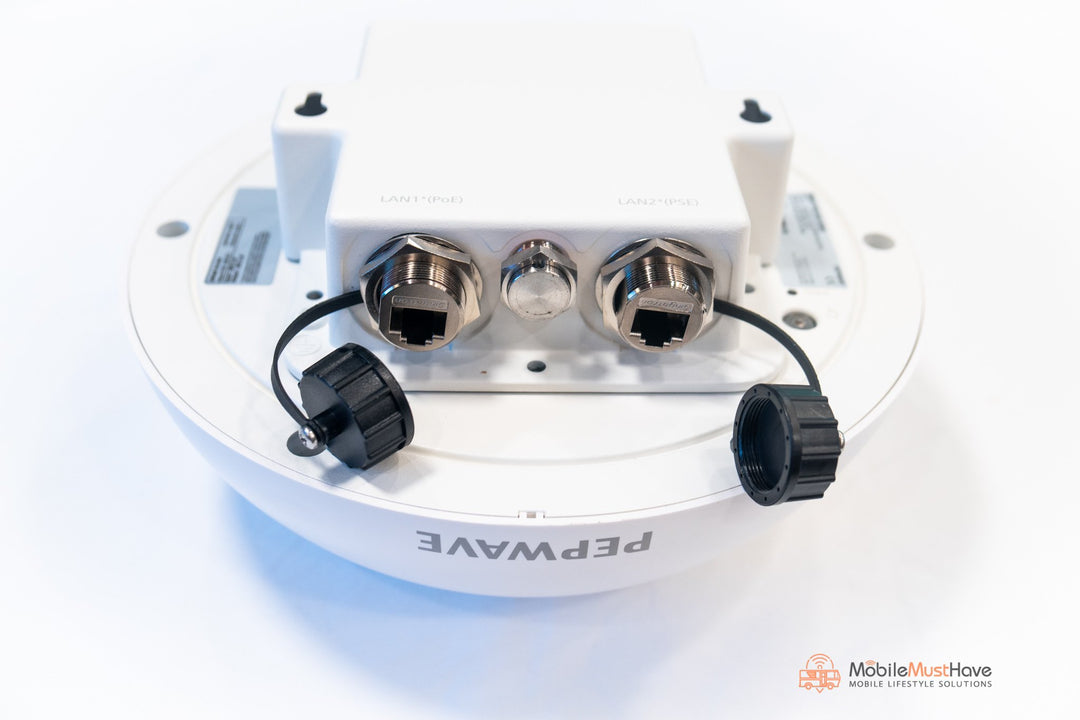

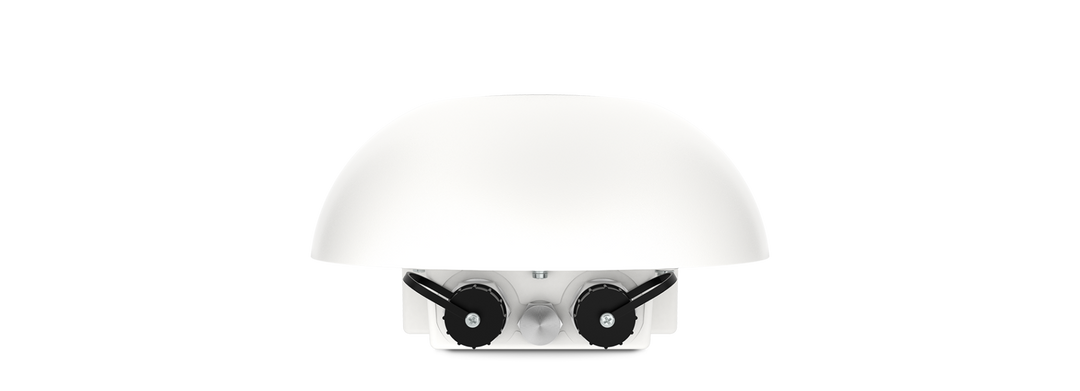

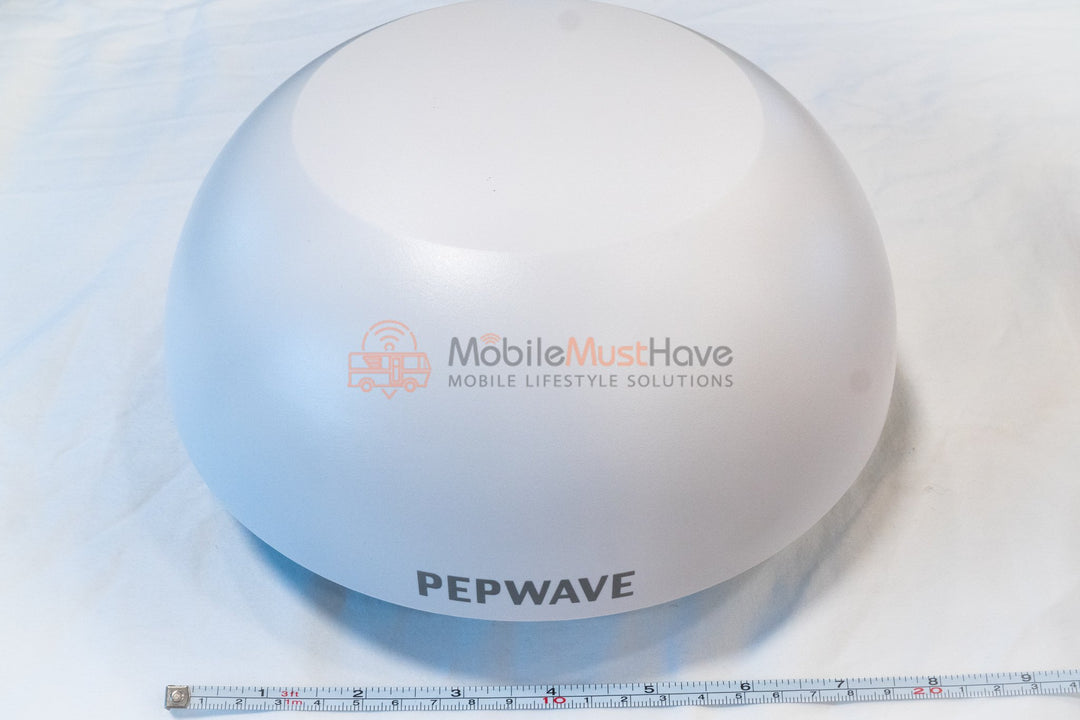

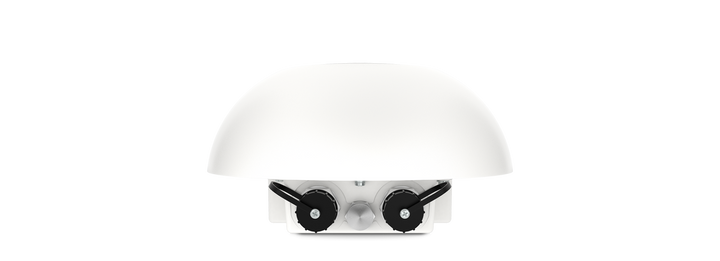

The Peplink HD2 Dome is a industrial grade mobile router that integrates a single CAT-12 modem & Single CAT-6 modem with 2 2x2 MIMO cellular antennas. By integrating the modems and antennas into a single dome enclosure cellular reception is maximized with minimal loss due to antenna cables. The HD2 Dome is a fully functional mobile router complete with all features and functionality of traditional Peplink mobile routers. While the HD2 Dome does not have WiFi capabilities, it does have Peplink's AP Controller allowing it to be paired with Peplink Wireless Access Points such as the AP Mini or AP One AX/LITE providing the user with a centralized cellular, router and wireless management console for easy management. The HD2 Dome must be powered by Power Over Ethernet (PoE) which can be provided by an ethernet switch or by the optional SIM injector which has an integrated switch supplying POE. The Optional SIM Injector includes an integrated 4 port switch and PoE along with providing 8 additional remote sim cards for total flexibility.

The HD2 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports single cellular radios and 4 SIM cards (HD1 supports 2 sim cards). Combine the HD1 Dome with the optional SIM Injector, and the number of SIM cards increases to twelve allowing you to switch sim cards without having to access the dome which may be mounted permanently up high.

When purchasing the HD2 Dome and the SIM Injector at the same time, you get the SIM Injector at a discounted price of $999 (compared to when separate of $1,499).  This price is only available when purchasing together.

For the serious mobile enthusiast the HD2 Dome can be an RV'rs primary internet solution. With 4 onboard sim card slots multiple carrier support is not an issue. We recommend customers pair the dome with a AP One AX or AP One Mini Access Point for local WiFi.  Note this solution will rely on cellular for internet. Campground WiFi or WiFi-As-WAN is not supported natevely in the HD2. For customers who are taking it to the next level and also wish to take advantage of WIFI as WAN, customers can pair the HD2 Dome with a Pepwave Transit CAT 18 or Transit DUO to provide up to 3 concurrent cellular connections. With optional Speedfusion Bonding these multiple SIMs can be combined using Speedfusion bonding for truly unbreakable connectivity.

The HD2 Dome is also highly popular for marine use especially on larger vessels where running long cables throughout is not optimal and would create significant signal loss. The single CAT 5e cable run up to the antenna bridge can make for simplified cable installation with significant improvement to cellular signal reception since no loss is occurring with lengthy antenna wires.

Category 12 Modem

The mobile router is equipped with one or more category 12 LTE Advanced cellular modems with a maximum download speed of 600Mbps and a maximum upload speed of 150Mbps (typical speeds range from 10-75mbps depending on cellular network conditions and coverage). The category of the modem impacts the maximum upload and download speed of the device and what cellular bands or "channels" the device can connect to. Cellular bands act similarly to "channels" on television, each cellular provider broadcasts on specific bands. Category 12 modems support connecting to the primary bands of all major carriers such as Verizon, T-Mobile, Sprint and AT&T and include additional LTE secondary bands for increased speed and coverage in many areas. This includes access to Band 14, AT&T's FirstNET band. For a complete list of bands supported, click the documentation tab for detailed specifications.


Category 12 modems are extremely popular as they blend strong performance and maximum data plan compatibility. Category 12 modems are very popular for mobile workers and for those who consider the internet "mission-critical" (dual modem device recommended). Category 12 modems are capable of video calling, VOIP, streaming,  general internet use, and, when paired with a dual modem capable device, support bonding of multiple cellular connections. See SpeedFusion section for more information.

Get Connected with MMH Data Plans

MobileMustHave is proud to announce we now have high-speed, high GB data plans available exclusively to our customers. Traditional cellular plans available directly from the carriers have data caps that are not suitable for active travelers. We have negotiated the ability to provide high gigabyte cellular data plans that operate on the top national networks. Take the guesswork out of activating other plans that don't work or are not authorized to work on our cellular routers with data plans from MobileMustHave. Our plans are ready to activate when your ready to travel and have no contracts so keep as long as you need and cancel anytime.

FirstNet Ready

This device is FirstNet Ready! FirstNet is the nationwide public safety communications platform dedicated to America's first responders. Being built with AT&T, in public-private partnership with the FirstNet Authority, FirstNet utilizes Band-14, which is reserved for public safety but is also being marketed as available to the public for additional bandwidth capacity. In testing Band-14 has been made available during non-emergency situations to the public to provide additional bandwidth and coverages to customers who have a modem that supports FirstNet's Band-14. Not all modems that support Band-14 are "FirstNet Certified" however they typically can connect to Band-14 in most areas. Information on FirstNet certifications can be found on Specification sheets located on the Documentation Tab. Additional information about FirstNet's use and technology can be found in this article from our friends at the RV Mobile Internet Resource Center.

SmartCare Warranty

Peplink SmartCare optional extended warranty packages provide customers with Incontrol2 cloud management licensing, software updates, firmware updates, and extended factory warranty support with Advanced Replacement support for devices deemed defective by Peplink's warranty support department. SmartCare is a cost effective and convenient way to extend the warranty coverage of your Peplink device for customers who need Advanced Replacement services, and for customer's who have a Peplink device that is out of warranty and require warranty re-instatement. Warranty and license purchases are non-refundable due to manufacturer policies.

  • Technical Support via Support Ticket via Peplink
  • Firmware Upgrades
  • InControl2 Cloud Management
  • Hardware Warranty with Advanced Replacement (a fully-refundable deposit may be required to cross-ship replacement device)
1 Year of EssentialCare Included!

Peplink EssentialCare optional extended warranty packages provide customers with Incontrol2 cloud management licensing, software updates, firmware updates, and extended factory warranty support for devices deemed defective by Peplink's warranty support department. EssentialCare is a cost effective and convenient way to extend the warranty coverage of your Peplink device for customers who do not need advanced replacement support. Note that EssentialCare cannot be purchased for devices outside of existing warranty. Warranty and license purchases are non-refundable due to manufacturer policies.

  • 1-Year EssentialCare included with new Peplink device purchase
  • Technical Support via Support Ticket via Peplink
  • Firmware Upgrades
  • InControl2 Cloud Management
  • Hardware Warranty (requires device to be returned to Peplink prior to replacement being sent out)
Looking for Full Specs?

Looking for the full specifications on this product? Not to worry, they are located above under the "Documentation" Tab just above by the product description.
